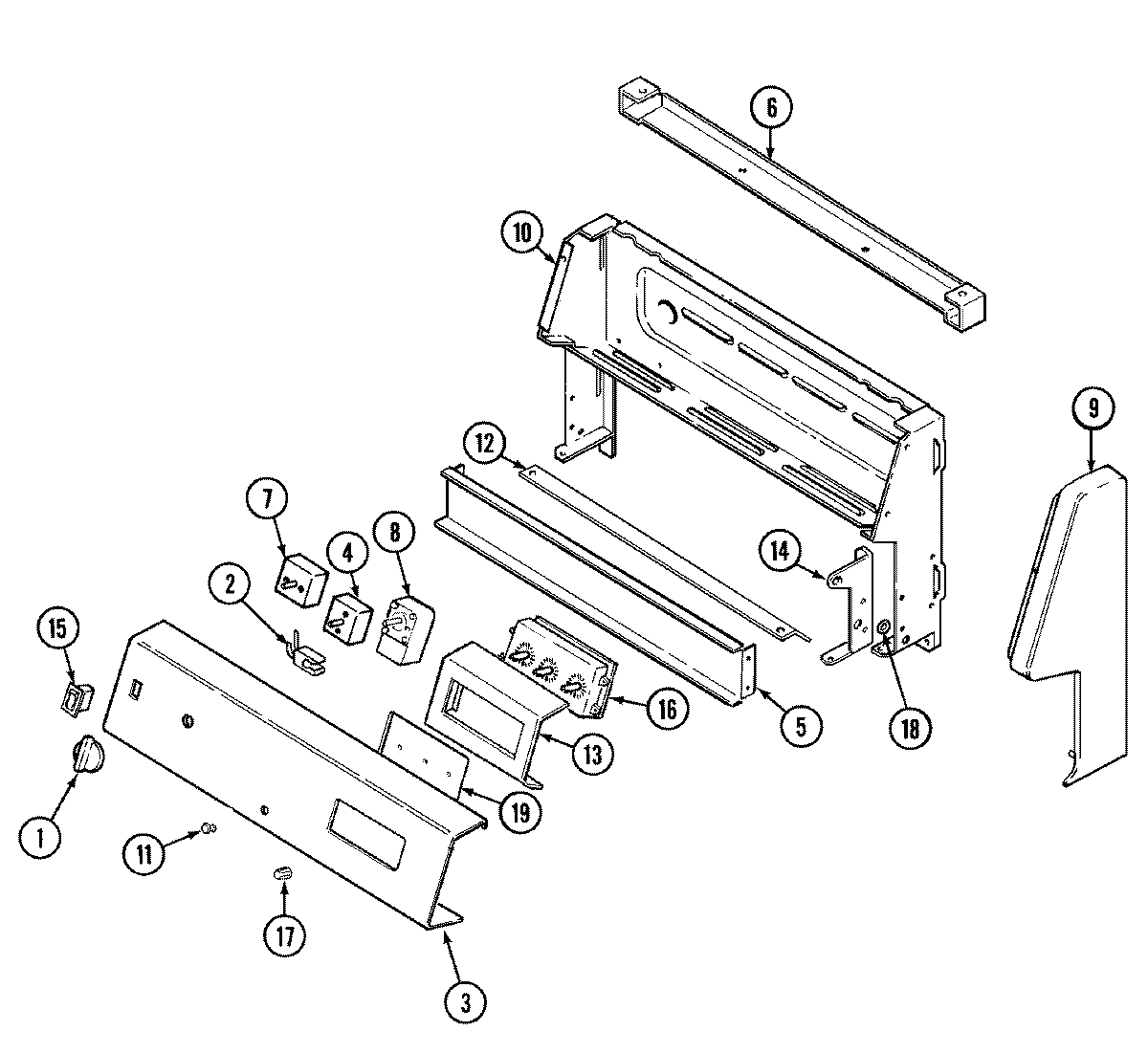

3841SVA-D 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7737P028-60
2	W10852510 Whirlpool Indicator Light
3	MAY 7703P269-60
3	WPY706189 Whirlpool Stove Screw
4	MAY 7403P342-60
5	MAY 3802F088-51
6	MAY 4001F064-51
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	SCREW
8	MAY 7404P100-60
9	MAY 74001342
9	MAY 74001343
10	MAY 4001F091-51
10	SCREW
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 3801F317-45
14	MAY 8114P348-60
14	SCREW (8BX3/8-NI)
14	MAY 3418D097-60
14	MAY 3418D098-60
15	7403P067-60 Whirlpool Light Switch
16	MAY 7601P170-60
16	MAY 7201P056-60
17	MAY 7711P466-60
18	WP3195558 Whirlpool Nut
19	MAY 7902P109-60
20	MAY 5170D188-60
20	MAY 74001013
20	MAY 5195D093-60
20	MAY 74001702
21	MAY 8113P021-60
21	MAY 16000329
21	MAY 8113P038-60
