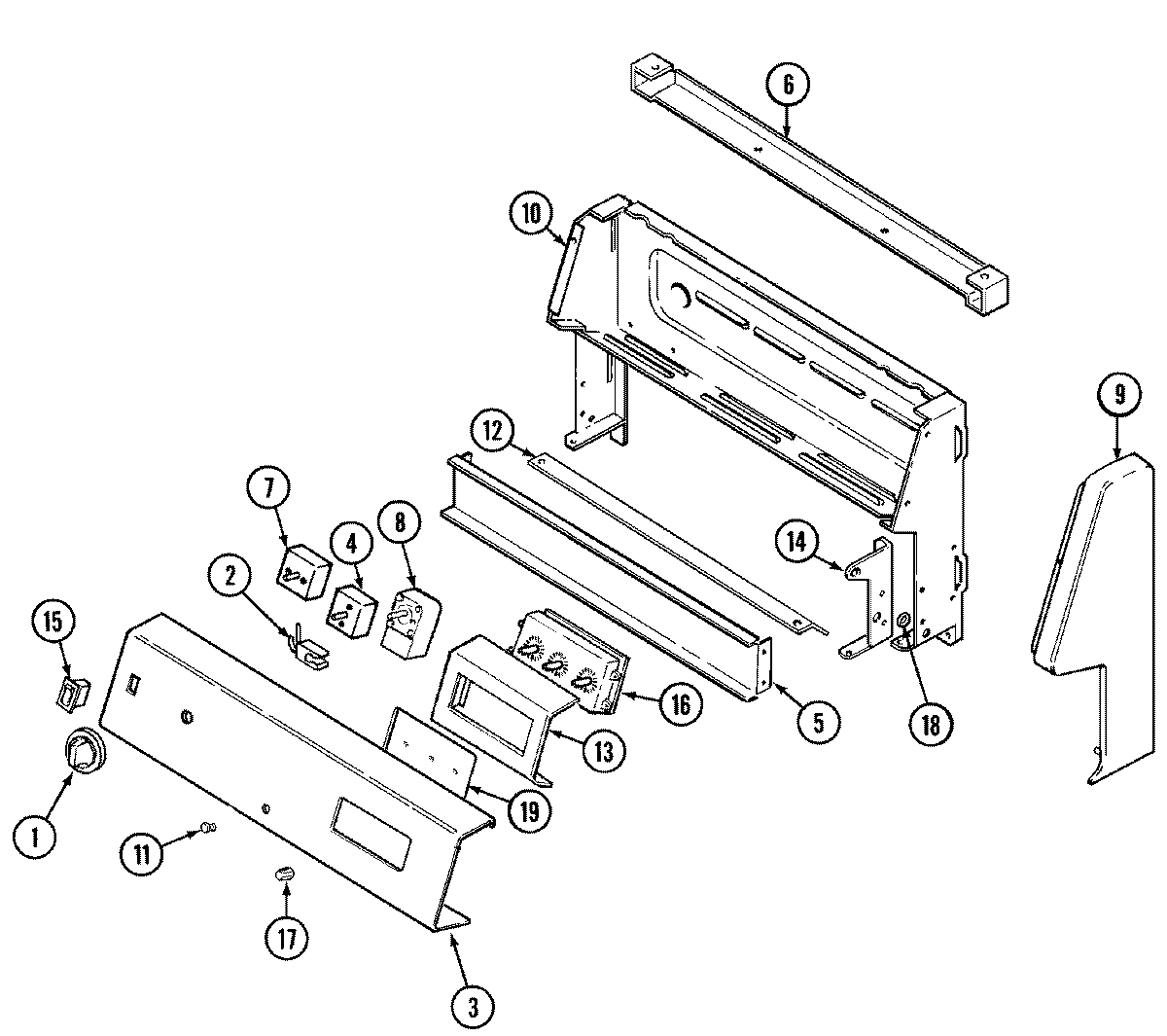

3842SRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7737P028-60
2	W10852510 Whirlpool Indicator Light
2	MAY 7407P081-60
3	MAY 7703P269-60
4	MAY 7403P342-60
4	MAY 7403P256-60
5	MAY 3802F087-51
5	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6	MAY 4001F064-51
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P100-60
8	SCREW
8	MAY 7404P078-60
9	MAY 7726P046-60
9	MAY 7726P050-60
9	MAY 74001343
9	MAY 74001342
10	MAY 4001F085-51
11	W11690131 Whirlpool Light Lens
11	W11690159 Whirlpool Handle
12	MAY 3604F201-80
13	WPY706189 Whirlpool Stove Screw
13	MAY 3801F249-45
14	SCREW (8BX3/8-NI)
14	MAY 3418D098-60
14	MAY 3418D097-60
15	7403P067-60 Whirlpool Light Switch
16	MAY 74001560
17	MAY 7711P466-60
18	WP3195558 Whirlpool Nut
19	MAY 7201P056-60
19	MAY 7902P109-60
20	MAY 5175D049-60
20	MAY 5125A321-60
20	MAY 5170D148-60
21	MAY 8113P021-60
22	MAY 16000329
