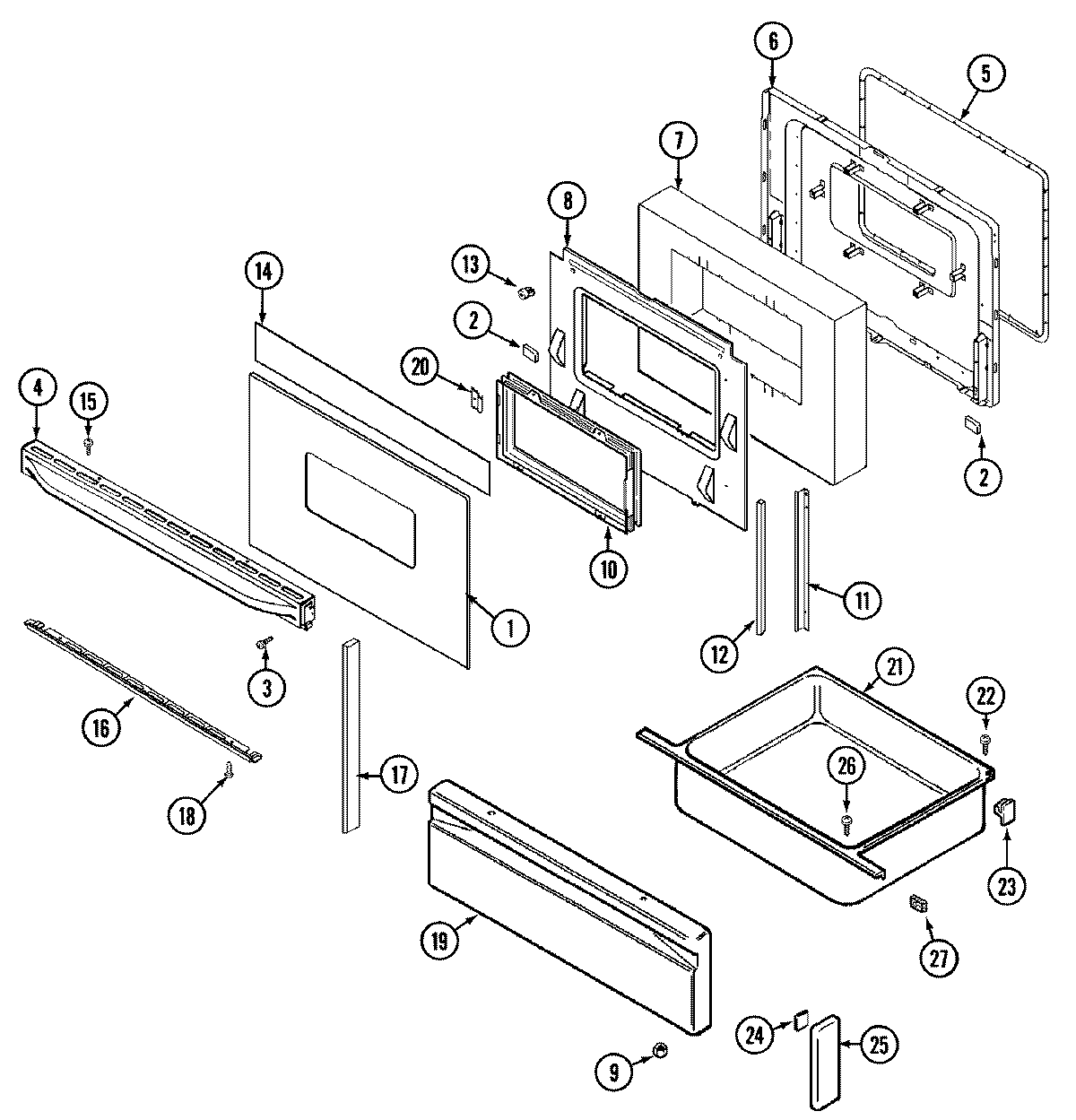

3842VRV 03 – DOOR/DRAWER (SERIES 01)

3842VRV 03 – DOOR/DRAWER (SERIES 01)

Written by

in

3842VRV 03 – DOOR/DRAWER (SERIES 01)

Products

PositionProduct
1MAY 7902P328-60
2MAY 8010P085-60
3WP3387230 Whirlpool Screw
4MAY 7701P106-60
5GASKT-DOOR OVEN
6MAY 2402W202-19
7MAY 4804F012-60
8MAY 3601F236-51
9WPW10131078 Whirlpool Nut Assembly
10MAY 7907P021-60
11MAY 3818F052-51
12MAY 7208P002-60
13MAY 7103P045-60
14TAPE, FOIL (3“ WIDE)
15MAY 7101P308-60
16MAY 7744P066-60
17MAY 8270P093-60
17MAY 7744P065-60
18MAY 7101P290-60
19MAY 2416F039-62
20MAY 3805F002-34
20MAY 74001449
21MAY 3405F015-80
22SCREW
23WP8004P026-60 Whirlpool Support
24TAPE
25MAY 7744P069-60
