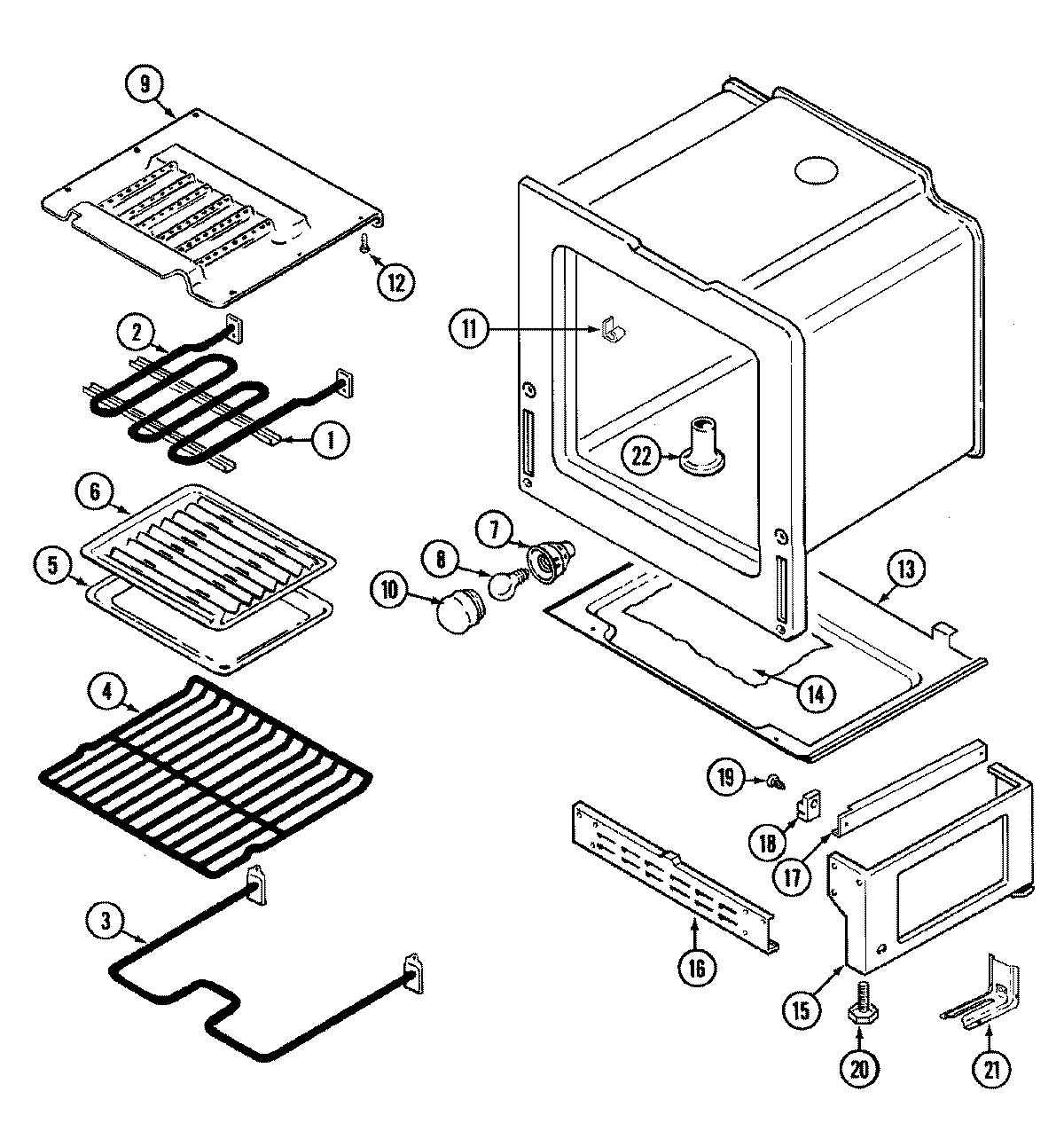

3842VRV 05 – OVEN/BASE

Products

Position	Product
1	MAY 7101P300-60
2	MAY Y04000057
3	MAY Y04000058
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003125
7	WP7407P182-60 Whirlpool Lamp
8	MAY 7407P095-60
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	WP7112P004-60 Whirlpool Thermal Clip
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 74001669
15	MAY 74003016
16	MAY 4020F001-80
17	RUNNER, DRAWER
17	MAY 3406F028-51
18	MAY 74003566
18	MAY 74002312
18	WP488130 Whirlpool Air Conditioner Nut
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 74001449
20	W11665456 Whirlpool Range Level Foot
20	MAY 74001311
21	MAY 3801F218-51
21	MAY 7101P289-60
22	MAY 8026P019-60
22	SCREW
