3842WRV 01 – BODY (3842WRx)

3842WRV 01 – BODY (3842WRx)

Written by

in

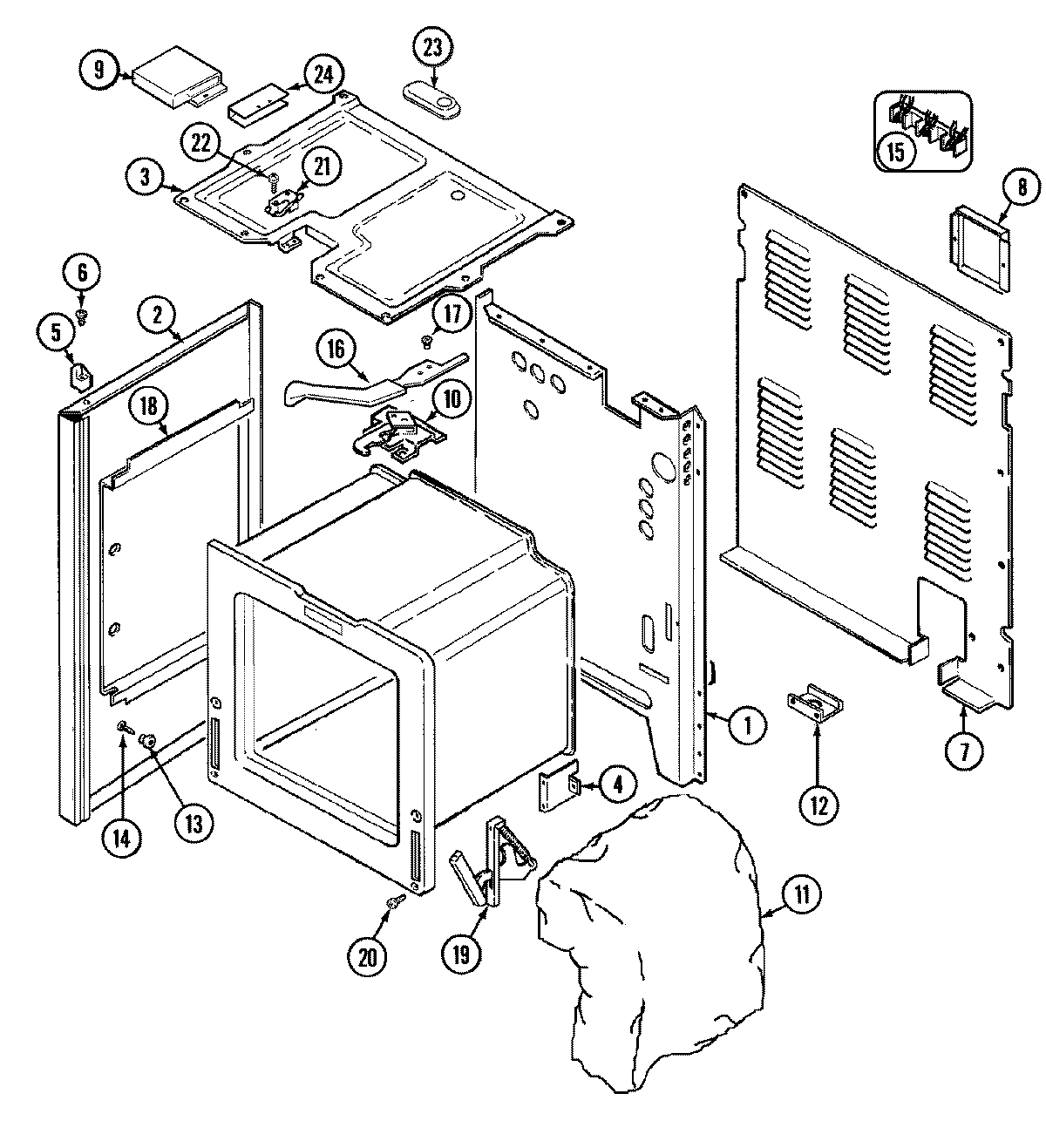

3842WRV 01 – BODY (3842WRx)

Products

PositionProduct
1MAY 4002F177-80
1MAY 74002334
2MAY 74001884
3MAY 74001753
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 4005F455-51
8MAY 4005F427-51
9MAY 4005F398-80
10MAY 74003032
10W10828565 Whirlpool Screw
11MAY 74001800
11MAY 74003037
12MAY 3605F174-51
13MAY 8004P024-60
15WPW10245259 Whirlpool Terminal Block
16MAY 74002973
18MAY 74002599
18SCREW
19MAY 7106P056-60
20W11693756 Whirlpool Screw Assembly
21MAY 74001822
22SCREW, LEVER
23COVER, VENT
23MAY 74001449
24MAY 74001823
