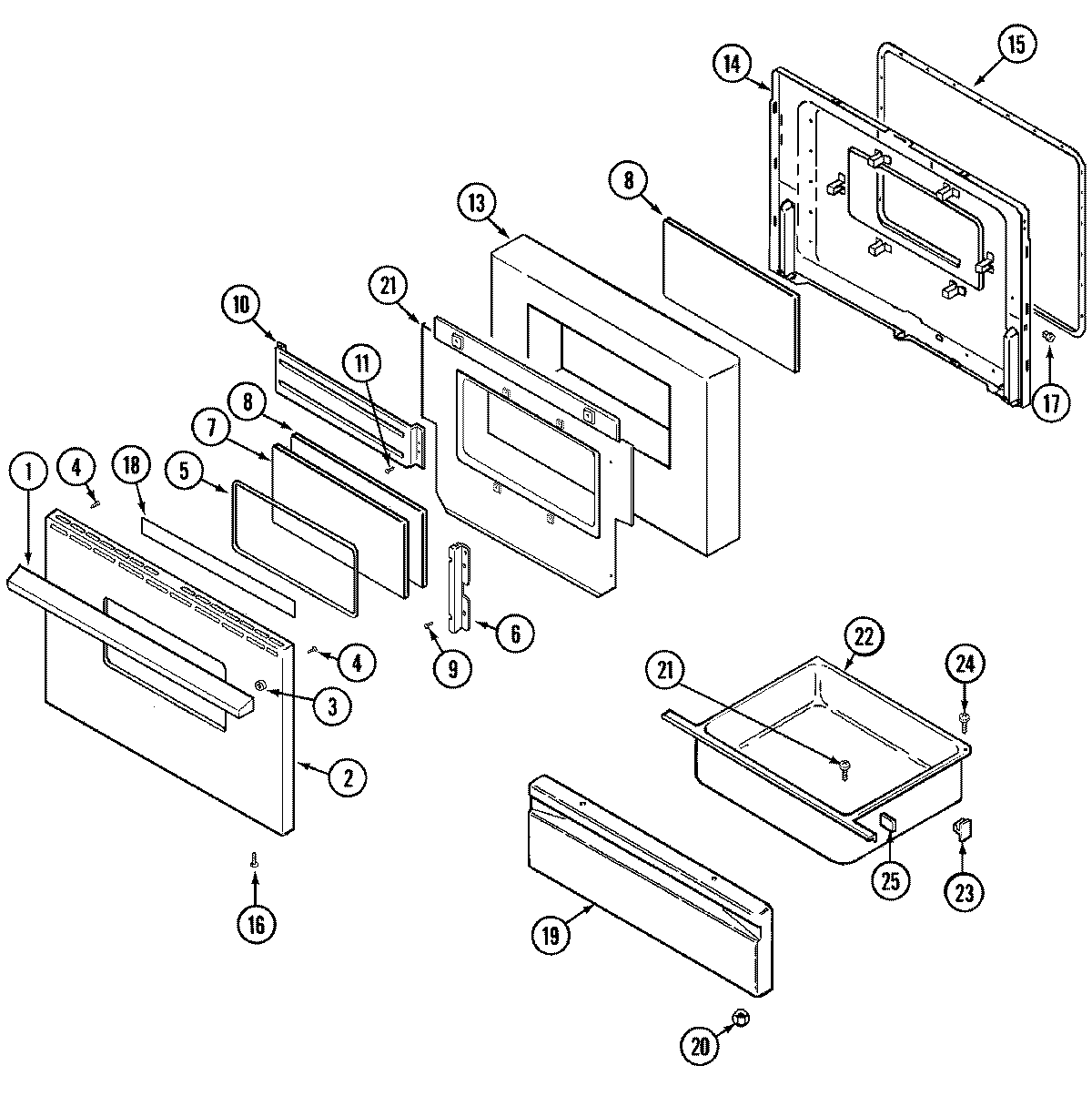

3842WRV 03 – DOOR/DRAWER (3842WRx)

3842WRV 03 – DOOR/DRAWER (3842WRx)

Written by

in

3842WRV 03 – DOOR/DRAWER (3842WRx)

Products

PositionProduct
1WP2411F013-71 Whirlpool Door Handle
2MAY 74003047
2WP98008544 Whirlpool Screw Assembly
3WP74005058 Whirlpool Spacer Assembly
4MAY 7101P080-60
5MAY 7201P017-60
6MAY 74003048
7MAY 74003049
8MAY 74001841
10MAY 74003050
12MAY 74001843
13MAY 74001842
14MAY 74001058
15GASKT-DOOR OVEN
17WP7103P114-60 Whirlpool Snap Nut
18MAY 8270P078-60
19MAY 2416F039-62
20WPW10131078 Whirlpool Nut Assembly
22MAY 3405F019-80
23WP8004P026-60 Whirlpool Support
24SCREW
25MAY 7208P011-60
