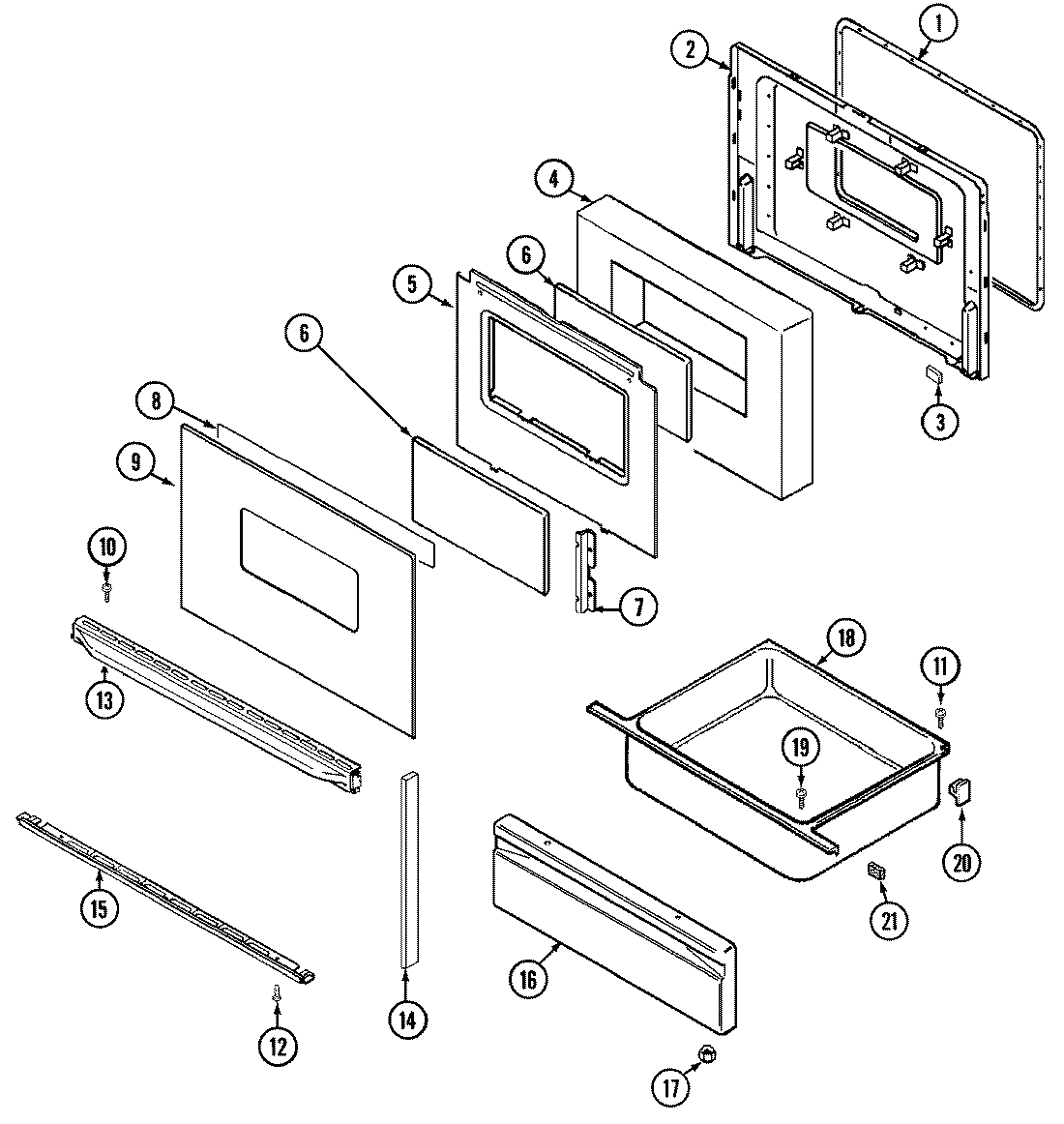

3860XVA 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
2MAY 74003244
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P321-60
9MAY 74003431
10WP98008545 Whirlpool Screw
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13SCREW
13MAY 7701P144-60
13MAY 74003429
14MAY 8270P093-60
14MAY 74003430
14MAY 74002084
15MAY 7744P105-60
15MAY 74003432
16MAY 2416F039-64
17WPW10131078 Whirlpool Nut Assembly
18MAY 3405F019-80
18MAY 74003618
19WP7101P072-60 Whirlpool Screw
20MAY 74003566
20WP8004P026-60 Whirlpool Support
20WP488130 Whirlpool Air Conditioner Nut
21WP854334 Whirlpool Air Conditioner Sealing Strip
