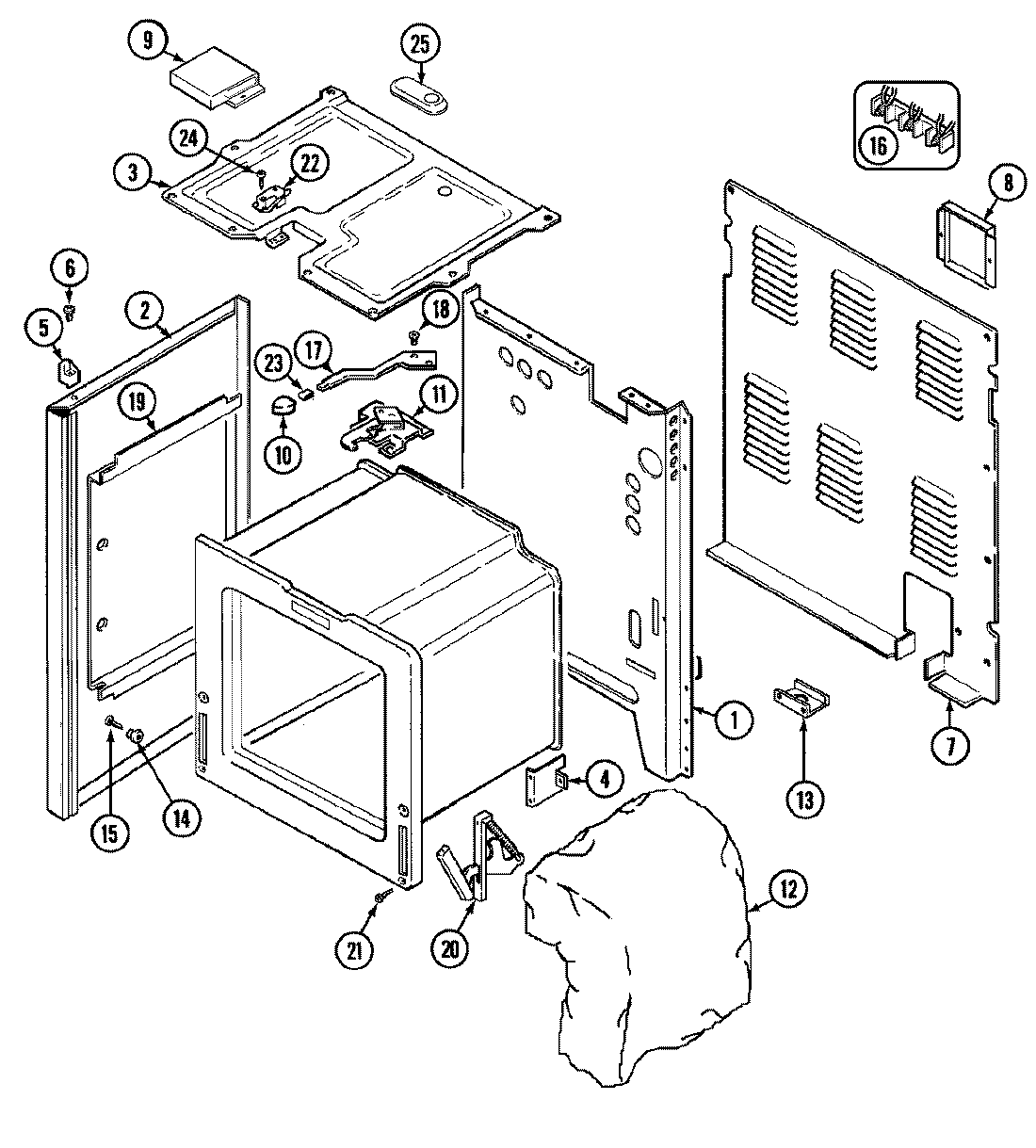

3860XVW 01 – BODY

Products

Position	Product
1	MAY 74001341
1	MAY 7403P160-60
2	MAY 74001884
3	MAY 7111P020-60
3	MAY 4011F240-19
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F376-51
9	MAY 4005F398-80
10	MAY 74001719
11	MAY 7101P280-60
11	W10828565 Whirlpool Screw
11	MAY 8002P025-60
11	MAY 74003032
12	MAY 4804F036-60
12	MAY 74001800
13	MAY 3605F174-51
14	MAY 8004P024-60
16	WPW10245259 Whirlpool Terminal Block
17	MAY 74003005
17	MAY 74001725
18	SCREW, LEVER
19	SCREW
19	MAY 3804F103-51
20	MAY 7106P056-60
20	WP74011140 Whirlpool Oven Hinge
21	SCREW (10-24X5/16-NI)
22	MAY 74001822
22	MAY 74001823
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
23	MAY 7112P112-60
24	MAY 7101P130-60
25	MAY 74001449
25	COVER, VENT
