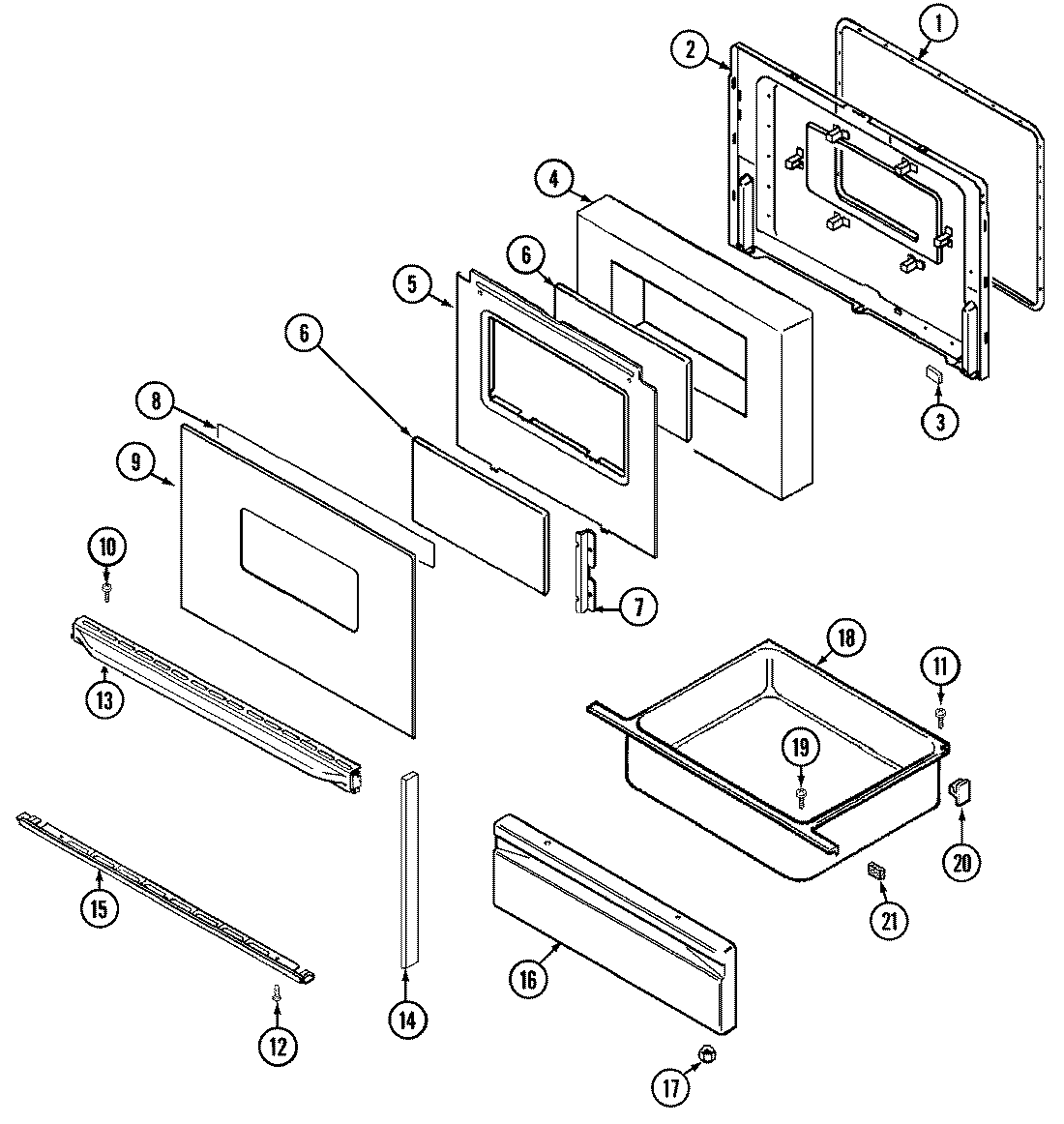

3862VVD 03 – DOOR/DRAWER (3862VVD)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3“ WIDE)
9	MAY 7902P358-60
9	MAY 74003455
10	WP74009541 Whirlpool Screw Assembly
13	MAY 7701P146-60
13	MAY 74003456
14	MAY 7744P085-60
14	MAY 74003458
14	MAY 74002343
14	MAY 8270P093-60
15	MAY 74003457
15	MAY 7744P104-60
16	MAY 2416F039-64
16	SCREW
17	WPW10131078 Whirlpool Nut Assembly
18	MAY 74003618
18	MAY 3405F019-80
19	WP7101P072-60 Whirlpool Screw
20	WP8004P026-60 Whirlpool Support
20	MAY 74003566
20	WP488130 Whirlpool Air Conditioner Nut
21	MAY 7208P011-60
