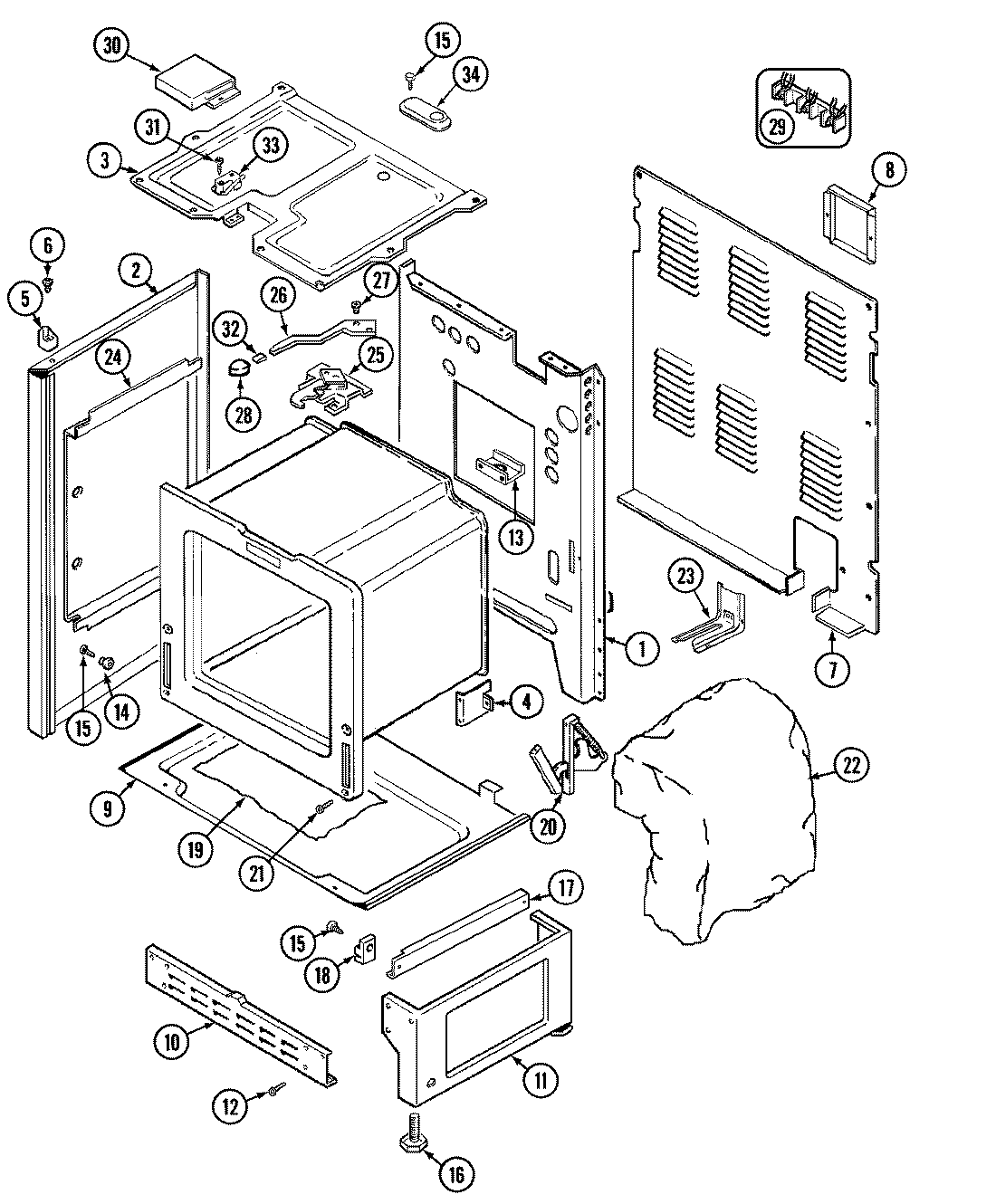

3862XVA 01 – BODY

Products

Position	Product
1	MAY 7403P160-60
1	MAY 4002F189-80
2	MAY 2618F110-74
3	MAY 74001753
3	MAY 4011F238-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4005F348-51
8	MAY 4005F376-51
9	MAY 3804F109-51
10	MAY 4020F001-80
11	MAY 4020W013-80
11	MAY 74003016
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
16	MAY 7101P306-60
16	W11665456 Whirlpool Range Level Foot
17	RUNNER, DRAWER
17	MAY 3406F028-51
18	WP488130 Whirlpool Air Conditioner Nut
18	MAY 74003566
18	MAY 8004P033-60
19	MAY 8312P058-60
20	WP74011140 Whirlpool Oven Hinge
20	MAY 7106P056-60
21	SCREW, HINGE
22	MAY 4804F038-60
22	MAY 4804F036-60
23	MAY 3801F218-51
23	MAY 7101P289-60
24	MAY 3804F103-51
25	MAY 7101P280-60
25	MAY 8002P025-60
26	MAY 74001725
26	MAY 74003005
26	MAY 8009P024-60
27	MAY 7109P015-60
27	SCREW, LEVER
28	MAY 7701P132-60
29	WPW10245259 Whirlpool Terminal Block
30	MAY 4005F398-80
31	MAY 7101P130-60
31	SCREW
32	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
32	MAY 7112P003-60
33	MAY 7403P228-60
33	MAY 74001708
33	MAY 74001823
34	COVER, VENT
