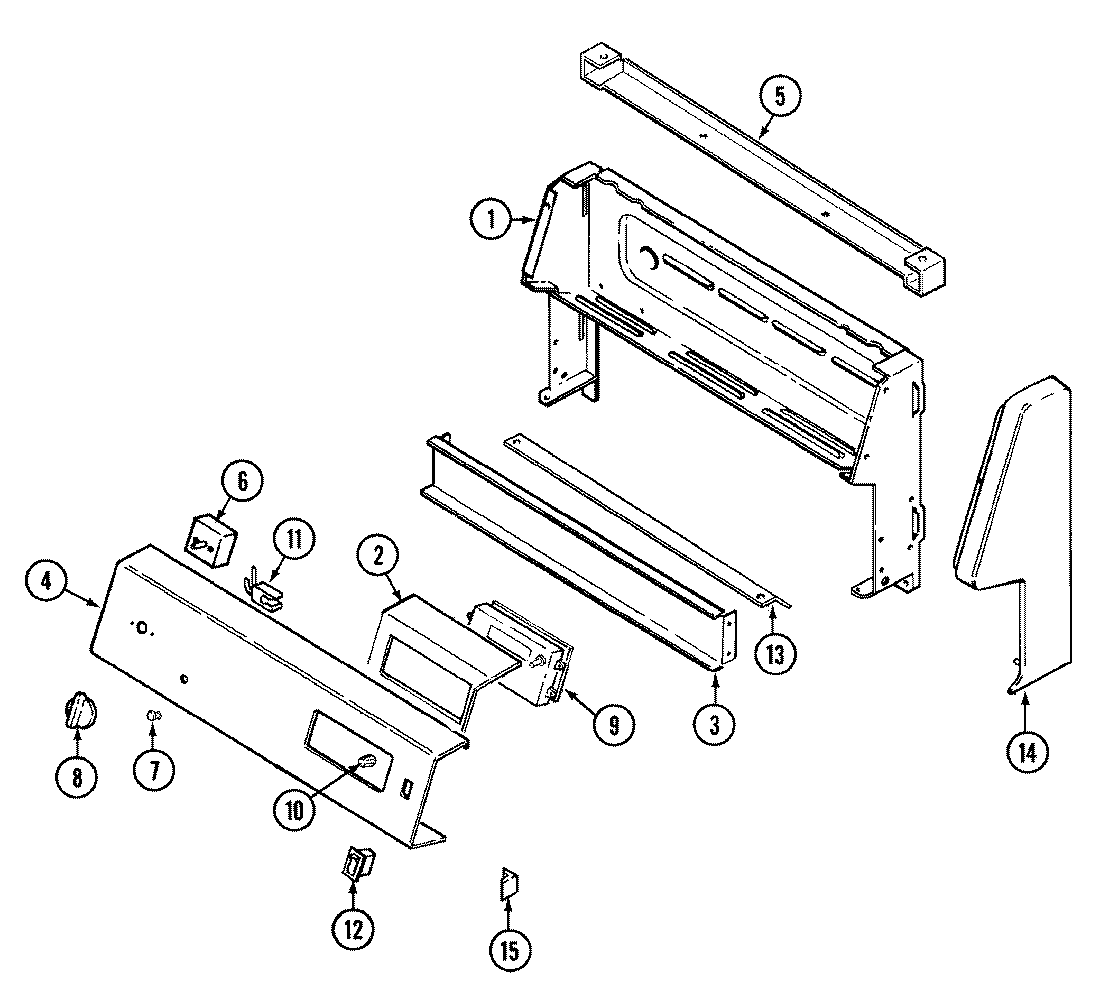

3862XVW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
2	MAY 3801F336-45
3	MAY 3802F088-51
4	WPY706189 Whirlpool Stove Screw
4	MAY 7703P572-60
5	MAY 4001F064-51
6	SCREW
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	W11690131 Whirlpool Light Lens
8	MAY 7731P082-60
9	MAY 7101P148-60
9	MAY 7601P229-60
9	MAY 74002221
10	WP7711P492-60 Whirlpool Clock Knob
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	W10852510 Whirlpool Indicator Light
12	7403P067-60 Whirlpool Light Switch
13	MAY 3604F201-80
13	SCREW (8BX3/8-NI)
14	MAY 74001343
14	MAY 7726P046-60
14	MAY 7726P050-60
14	MAY 74001342
15	SPACER, MAIN TOP (LT)
15	SPACER, MAIN TOP (RT)
17	MAY 5170D199-60
17	MAY 5195D082-60
17	MAY 5170P205-60
17	MAY 5175D049-60
18	MAY 8113P068-60
18	MAY 16007454
19	MAY 16000329
