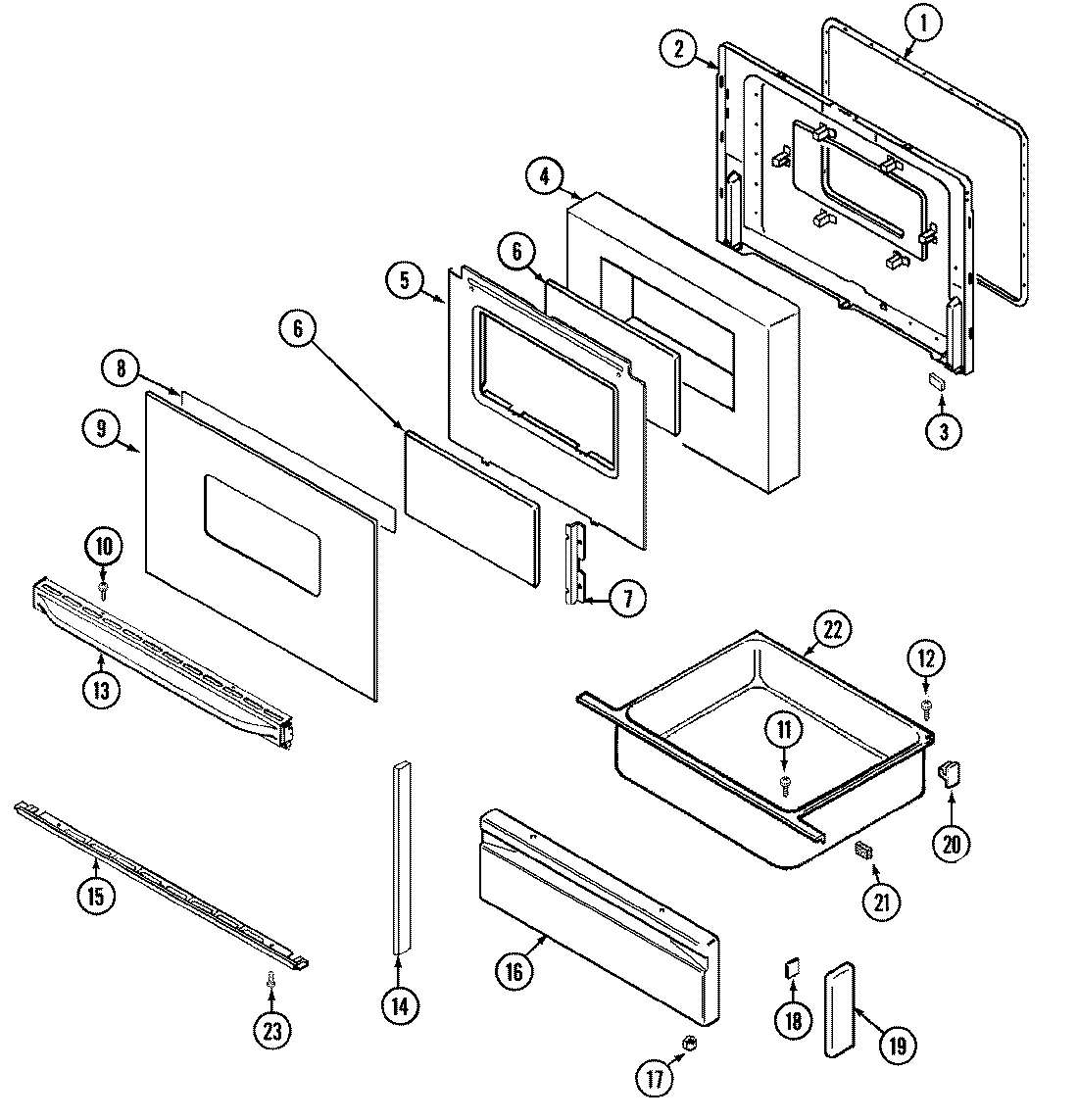

3862XVW 04 – DOOR/DRAWER (SER. PRE. 21)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
5	MAY 7101P290-60
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 7902P321-60
9	MAY 74003431
10	WP98008545 Whirlpool Screw
12	MAY 74001280
13	MAY 7701P144-60
13	MAY 74003429
14	MAY 74003430
14	MAY 8270P093-60
14	MAY 74002084
14	MAY 7744P055-60
15	MAY 7744P105-60
15	MAY 74003432
16	MAY 2416F039-62
17	WPW10131078 Whirlpool Nut Assembly
20	MAY 74003566
20	WP488130 Whirlpool Air Conditioner Nut
20	WP8004P026-60 Whirlpool Support
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	MAY 3405F019-80
22	MAY 74003618
23	SCREW
