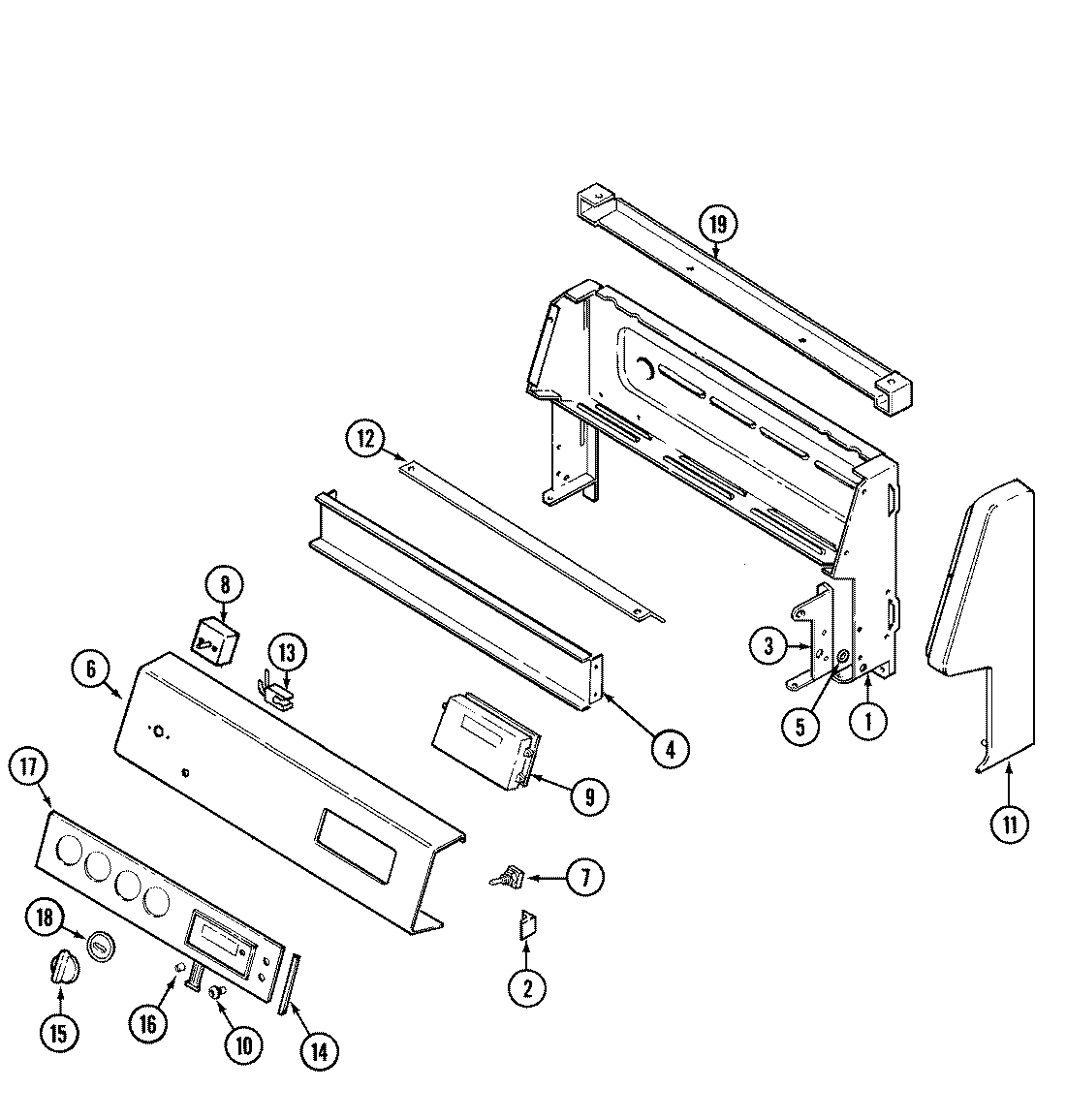

3865XRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F094-51
2	MAY 8010P083-60
3	MAY 3418A088-34
3	MAY 3418A087-34
3	MAY 7118P015-60
4	MAY 3802F087-51
5	MAY 7103P129-60
6	MAY 7703P502-60
6	MAY 7118P019-60
6	MAY 7703P501-60
6	MAY 7703P310-60
7	MAY 7403P109-60
8	WP7403P239-60 Whirlpool Oven Switch
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	MAY 7601P209-60
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	MAY 7601P171-60
9	MAY 7428P013-60
9	MAY 8004P020-60
9	MAY 7101P148-60
10	MAY 7214P007-60
11	MAY 7726P050-60
11	MAY 7726P046-60
12	MAY 3604F201-80
13	MAY 7407P090-60
14	MAY 7720P156-60
15	MAY 7731P082-60
16	MAY 7711P431-60
17	MAY 4876S024-59
17	MAY 4876S023-59
18	MAY 7740P018-60
19	MAY 4001F064-51
20	MAY 5170D165-60
20	MAY 5125A352-60
20	MAY 5170P124-60
21	MAY 8113P026-60
21	MAY 8113P007-60
22	MAY 16000329
