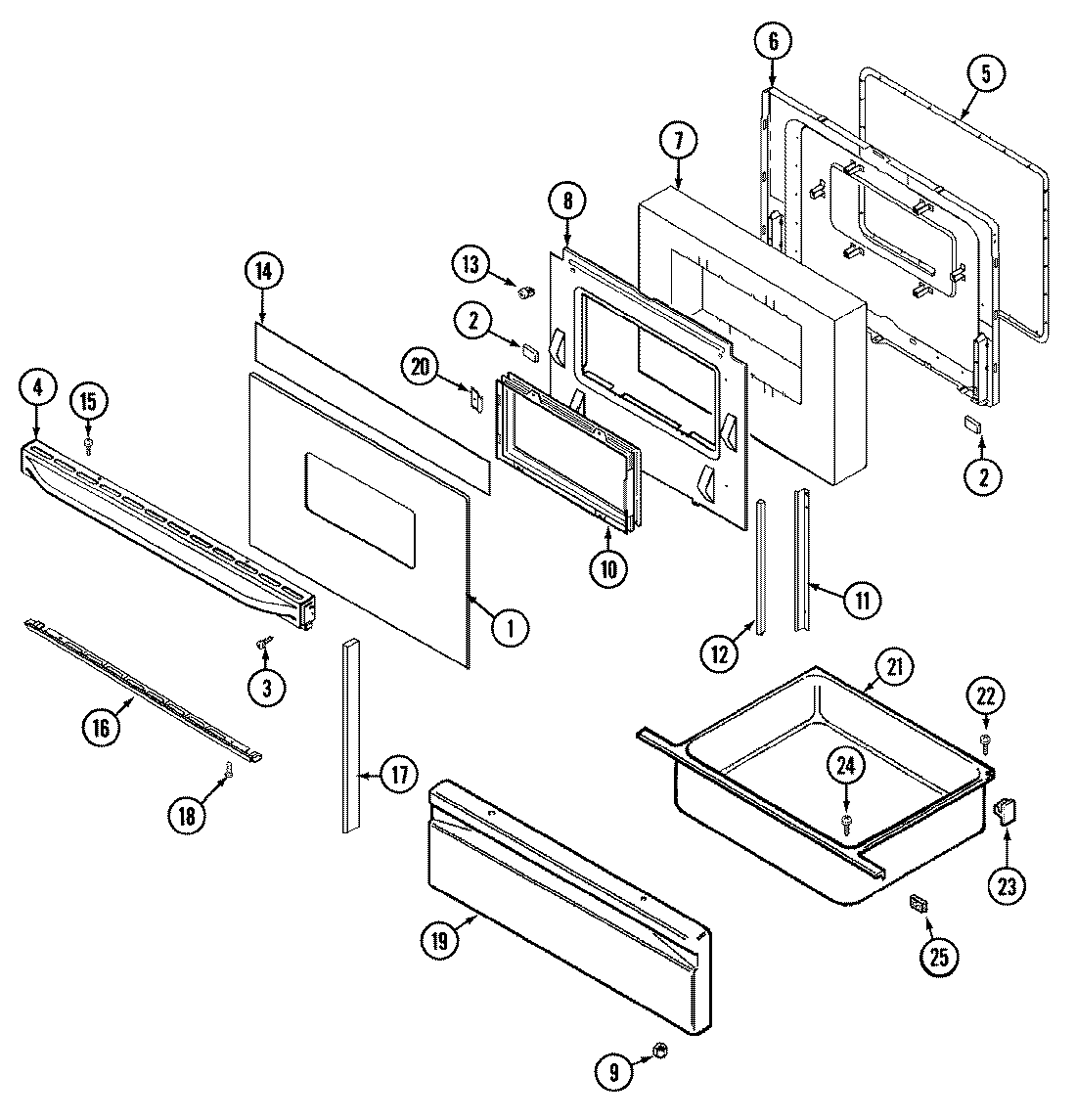

3865XRW 03 – DOOR/DRAWER

3865XRW 03 – DOOR/DRAWER

Written by

in

3865XRW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P321-60
2MAY 8010P085-60
3WP3387230 Whirlpool Screw
4MAY 7701P096-60
5GASKT-DOOR OVEN
6MAY 2402W202-19
7MAY 4804F034-60
8MAY 3601F232-45
9WPW10131078 Whirlpool Nut Assembly
10MAY 7907P021-60
11MAY 3818F052-51
12MAY 7208P002-60
13MAY 7103P045-60
14TAPE, FOIL (3“ WIDE)
15WP98008545 Whirlpool Screw
16MAY 7744P105-60
17MAY 7744P055-60
18MAY 7101P290-60
19MAY 2416F039-62
20MAY 3805F002-34
21MAY 3405F015-80
22MAY 7101P291-60
23WP8004P026-60 Whirlpool Support
24WP4159193 Whirlpool Screw
25MAY 7208P011-60
