3867VVD 02 – CONTROL PANEL

3867VVD 02 – CONTROL PANEL

Written by

in

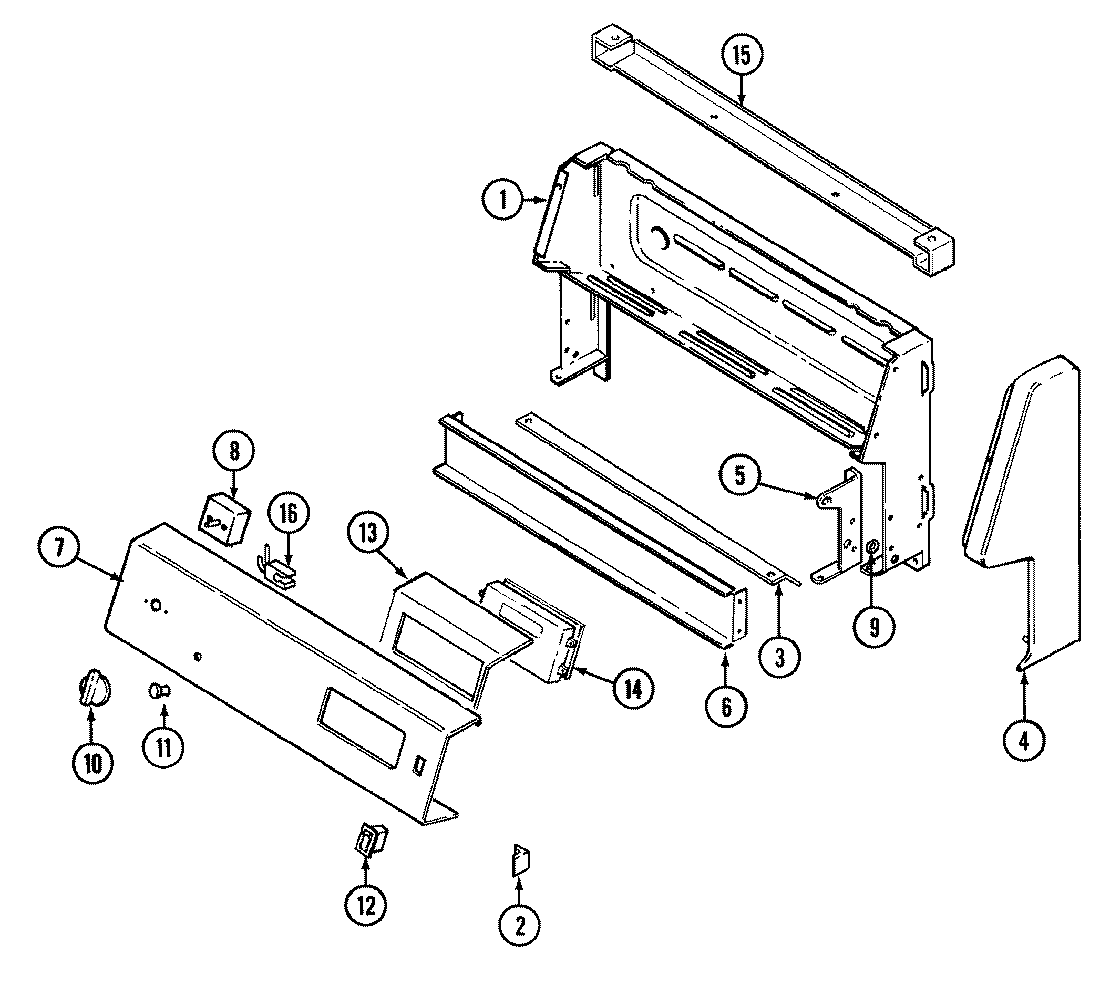

3867VVD 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74002162
2MAY 8010P083-60
3MAY 3604F201-80
4MAY 74002340
4MAY 74002341
5MAY 3807F453-51
5MAY 3807F454-51
6MAY 3802F088-51
7WP74009541 Whirlpool Screw Assembly
7MAY 74001295
8SCREW
8WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8WP7403P239-60 Whirlpool Oven Switch
9WP3195558 Whirlpool Nut
10MAY 7737P046-60
11W11690131 Whirlpool Light Lens
12MAY 7403P358-60
13WPY706189 Whirlpool Stove Screw
13MAY 74002080
14WP59002061 Whirlpool Microwave Screw
14MAY 74002219
15SCREW (8BX3/8-NI)
15MAY 4001F064-51
16W10852510 Whirlpool Indicator Light
17MAY 5125A381-60
17MAY 5175D052-60
17MAY 5170D199-60
17MAY 5195D082-60
17MAY 5170P205-60
17MAY 5175D063-60
18MAY 16007454
19MAY 16000329
