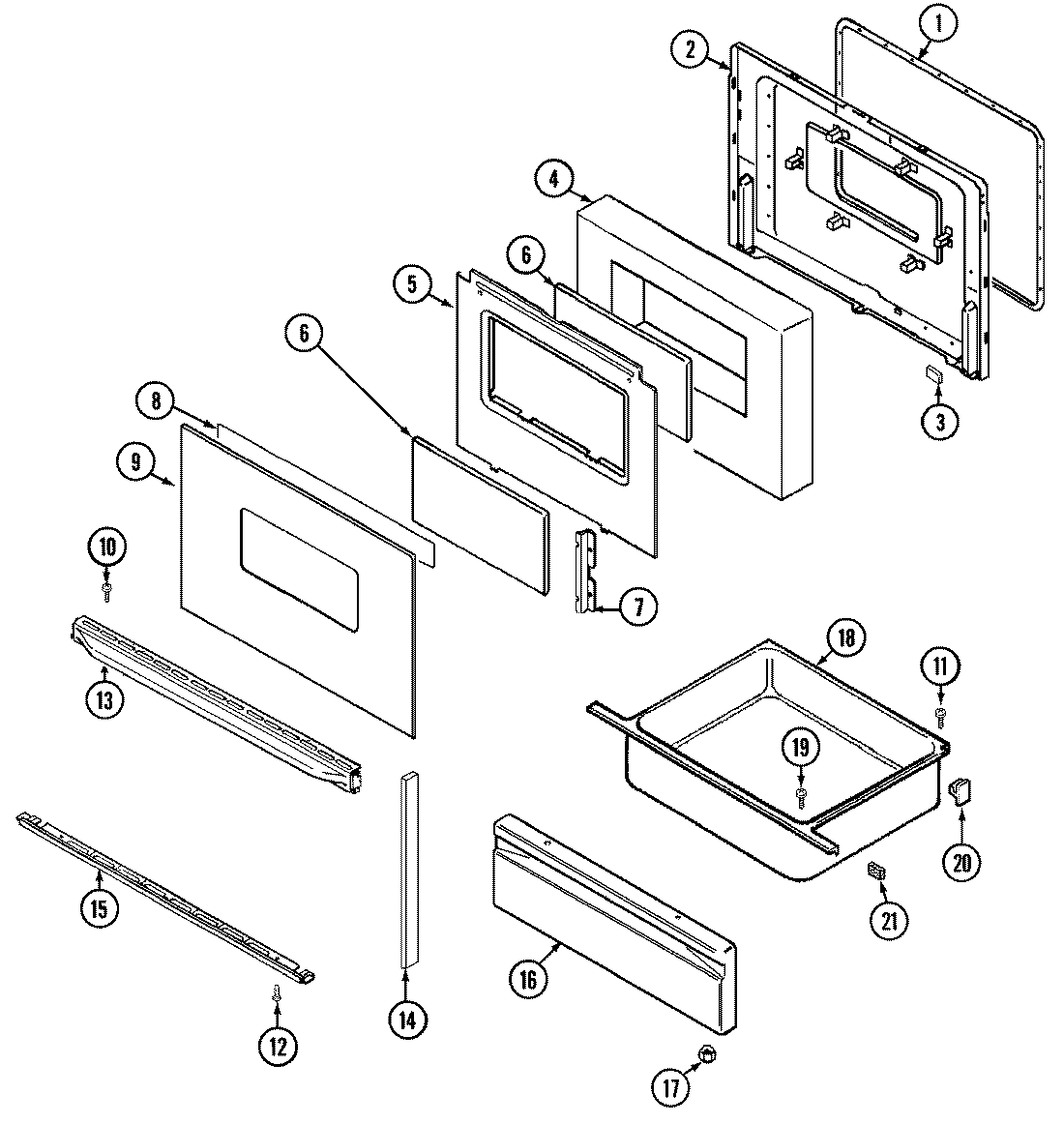

3867XVB 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 7902P321-60
10	WP98008545 Whirlpool Screw
13	SCREW
13	MAY 7701P144-60
14	MAY 74002084
14	MAY 8270P093-60
14	MAY 7744P055-60
15	MAY 7744P105-60
16	MAY 2416F039-65
17	WPW10131078 Whirlpool Nut Assembly
18	MAY 3405F019-80
19	WP7101P072-60 Whirlpool Screw
20	WP8004P026-60 Whirlpool Support
21	WP854334 Whirlpool Air Conditioner Sealing Strip
