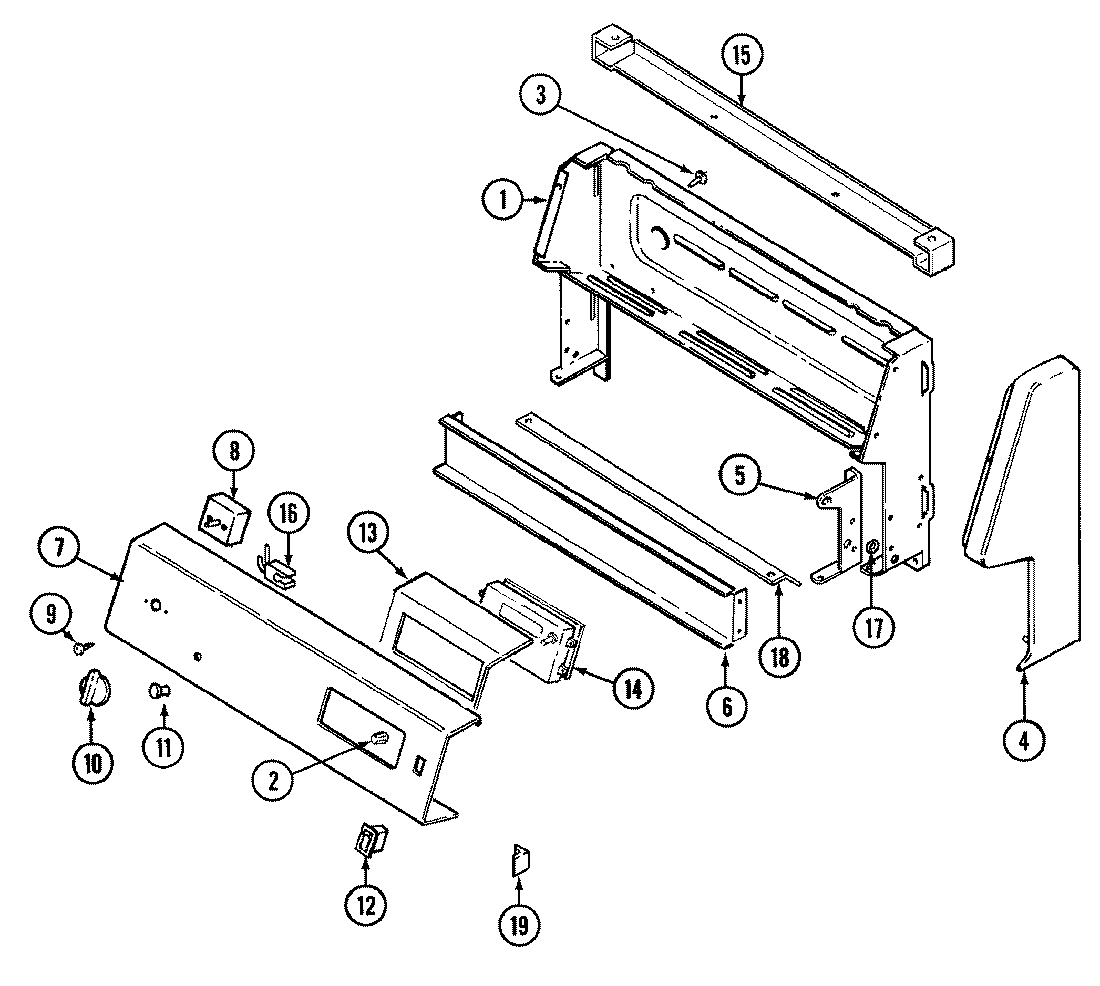

3868VVD 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
2	MAY 7711P494-60
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	SCREW
4	MAY 7726P100-60
4	MAY 7726P099-60
4	MAY 74002341
4	MAY 74002340
5	MAY 3807F454-51
5	MAY 8114P348-60
5	MAY 3807F453-51
6	MAY 3802F088-51
7	MAY 74001295
7	WP74009541 Whirlpool Screw Assembly
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	WP7403P239-60 Whirlpool Oven Switch
9	SCREW
10	MAY 7737P046-60
11	W11690131 Whirlpool Light Lens
12	MAY 7403P358-60
13	WPY706189 Whirlpool Stove Screw
13	MAY 74002080
14	MAY 74001402
14	MAY 74002219
15	MAY 4001F064-51
16	W10852510 Whirlpool Indicator Light
17	WP3195558 Whirlpool Nut
18	MAY 3604F201-80
18	SCREW (8BX3/8-NI)
19	WP59002061 Whirlpool Microwave Screw
19	MAY 8010P083-60
20	MAY 5175D063-60
20	MAY 5170P205-60
20	MAY 5175D052-60
20	MAY 5125A381-60
20	MAY 5170D199-60
20	MAY 5195D082-60
21	MAY 16007454
21	MAY 8113P068-60
22	MAY 16000329
