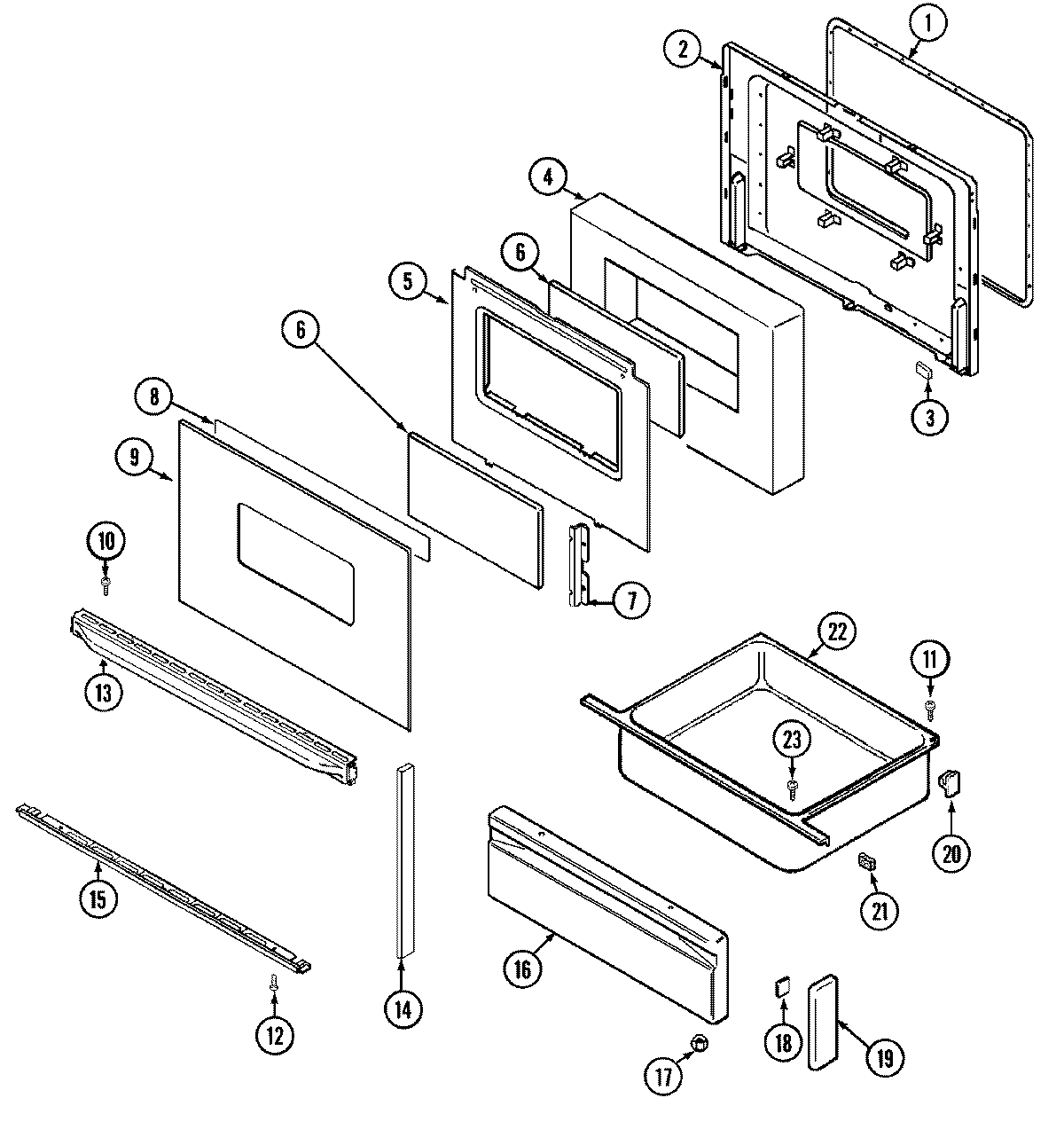

3868VVD 04 – DOOR/DRAWER (SER. PRE. 21)

3868VVD 04 – DOOR/DRAWER (SER. PRE. 21)

Written by

in

3868VVD 04 – DOOR/DRAWER (SER. PRE. 21)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
2MAY 74003244
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74003455
9MAY 7902P358-60
10MAY 7101P307-60
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13MAY 7701P116-60
13MAY 74003456
13SCREW
14MAY 74002343
14MAY 74003458
14MAY 8270P093-60
14MAY 7744P085-60
15MAY 7744P104-60
15MAY 74003457
16MAY 2416F039-64
17WPW10131078 Whirlpool Nut Assembly
20WP8004P026-60 Whirlpool Support
20MAY 74003566
20WP488130 Whirlpool Air Conditioner Nut
21WP854334 Whirlpool Air Conditioner Sealing Strip
22MAY 3405F019-80
22MAY 74003618
23WP7101P072-60 Whirlpool Screw
