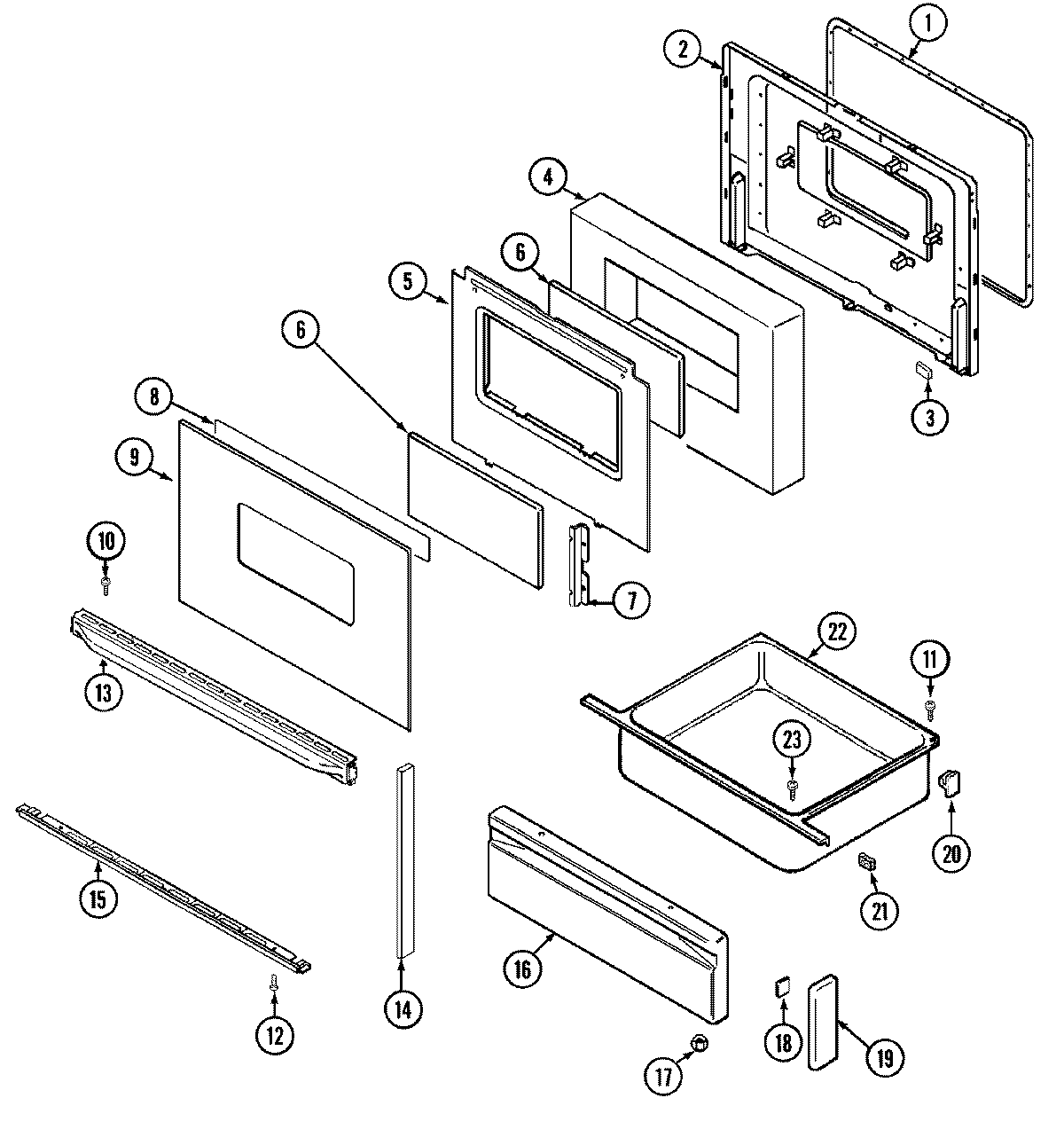

3868VVV 04 – DOOR/DRAWER (SER. PRE. 21)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74003395
9	MAY 7902P328-60
10	MAY 7101P308-60
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	SCREW
13	MAY 74003396
13	MAY 7701P145-60
14	MAY 7744P065-60
14	MAY 74002342
14	MAY 74003398
14	MAY 8270P093-60
15	MAY 7744P103-60
15	MAY 74003397
16	MAY 2416F039-62
17	WPW10131078 Whirlpool Nut Assembly
18	TAPE
19	MAY 7744P069-60
19	MAY 74002740
20	MAY 74003566
20	WP8004P026-60 Whirlpool Support
20	WP488130 Whirlpool Air Conditioner Nut
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	MAY 74003618
22	MAY 3405F019-80
23	WP7101P072-60 Whirlpool Screw
