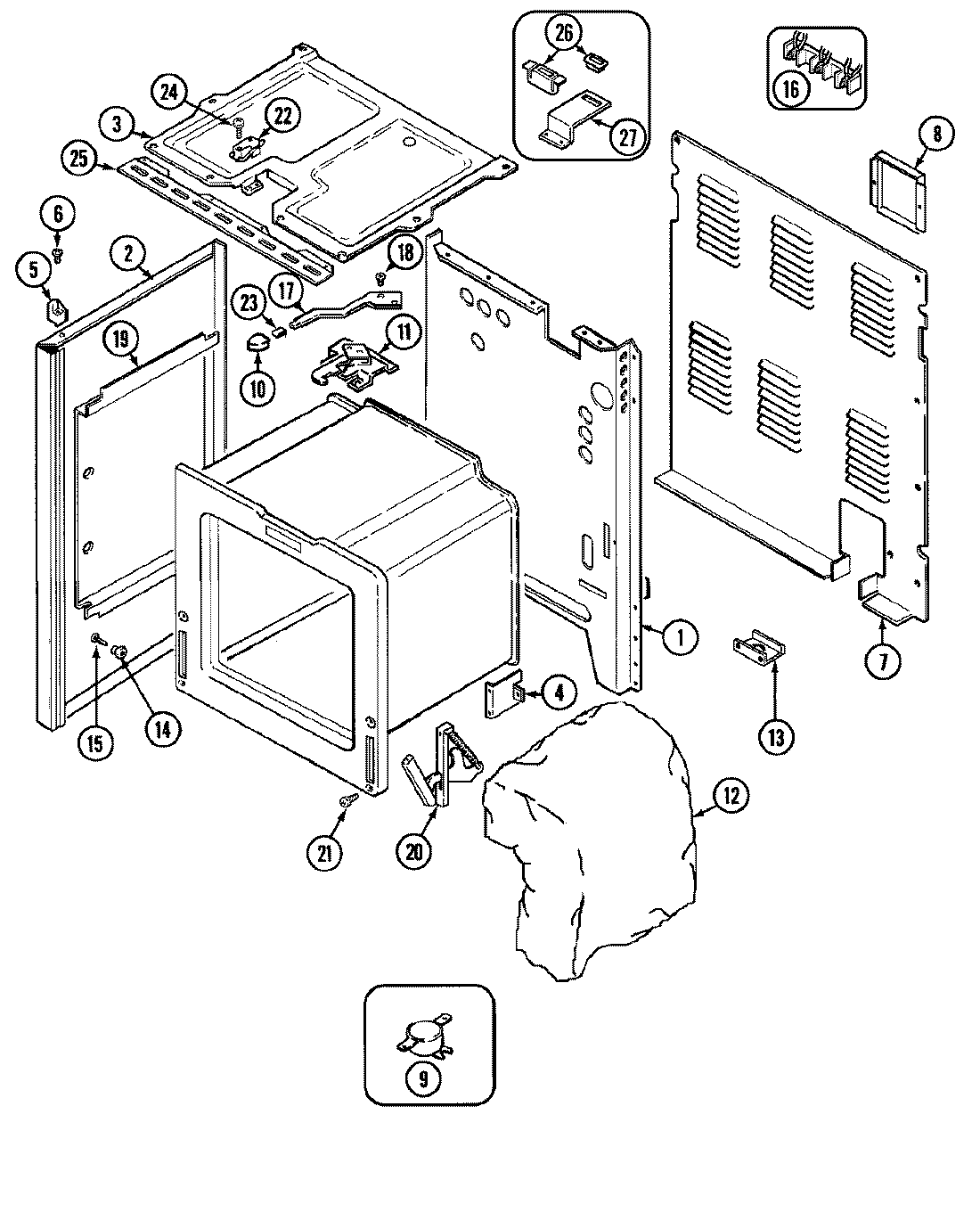

3868XVA 01 – BODY
Written by
in
3868XVA 01 – BODY
Products
Position
Product
1
MAY 74001772
2
MAY 2618F110-74
3
MAY 74001707
3
MAY 74001753
3
MAY 4011F238-19
3
MAY 74001695
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (LT)
5
SPACER, MAIN TOP (RT)
6
MAY 7101P313-60
7
MAY 4005F455-51
8
MAY 4005F376-51
9
MAY 7403P160-60
10
MAY 7701P132-60
11
W10828565 Whirlpool Screw
11
MAY 74003032
11
MAY 8002P025-60
11
MAY 7101P280-60
11
MAY 4804F028-60
12
MAY 4804F036-60
12
MAY 74001800
13
MAY 3605F174-51
14
MAY 8004P024-60
15
MAY 74001449
16
WPW10245259 Whirlpool Terminal Block
17
MAY 74003005
17
MAY 74001725
17
MAY 8009P024-60
18
SCREW, LEVER
19
MAY 3804F103-51
20
WP74011140 Whirlpool Oven Hinge
20
MAY 7106P056-60
21
SCREW (10-24X5/16-NI)
22
MAY 7403P228-60
22
MAY 74001708
22
MAY 74001722
22
MAY 74001999
23
MAY 7112P112-60
24
SCREW
25
MAY 3801F305-80
26
MAY 74003053
26
MAY 7407P097-60
27
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
27
MAY 3801F312-45
←
