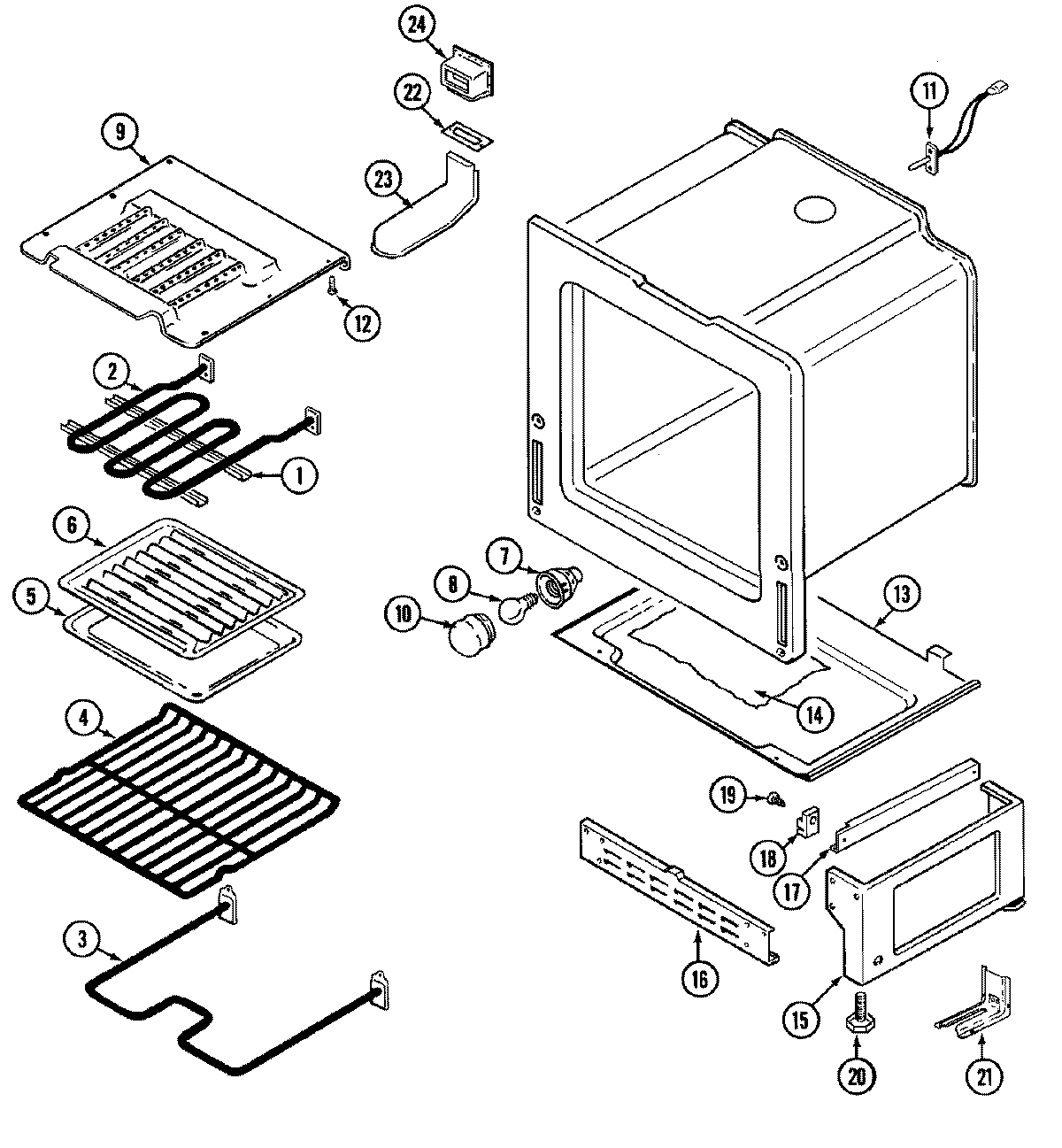

3868XVA 05 – OVEN/BASE

Products

Position	Product
1	MAY 3807F387-45
1	WP400021-1 Whirlpool Screw
2	MAY 7406P065-60
3	MAY Y04000058
4	MAY 7801P047-60
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003125
7	WP7407P182-60 Whirlpool Lamp
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	MAY 7430P010-60
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 4020W017-80
15	MAY 74003016
16	MAY 4020F001-80
17	MAY 3406F028-51
17	RUNNER, DRAWER
18	MAY 74003566
18	MAY 8004P033-60
18	WP488130 Whirlpool Air Conditioner Nut
19	MAY 74001449
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	W11665456 Whirlpool Range Level Foot
20	MAY 74001311
21	MAY 7101P344-60
21	MAY 3801F305-80
22	MAY 7201P054-60
23	MAY 4006W107-45
24	SCREW
24	MAY 3826W014-45
