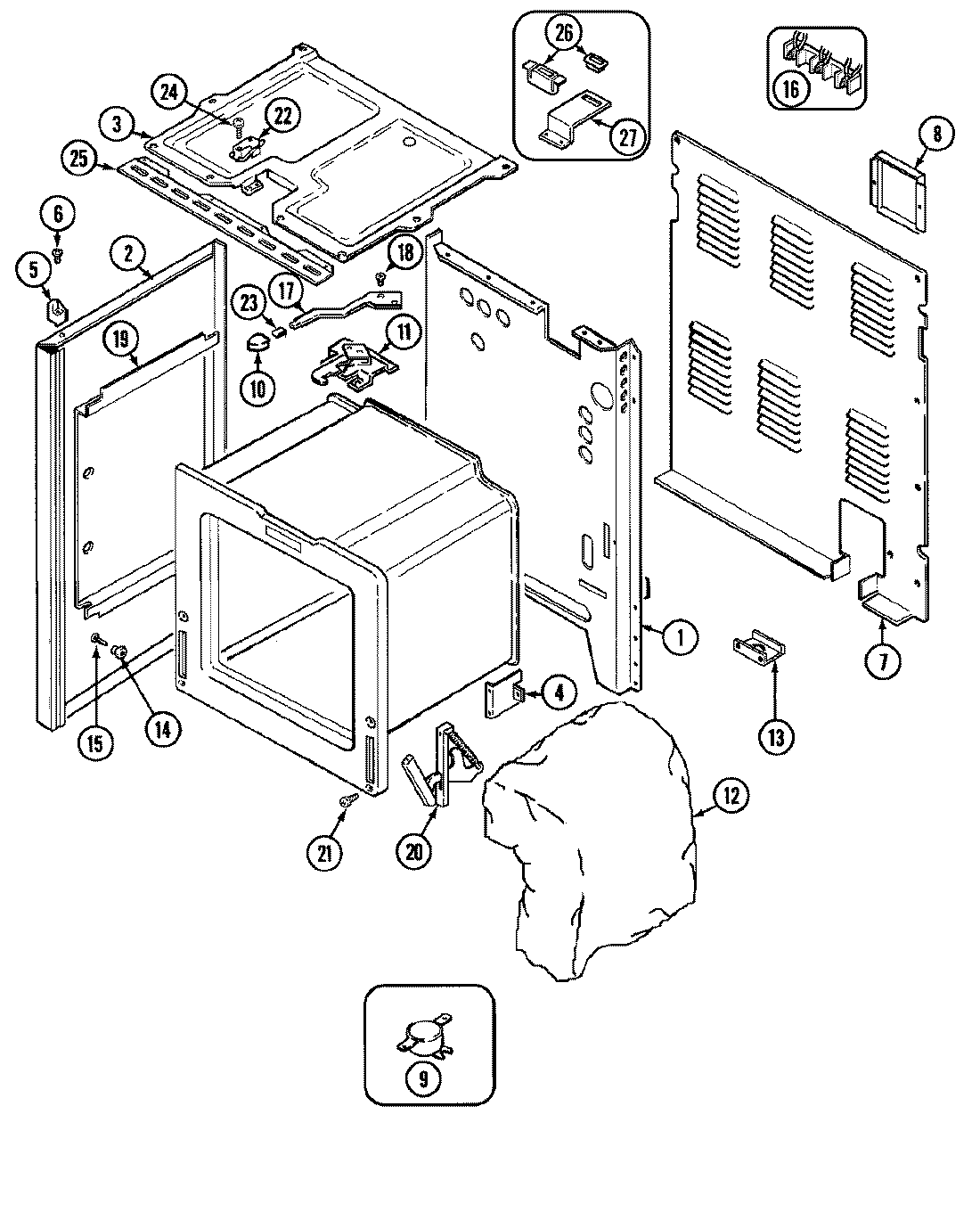

3868XVB 01 – BODY (3868XVB)

Products

Position	Product
1	MAY 74001772
2	MAY 74001907
3	MAY 74001695
3	MAY 74001753
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F376-51
9	MAY 7403P160-60
10	MAY 7701P132-60
11	W10828565 Whirlpool Screw
11	MAY 4804F028-60
11	MAY 8002P025-60
11	MAY 74003032
11	MAY 7101P280-60
12	MAY 4804F036-60
12	MAY 74001800
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
16	WPW10245259 Whirlpool Terminal Block
17	MAY 74001725
17	MAY 74003005
18	SCREW, LEVER
19	MAY 3804F103-51
20	WP74011140 Whirlpool Oven Hinge
20	MAY 7106P056-60
21	SCREW (10-24X5/16-NI)
22	MAY 74001999
22	MAY 74001708
23	MAY 7112P112-60
24	SCREW
25	MAY 3801F305-80
26	MAY 7407P097-60
26	MAY 74003053
27	MAY 3801F312-45
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
