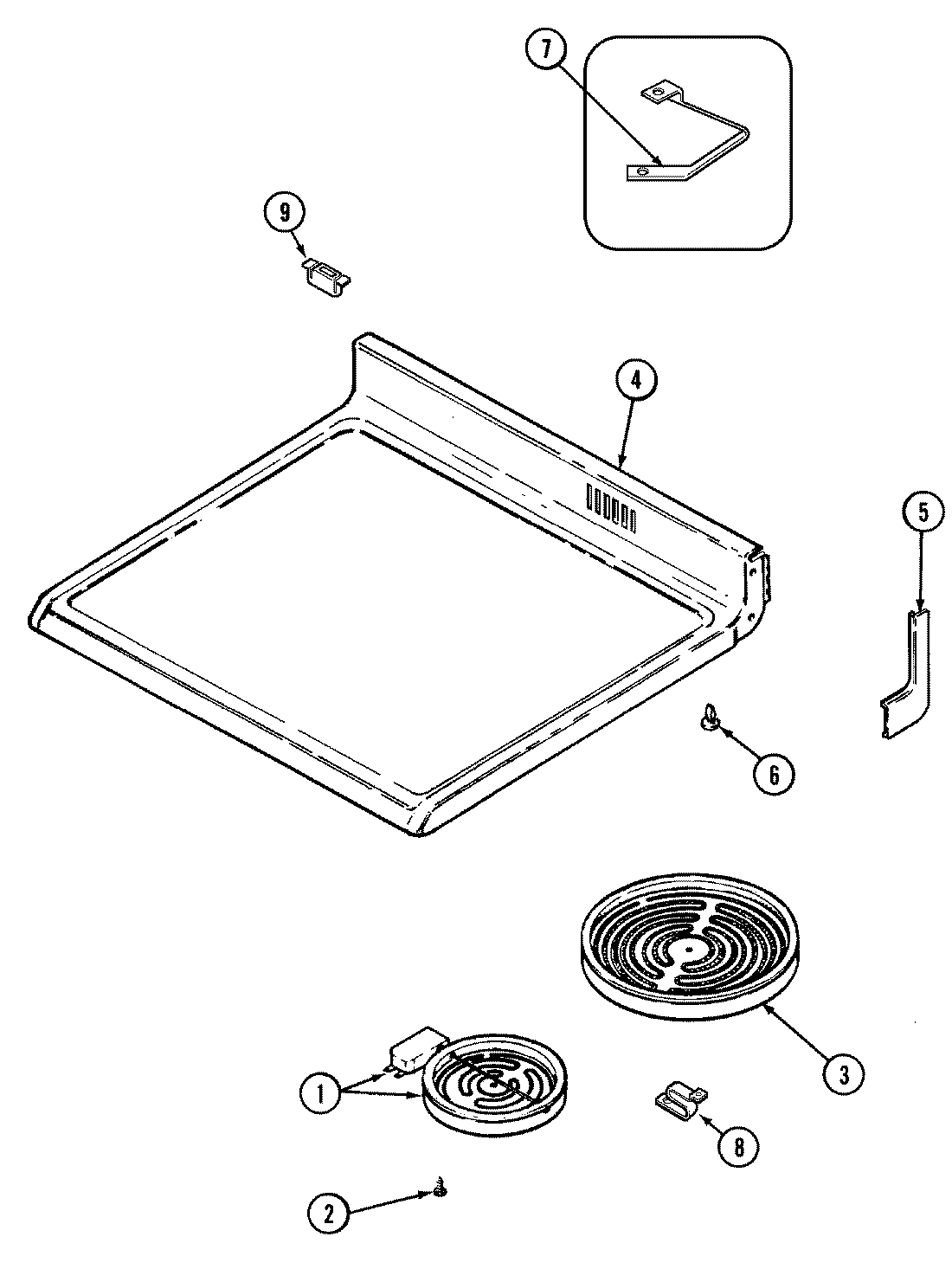

3868XVB 05 – TOP ASSEMBLY (3868XVB)

3868XVB 05 – TOP ASSEMBLY (3868XVB)

Written by

in

3868XVB 05 – TOP ASSEMBLY (3868XVB)

Products

PositionProduct
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2MAY 7118P013-60
3MAY 74002652
3W10823707 Whirlpool Range Radiant Surface Element 8"
4MAY 5706M109-09
4MAY 74003092
4W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
4WA906B Whirlpool Cooktop Glass Scraper
5MAY 7746P031-60
5MAY 7746P030-60
5WP3195558 Whirlpool Nut
6MAY 74001428
7MAY 74001437
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
88004P093-60 Whirlpool Support C
9MAY 74003053
