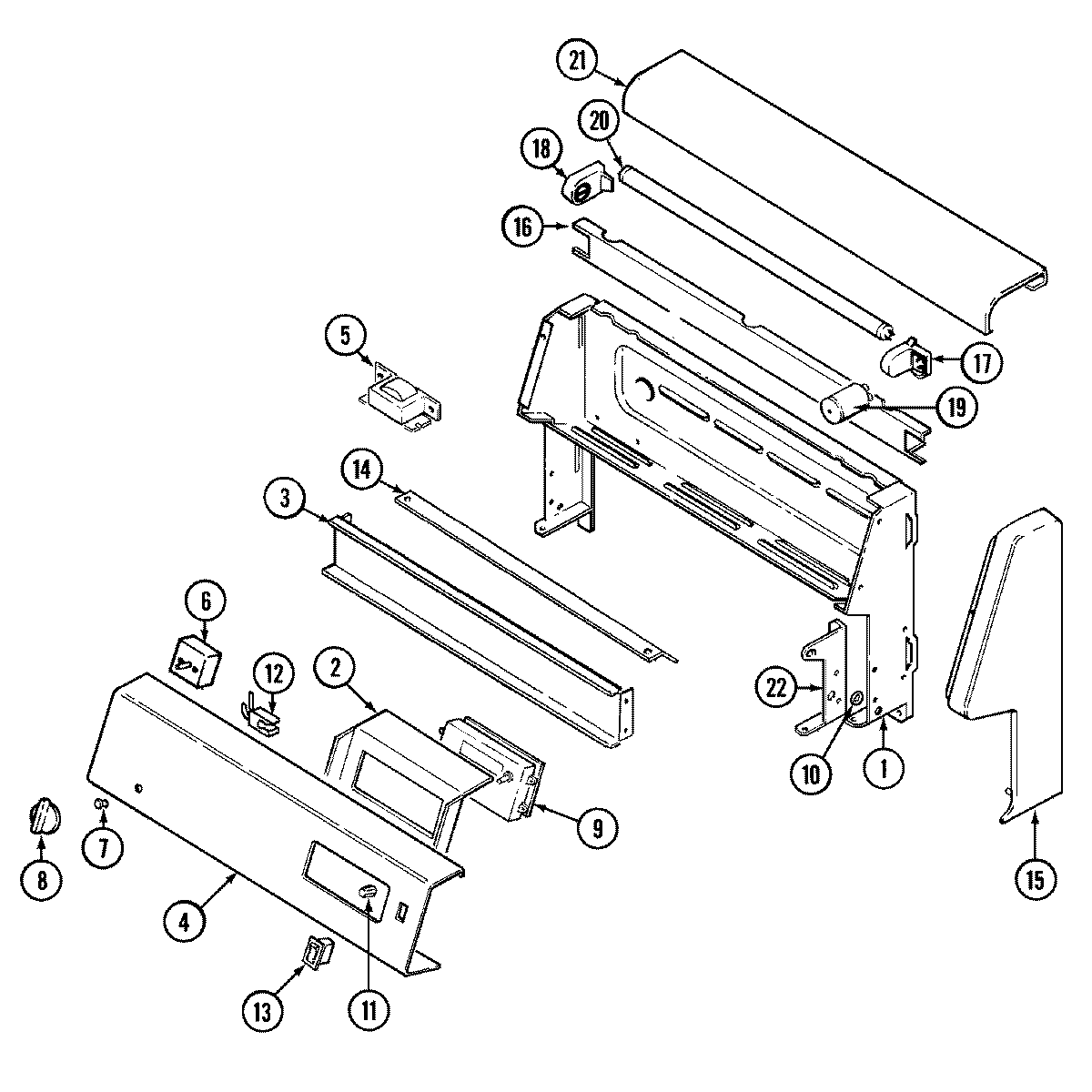

3882VVV 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
2	MAY 3801F337-45
3	MAY 3802F088-51
4	MAY 7703P579-60
4	MAY 7101P331-60
5	MAY 74003033
5	MAY 7412P007-60
6	SCREW
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	W11690131 Whirlpool Light Lens
8	MAY 7731P081-60
9	MAY 7601P234-60
9	MAY 74002220
10	WP3195558 Whirlpool Nut
11	MAY 7711P493-60
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	W10852510 Whirlpool Indicator Light
13	MAY 7403P200-60
14	MAY 3604F201-80
15	MAY 7726P074-60
15	MAY 7726P073-60
15	MAY 74002797
15	MAY 74002796
15	MAY 7103P129-60
16	MAY 3807F406-71
17	MAY 7408P029-60
18	MAY 7408P030-60
19	MAY 7415P001-60
20	MAY 7407P004-60
21	MAY 7724P059-60
22	MAY 3418D098-60
22	SCREW (8BX3/8-NI)
22	MAY 3418D097-60
23	MAY 5195D082-60
23	MAY 5170P205-60
23	MAY 5125A381-60
23	MAY 5170D199-60
23	MAY 5175D049-60
24	MAY 8113P068-60
24	MAY 16007437
25	MAY 16000329
