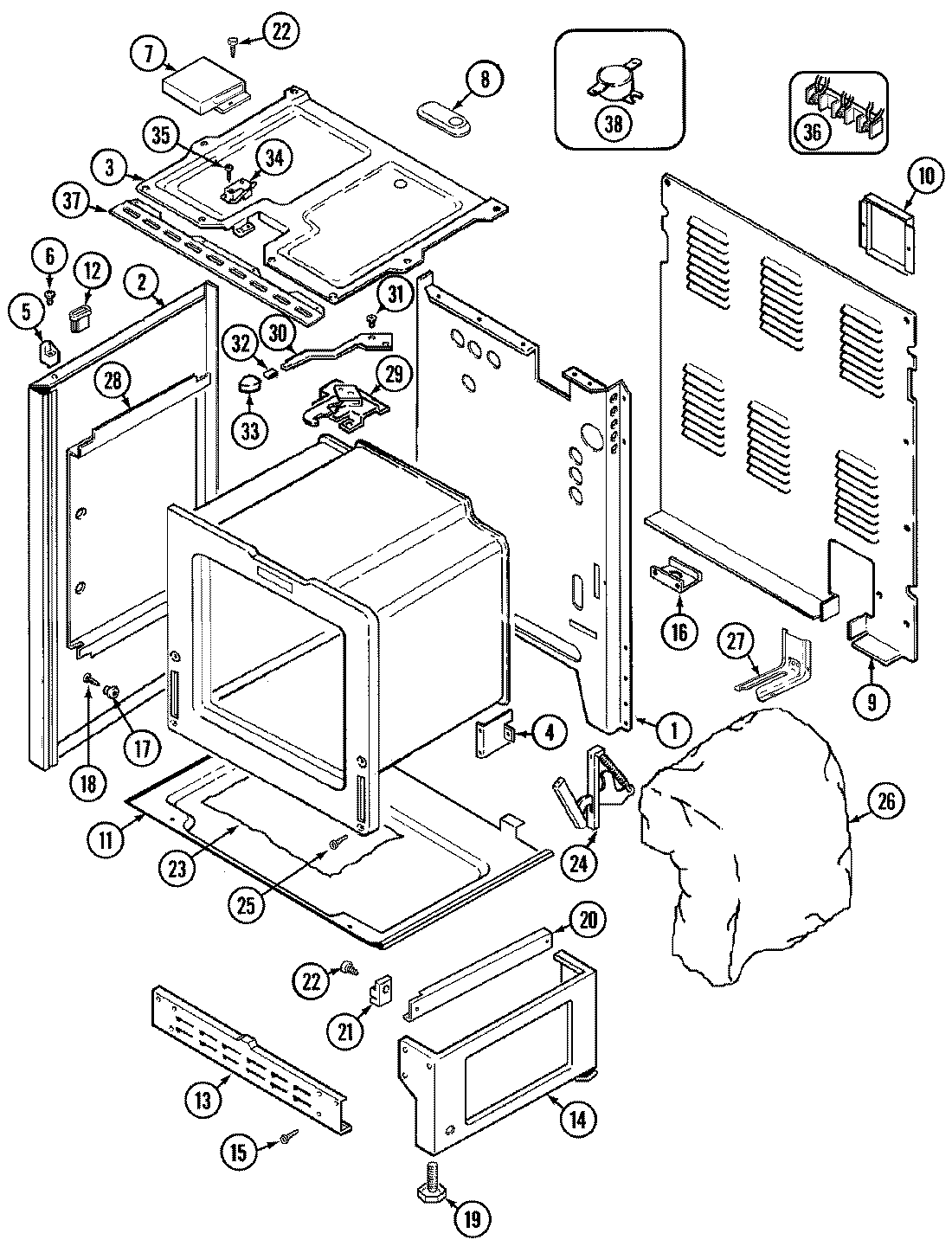

3882XRA 01 – BODY
Written by
in
3882XRA 01 – BODY
Products
Position
Product
1
MAY 4002F189-80
2
MAY 2618F085-74
2
MAY 2618F099-74
3
MAY 74001132
4
SUPPORT,OVEN REAR
5
SPACER, MAIN TOP (LT)
5
SPACER, MAIN TOP (RT)
6
MAY 7118P013-60
7
MAY 4005F398-80
8
COVER, VENT
9
MAY 4005F348-51
10
MAY 4005F427-51
11
MAY 3804F109-51
12
MAY 8007P023-60
13
MAY 4020W013-80
14
MAY 4020W007-67
15
MAY 7101P290-60
16
MAY 3605F174-51
17
MAY 8004P024-60
18
MAY 7101P300-60
19
MAY 7101P306-60
20
MAY 3406F028-51
21
MAY 8004P025-60
22
SCREW
23
MAY 8312P058-60
24
MAY 7106P049-60
25
SCREW, HINGE
26
MAY 4804F029-60
26
MAY 4804F030-60
27
MAY 7101P289-60
27
MAY 3801F218-51
28
MAY 3804F103-51
29
MAY 8002P025-60
29
MAY 7101P280-60
30
MAY 8009P016-60
31
MAY 7109P015-60
31
SCREW, LEVER
32
MAY 7112P003-60
33
MAY 7701P132-60
34
MAY 7403P228-60
35
MAY 7101P031-60
36
MAY 7401P041-60
37
MAY 3801F305-80
38
MAY 7403P160-60
←
