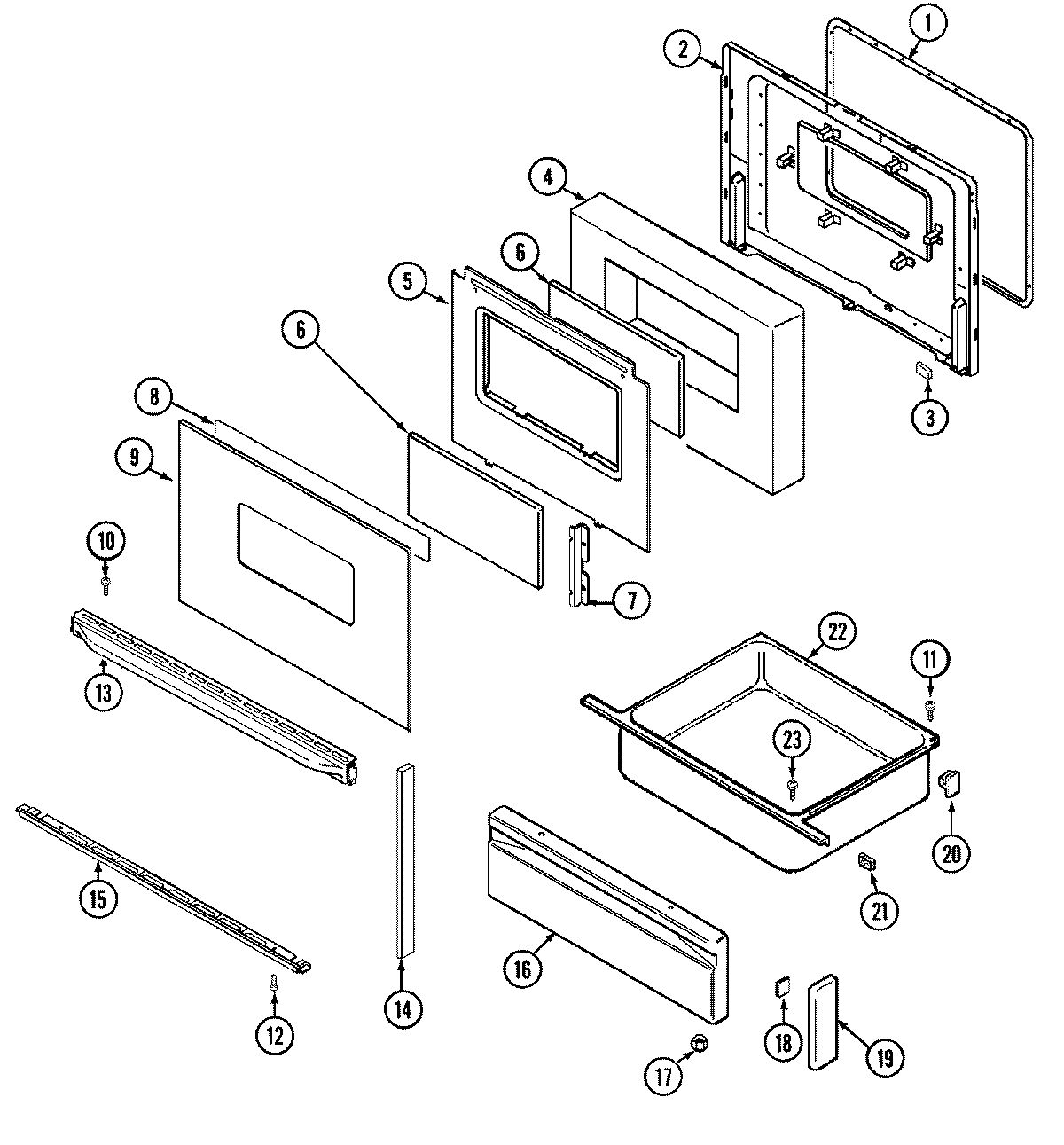

3888VVV 04 – DOOR/DRAWER (SER. PRE. 21)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 2402W209-19
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 7902P328-60
10MAY 7101P308-60
13MAY 7701P145-60
14MAY 8270P093-60
14MAY 7744P065-60
15MAY 7744P103-60
16MAY 2416F039-62
16SCREW
17WPW10131078 Whirlpool Nut Assembly
19MAY 7744P069-60
19MAY 74002740
20WP8004P026-60 Whirlpool Support
21MAY 7208P011-60
22MAY 3405F018-80
23WP7101P072-60 Whirlpool Screw
