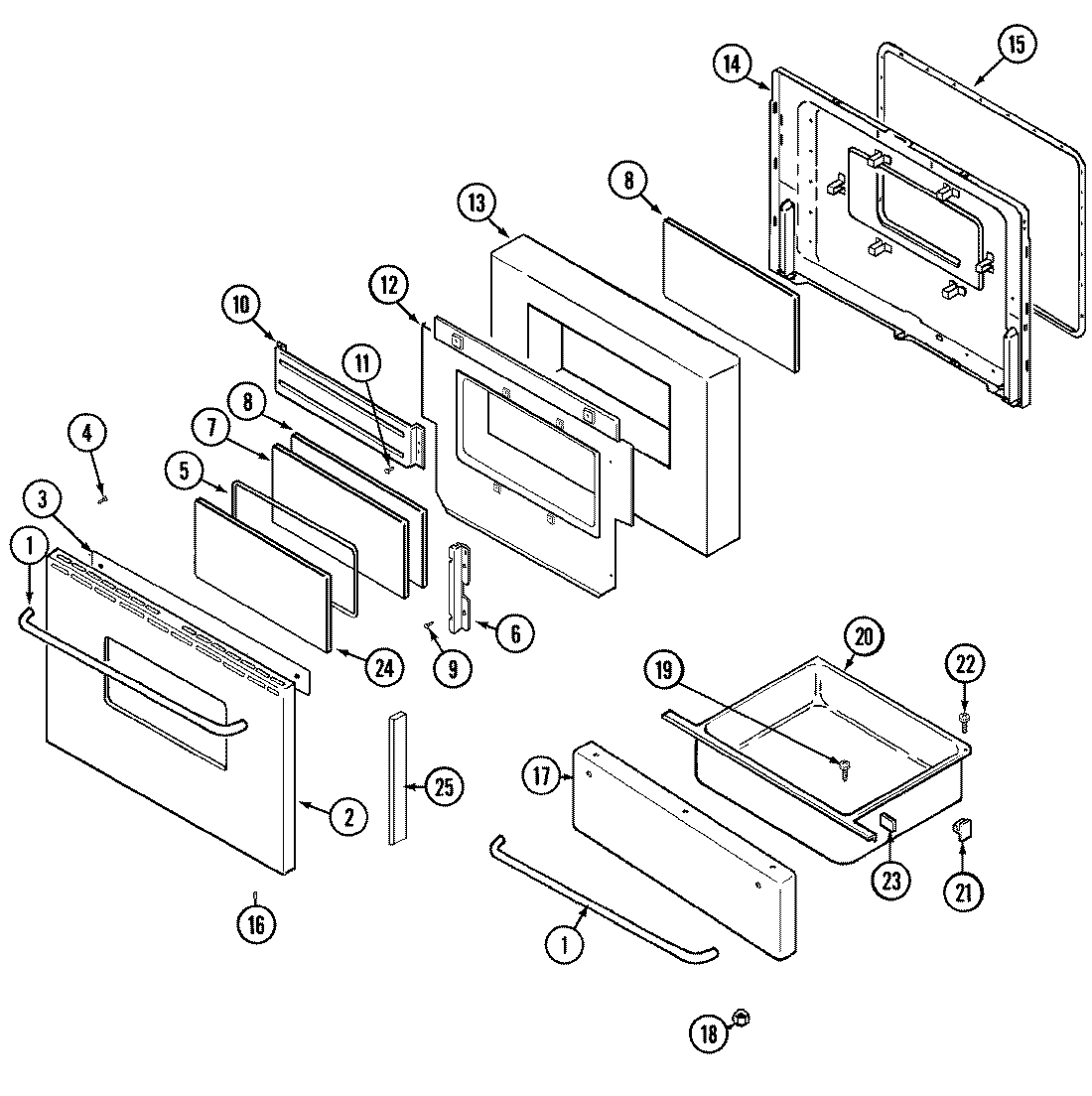

3888WVS 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74001071
2	MAY 74003047
3	MAY 74003146
5	MAY 7201P017-60
6	MAY 74003048
7	MAY 74002002
8	MAY 74001841
10	MAY 74003050
12	MAY 74001843
13	MAY 74001842
14	MAY 74001058
14	MAY 74003244
15	GASKT-DOOR OVEN
17	MAY 74003147
18	WPW10131078 Whirlpool Nut Assembly
19	WP7101P072-60 Whirlpool Screw
20	MAY 3405F019-80
20	MAY 74003618
21	MAY 74003566
21	WP8004P026-60 Whirlpool Support
21	WP488130 Whirlpool Air Conditioner Nut
22	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22	SCREW
23	MAY 7208P011-60
24	MAY 74001072
25	MAY 74001073
25	MAY 74001074
