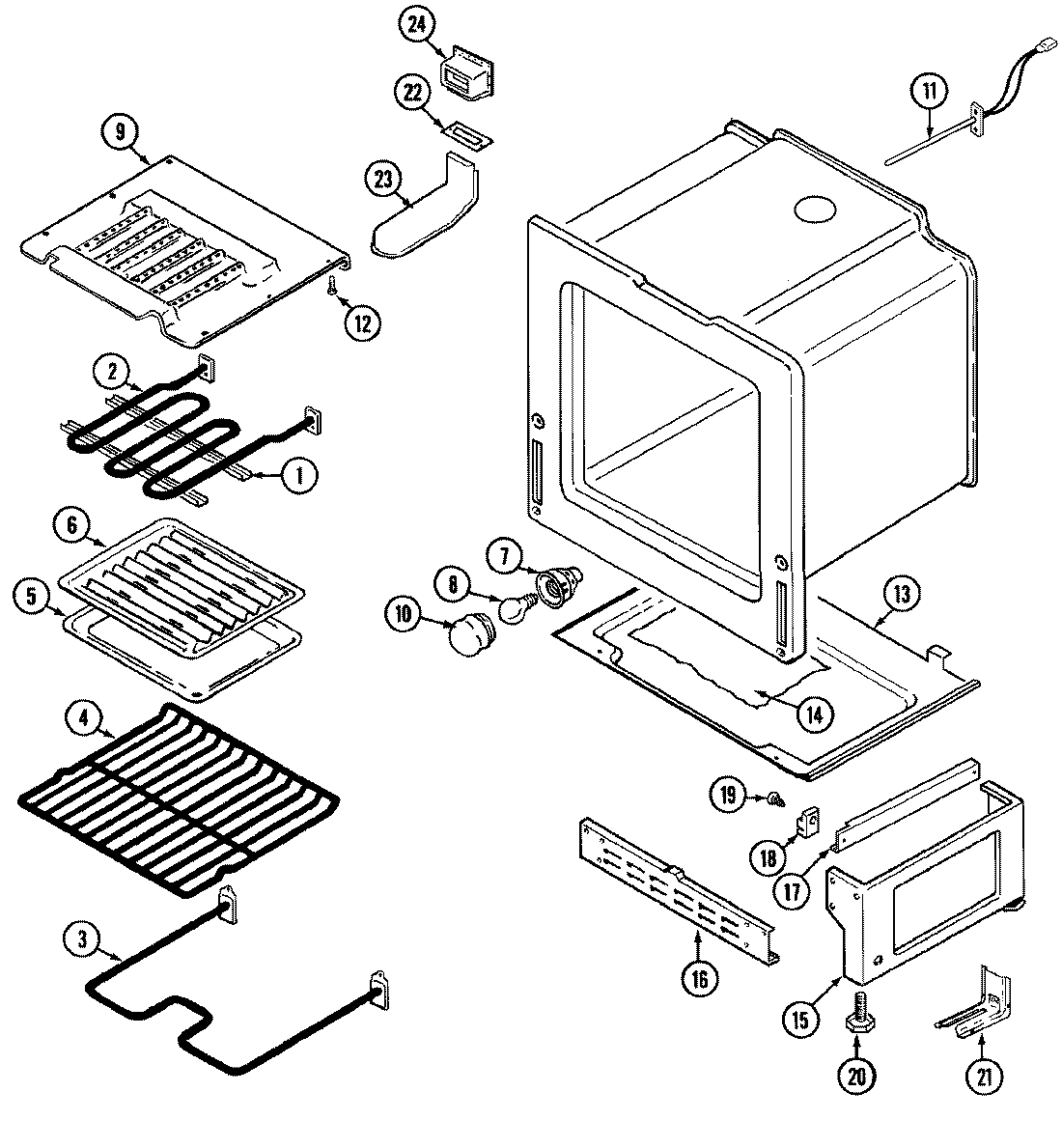

3888WVS 04 – OVEN/BASE

Products

Position	Product
1	MAY 3807F387-45
2	WPY04000059 Whirlpool Bake Element
3	MAY Y04000058
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003125
8	RANGE ONLY 40W 120V APPL BULB
9	MAY 3601F237-47
10	WP9781049 Whirlpool Light Lens
11	MAY 74003095
13	MAY 3804F112-51
14	MAY 8312P058-60
15	MAY 74003016
16	MAY 4020F001-80
16	SCREW
17	RUNNER, DRAWER
17	MAY 3406F028-51
18	MAY 74002312
18	MAY 74003566
18	WP488130 Whirlpool Air Conditioner Nut
19	MAY 74001449
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	W11665456 Whirlpool Range Level Foot
21	MAY 74002311
21	MAY 7101P344-60
22	MAY 7201P054-60
23	MAY 4006W107-45
24	MAY 3826W014-45
