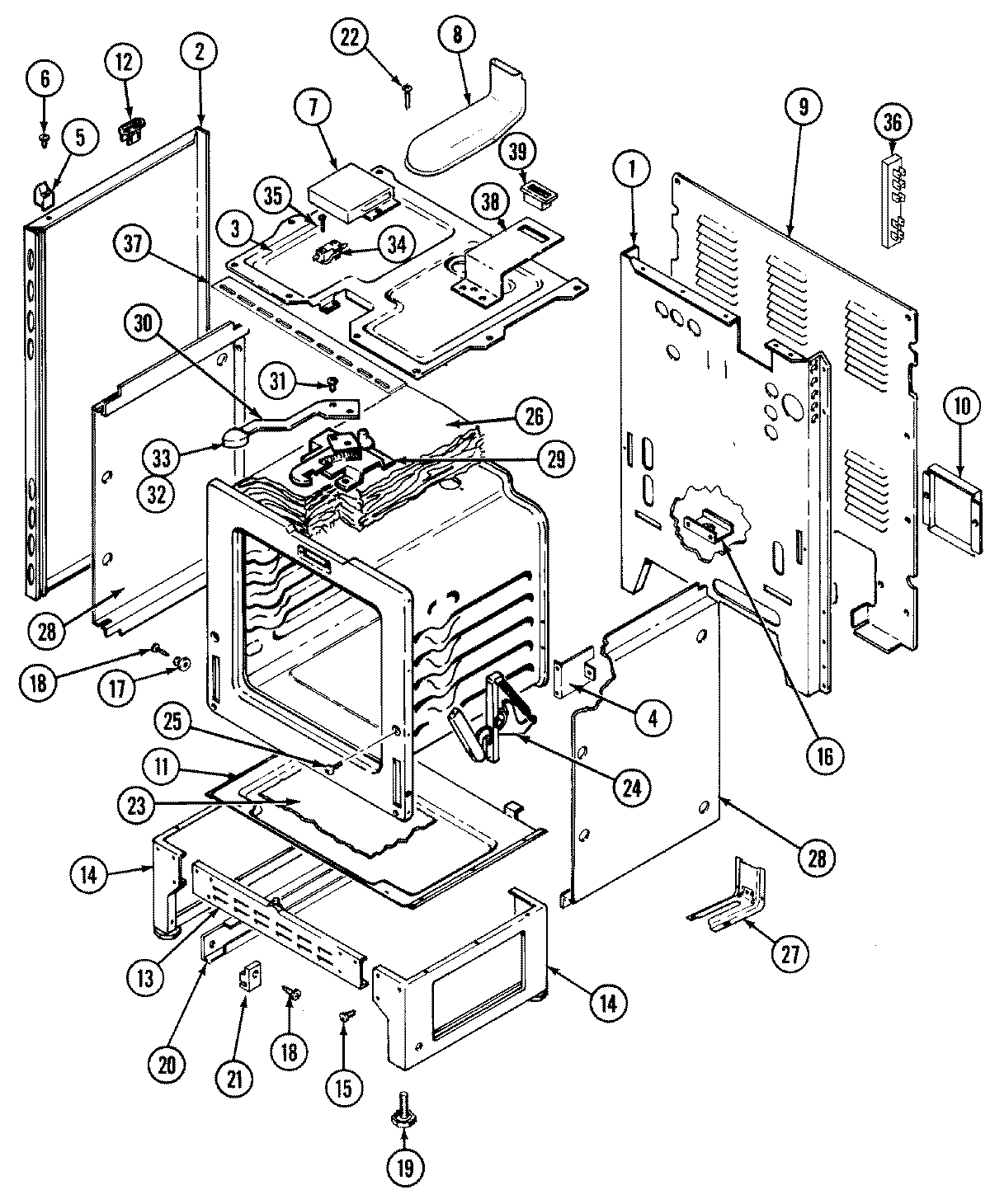

3888XRB 01 – BODY

Products

Position	Product
1	MAY 7403P160-60
1	MAY 4002F184-80
2	MAY 2618F099-70
2	MAY 2618F085-70
3	MAY 4011F207-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7118P013-60
7	MAY 4005F398-80
8	MAY 4005F350-45
9	MAY 4005F348-51
10	MAY 4005F427-51
11	MAY 3804F109-51
12	MAY 8007P023-60
13	MAY 4020F001-80
14	MAY 4020W007-80
14	MAY 4020F002-80
15	MAY 7101P290-60
16	MAY 3605F174-51
17	MAY 8004P024-60
18	MAY 7101P300-60
19	MAY 7101P306-60
20	MAY 3406F028-51
21	MAY 8004P025-60
23	MAY 8312P058-60
24	MAY 7106P033-60
25	SCREW, HINGE
26	MAY 4804F015-60
26	MAY 4804F016-60
27	MAY 7101P289-60
27	MAY 3801F218-51
28	MAY 3804F103-51
29	MAY 8002P025-60
29	MAY 7101P280-60
30	MAY 8009P016-60
31	MAY 7109P015-60
31	SCREW, LEVER
32	MAY 7112P003-60
33	MAY 7701P088-60
34	MAY 7403P228-60
35	SCREW
36	WPW10245259 Whirlpool Terminal Block
36	MAY 3801F302-45
37	MAY 3801F305-80
38	MAY 3801F312-45
39	MAY 7407P097-60
39	MAY 7407P089-60
