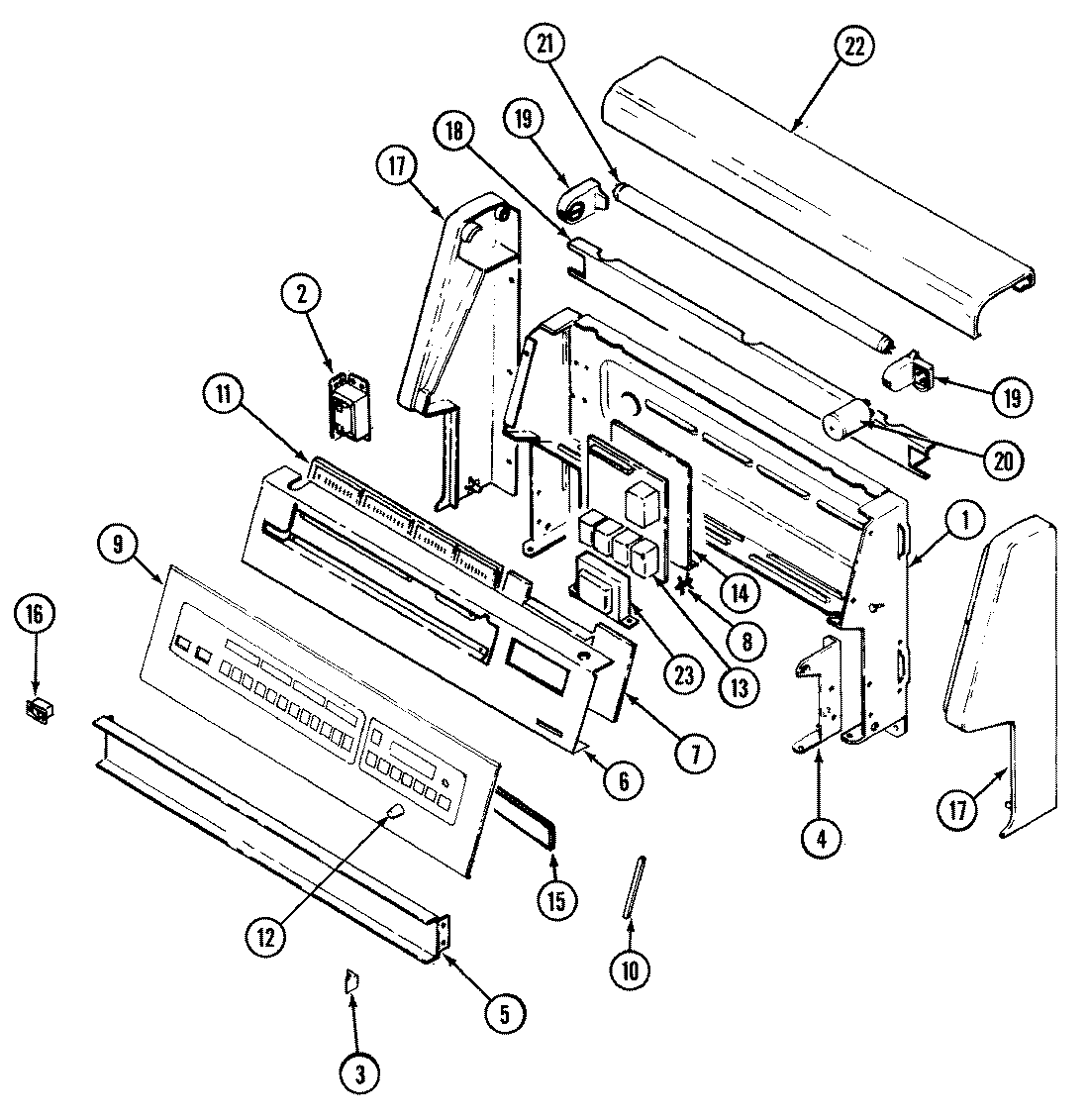

3889VRV-Z 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F091-51
2	MAY 7412P007-60
3	MAY 8010P083-60
3	MAY 7101P148-60
4	MAY 3418A088-34
4	MAY 3418A087-34
5	MAY 3802F088-51
6	MAY 7101P331-60
6	MAY 7703P396-60
7	MAY 3807F437-45
7	MAY 7601P174-60
8	MAY 8004P032-60
8	MAY 8004P035-60
9	MAY 74001019
9	MAY 4876S038-59
10	MAY 7720P160-60
11	MAY 7424P001-60
11	MAY 5170P164-60
12	MAY 7711P432-60
13	MAY 7428P011-60
14	MAY 3807F458-45
15	MAY 3604F201-80
16	74008717 Whirlpool White Rocker Switch
17	MAY 7726P073-60
17	MAY 7726P074-60
17	MAY 7103P129-60
18	MAY 3807F406-71
19	MAY 7408P029-60
19	MAY 7408P030-60
20	MAY 7415P001-60
21	MAY 7407P004-60
22	MAY 7724P059-60
23	MAY 5125A365-60
23	MAY 8004P020-60
23	SCREW (8BX3/8-NI)
23	MAY 7418P007-60
23	MAY 7103P126-60
23	MAY 5195D119-60
23	MAY 5170D174-60
23	MAY 5140D040-60
23	MAY 16000329
24	MAY 8112P108-60
24	MAY 8113P009-60
