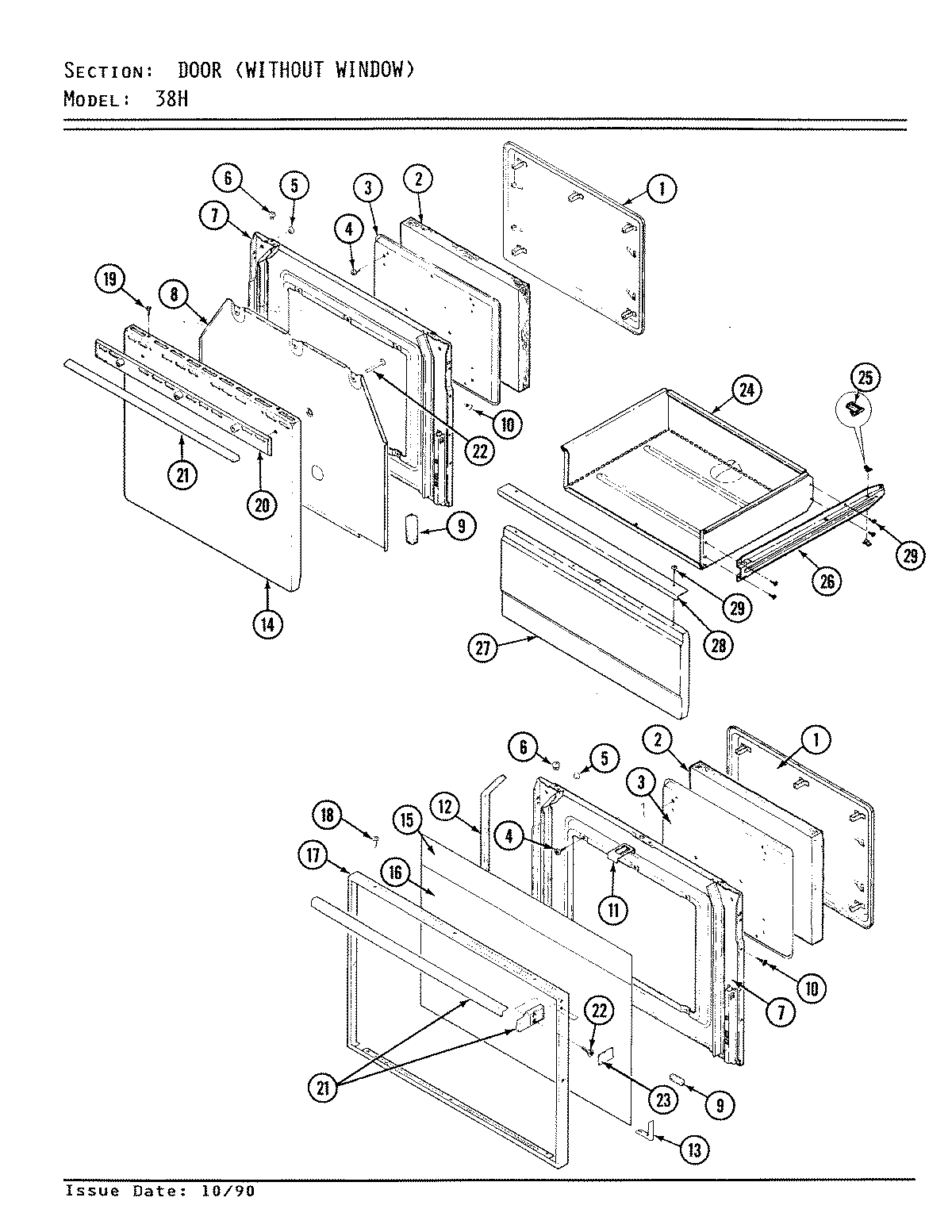

38HN-36TX-ON 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 2410W040-15
1	MAY 2410W040-19
2	MAY 7002P118-60
3	MAY 2410F012-51
5	MAY 8003P002-60
6	WP7103P114-60 Whirlpool Snap Nut
7	MAY 2402W153-15
7	MAY 2402W173-19
9	MAY 7208P011-60
10	MAY 7107P017-60
11	CLIP, DOOR
12	MAY 7208P002-60
13	MAY 8010P045-60
15	MAY 8270P078-60
16	MAY 7902P275-60
17	MAY 7706P243-60
18	WP7101P126-60 Whirlpool Screw
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	MAY 7701P047-60
22	MAY 7101P123-60
23	MAY 7728P068-60
23	MAY 7728P012-60
24	MAY 3405F008-80
25	MAY 8016P005-60
25	MAY 8016P004-60
26	MAY 3406F025-51
26	MAY 3406F020-80
27	MAY 2416F006-71
28	WP2411F013-71 Whirlpool Door Handle
29	MAY 7101P061-60
30	MAY 3802F044-51
