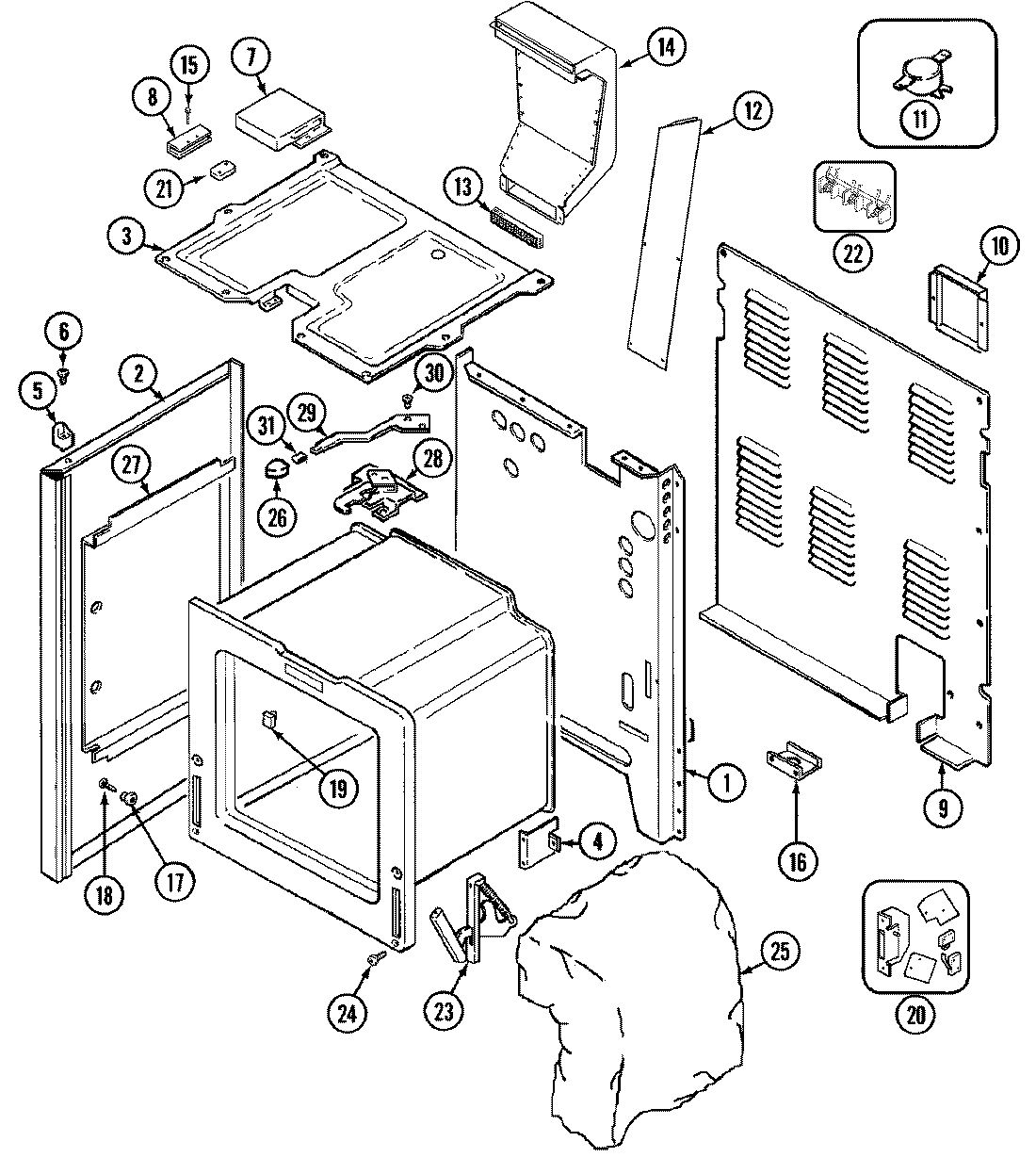

3962VVV 01 – BODY

Products

Position	Product
1	MAY 4002F202-80
2	MAY 2618F110-71
3	MAY 4011F240-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 4005F451-80
8	MAY 74001134
9	MAY 74001135
9	MAY 7401P016-60
10	MAY 74001136
11	MAY 7403P160-60
12	MAY 8270P087-60
12	MAY 74001137
13	MAY 74001138
14	MAY 4006W123-45
15	MAY 7101P031-60
16	W10190166 Whirlpool Service Bracket
16	MAY 3605F174-51
17	MAY 8004P024-60
18	WP400021-1 Whirlpool Screw
19	MAY 74001139
20	MAY 74001141
20	MAY 74001140
21	MAY 74001162
21	MAY 74001144
22	WPW10245259 Whirlpool Terminal Block
22	WP7103P027-60 Whirlpool Nut
23	MAY 7106P045-60
24	WP4159193 Whirlpool Screw
25	MAY 74001159
25	MAY 4804F036-60
26	MAY 7701P133-60
27	MAY 74001143
27	MAY 74001142
28	MAY 74001160
28	MAY 4804F028-60
28	MAY 7101P280-60
29	MAY 74002973
29	MAY 74001725
29	MAY 8009P024-60
30	MAY 74001161
31	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
31	MAY 7112P003-60
