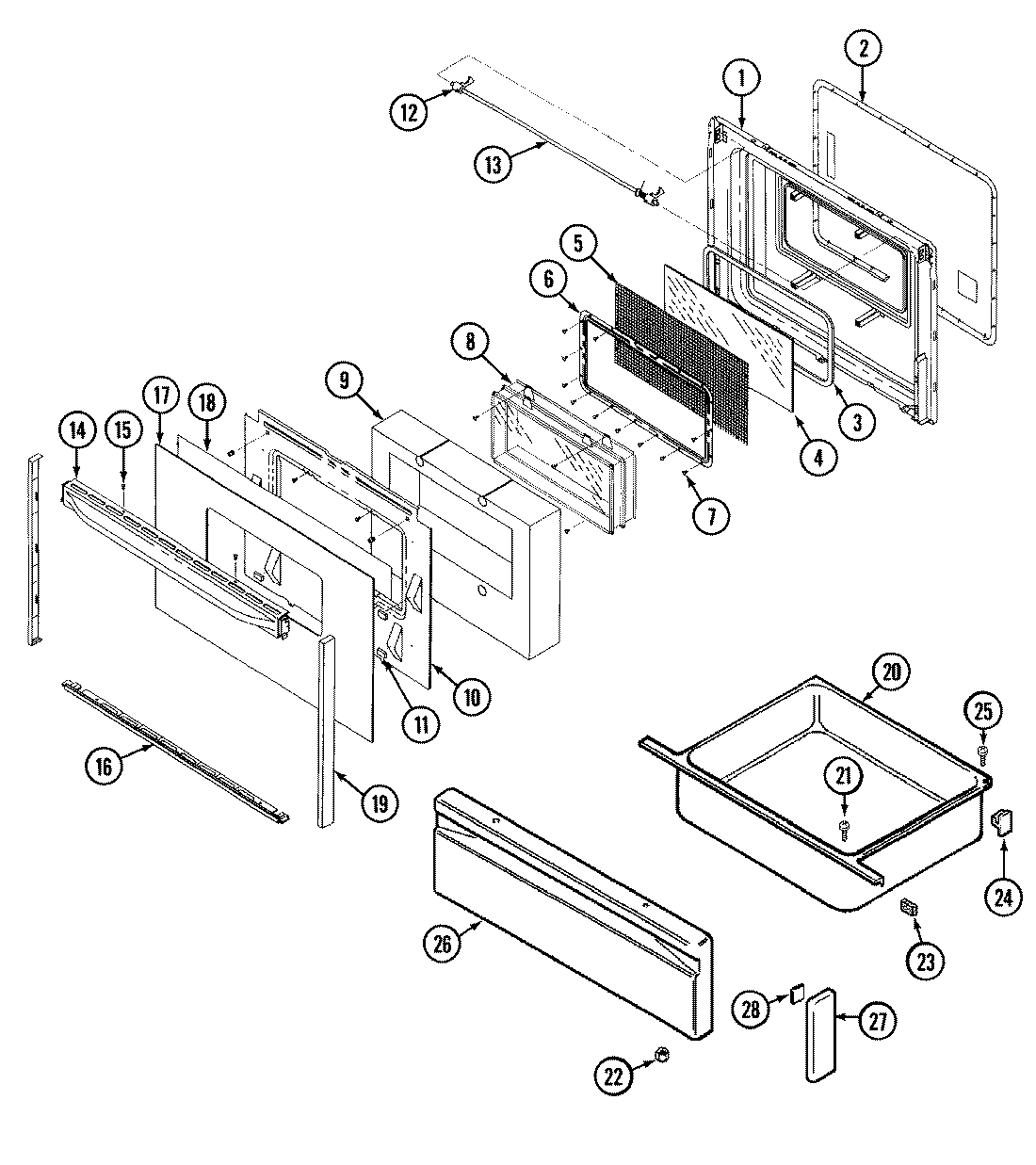

3968VVV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74001105
2	MAY 7201P059-60
3	MAY 74001106
4	MAY 7902P392-60
5	MAY 74001107
6	MAY 74001108
7	SCREW (8BX3/8-NI)
8	MAY 74001109
9	MAY 4804F051-60
10	MAY 3601F236-47
11	MAY 8010P085-60
12	MAY 74001111
12	MAY 74001168
12	MAY 74001112
12	MAY 74001110
13	MAY 74001113
14	MAY 74001171
15	MAY 7101P308-60
16	MAY 7744P103-60
17	MAY 74001174
18	TAPE, FOIL (3“ WIDE)
19	MAY 7744P065-60
19	MAY 8270P093-60
20	MAY 71003042
20	MAY 3405F018-80
21	WP7101P072-60 Whirlpool Screw
22	WPW10131078 Whirlpool Nut Assembly
23	MAY 8010P086-60
24	WP8004P026-60 Whirlpool Support
24	WP488130 Whirlpool Air Conditioner Nut
24	MAY 74003566
25	MAY 7101P290-60
26	MAY 2416F039-62
27	MAY 7744P069-60
28	TAPE
28	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
