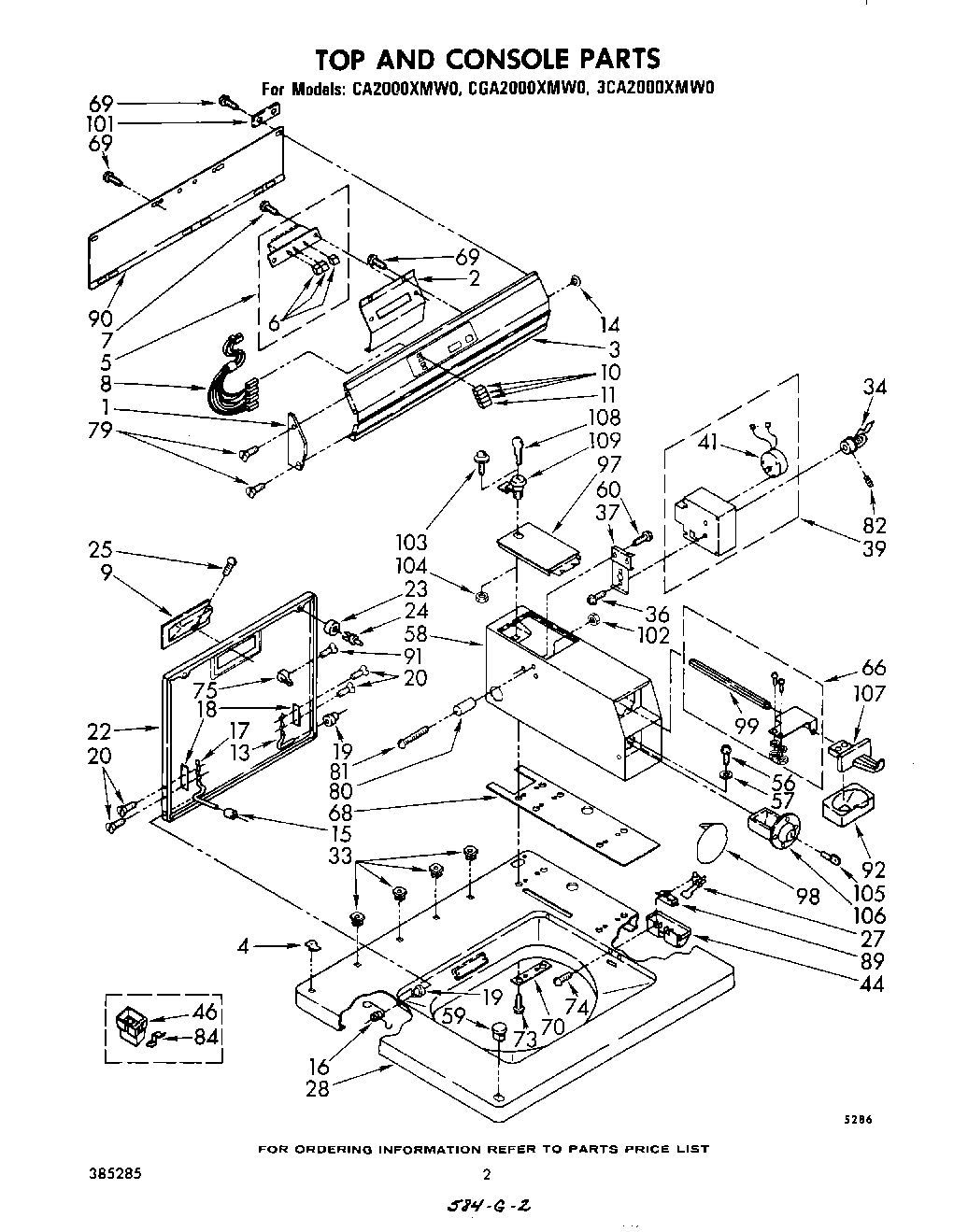

3CA2000XMW0 02 – TOP AND CONSOLEadmin2025-04-26T10:58:08+00:003CA2000XMW0 02 – TOP AND CONSOLE
Products
| Position | Product |
|---|
| 1 | Cap, End (L.H.) |
| 2 | Bracket, Control |
| 3 | Billboard, Console |
| 4 | Nut, Push-In (1) |
| 5 | Switch, Cycle Selector |
| 6 | Pushbutton (4) |
| 7 | WP965173 Whirlpool Dishwasher Screw |
| 8 | Lights, Indicator (120 Volt) (Use W\/\C\A\2\1\\00X\M\W0 & GCA2100XMW0) |
| 9 | Handle, Lid (New Avocado) |
| 9 | Handle, Lid (Golden Harvest) |
| 9 | Handle, Lid (Almond) |
| 9 | Handle, Lid (White) |
| 10 | Lens, Amber (3) |
| 11 | Lens, Yellow (1) |
| 13 | WP91770 Whirlpool Hinge |
| 14 | Plug, Button |
| 15 | Bumper, Lid Hinge |
| 16 | Spring, Hinge |
| 17 | Hinge, L.H. |
| 18 | WP21097 Whirlpool Pad |
| 19 | WP21258 Whirlpool Washer Lid Hinge Bearing |
| 20 | SCREW |
| 22 | Lid (Almond) |
| 22 | Lid (New Avocado) |
| 22 | Lid (White) |
| 22 | Lid (Golden Harvest) |
| 23 | BUMPER |
| 24 | WP356907 Whirlpool Rivet |
| 25 | Screw |
| 27 | Switch Actuator Assembly |
| 28 | Top (Golden Harvest) |
| 28 | Top (White) |
| 28 | Top (Almond) |
| 28 | Top (New Avocado) |
| 33 | Nut, Push-In (2) |
| 34 | Clutch, Timer |
| 36 | WP356418 Whirlpool Screw |
| 37 | Bracket, Timer |
| 39 | Timer, 60 Hz. (120 Volt) (Use W/Models CA2000XMW0 & GCA2000XMW0) |
| 39 | Timer, 50 Hz. (240 Volt) (Use W/Model 3CA2000XMW0) |
| 41 | Motor, Timer (50 Hz.) |
| 41 | Motor, Timer (60 Hz.) |
| 44 | WP359231 Whirlpool Shield |
| 46 | Cap, Terminal |
| 56 | Bolt, 5/16-24 x 3/4 (4) |
| 57 | Lockwasher, 5/16 |
| 58 | Meter Case Assembly (Almond) |
| 58 | Meter Cas |
| 58 | Meter Case Assembly (White) |
| 58 | Meter Case Assembly (New Avocado) |
| 59 | WP387371 Whirlpool Plug |
| 60 | 339805 Whirlpool Screw |
| 66 | WPL 385558 |
| 68 | WP3954812 Whirlpool Cushion |
| 69 | SCREW |
| 70 | Plate & Nut Assembly |
| 73 | Screw |
| 74 | Screw & Washer, Lid Switch (2) |
| 75 | Strike, Lid Switch |
| 79 | WP355515 Whirlpool Screw |
| 80 | Stop, Lid |
| 81 | WPL 132926 |
| 82 | Setscrew, 10-32 |
| 84 | WP90016 Whirlpool Clip |
| 89 | W10820036 Whirlpool Door Switch Kit |
| 90 | WPL 356441 |
| 91 | Screw & Washer |
| 92 | WP385421 Whirlpool Coin Operated Laundry Funnel |
| 97 | Door, Service (Almond) |
| 97 | Door, Service (Golden Harvest) |
| 97 | Door, Service (New Avocado) |
| 97 | W11283272 Whirlpool Washer Dryer Meter Case Access Door |
| 98 | WPL 376429 |
| 99 | WP8576635 Whirlpool Bolt |
| 101 | WPL 357856 |
| 102 | Nut, Hex |
| 103 | Screw & Washer |
| 104 | WP90406 Whirlpool Nut |
