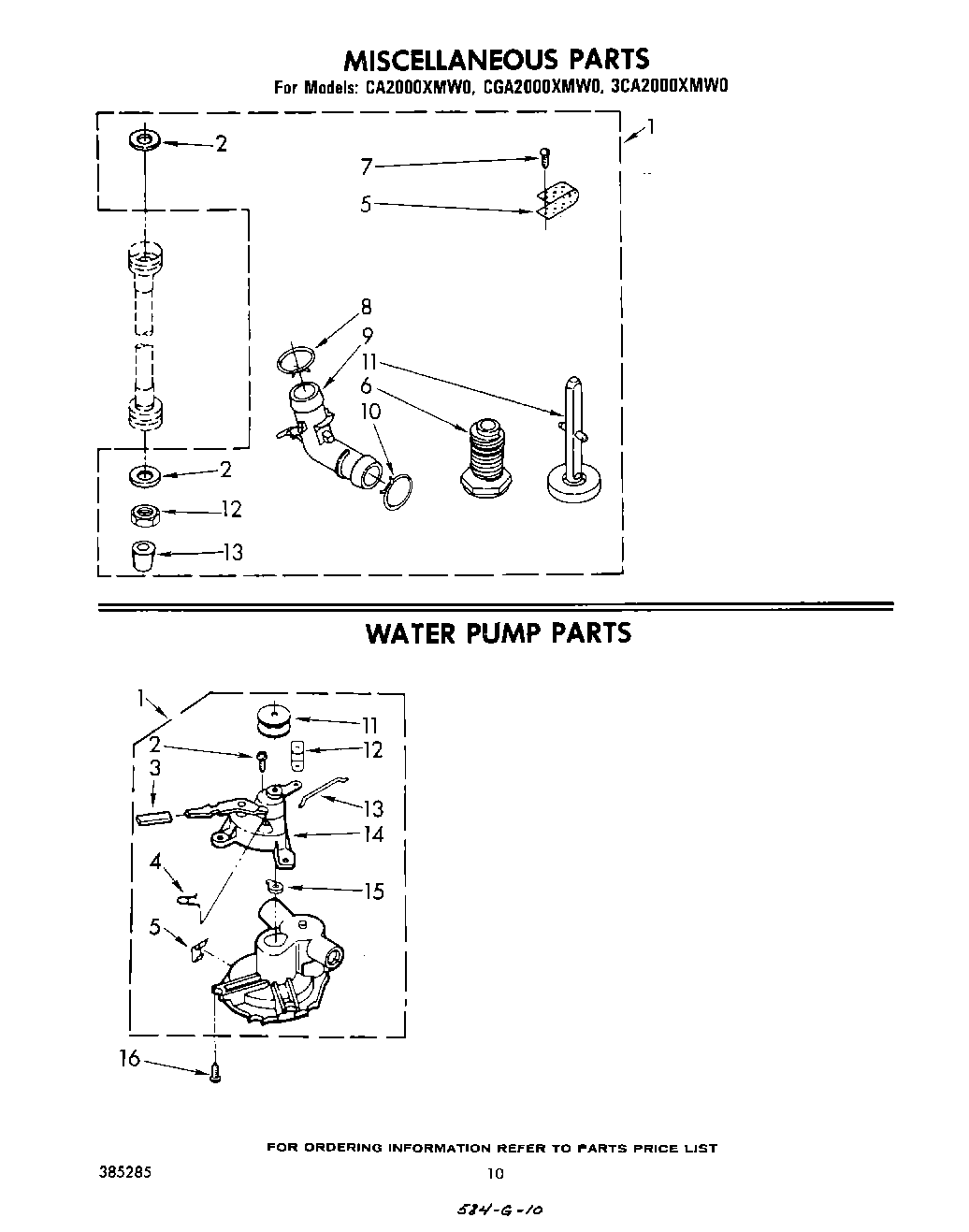

3CA2000XMW0 08 – MISCELLANEOUS , WATER PUMP , LITERATURE

Products

PositionProduct
1Miscellaneous Parts Bag
1Miscellaneous Parts Bag
1Pump Assembly
2WP273556 Whirlpool Screw
2WP16123 Whirlpool Washer
3Sleeve
4Spring, Toggle
5Clip, Retainer
5Strap, Ground
6WP367594 Whirlpool Leveling Feet
7Screw, Ground (10-24 x 1)
8WP356138 Whirlpool Hose Clamp
9Connector, Hose
10WP285655 Whirlpool Hose Clamp
11Pulley
11WP358594 Whirlpool Leveling Feet
12Lever, Valve
1290984 Whirlpool Nut
13Rod, Connecting
13WPL 356674
14Bearing Block Assembly
15Wick, Oil
16Sheet, Installation Instructions (Use W/Model 3CA2100XMW0)
16Sheet, Installation Instructions (Use W/Model CA2100XMW0 & GCA2100XMW0)
16Sheet, Top Lock Instructions
16386011 Whirlpool Screw
16List, Repair Parts
16WP72107 Whirlpool Touchup
16350938 Whirlpool Spray Gun
16350956 Whirlpool Spray Assembly
1672017 Whirlpool Appliance Touch-Up Paint White
16799344 Whirlpool Refrigerator Paint
16Leveler (Thinner)
16Almond (Uncut)
1672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16Golden Harvest
16Golden Harvest (Uncut)
1672109 Whirlpool Dacor Avocado Touch-Up Paint
16Paint, Spray 13 Oz. (Avocado)
16Enamel, New Avocado (1 Qt. Uncut)
16WPL 799351
16350930 Whirlpool White Spray Paint
