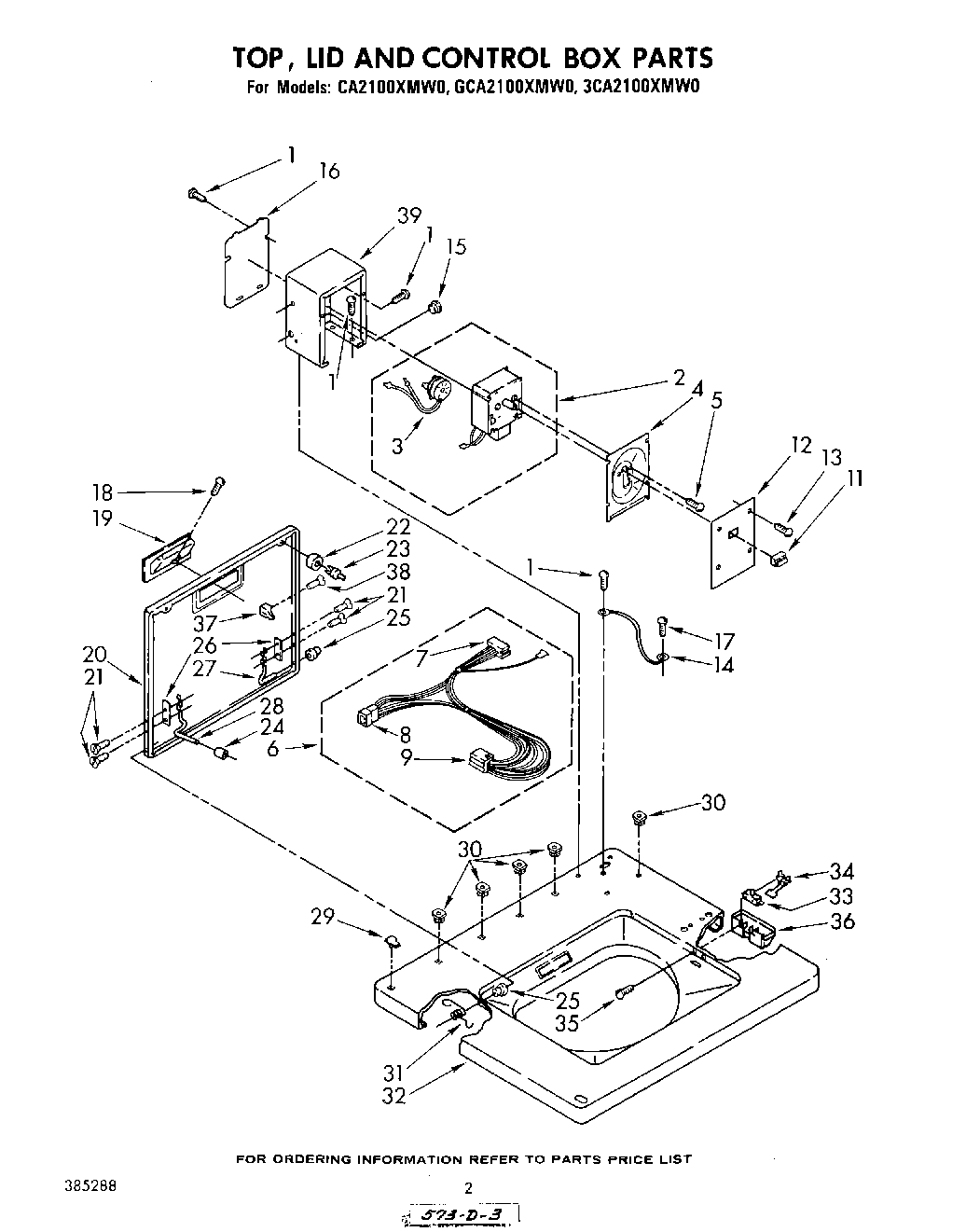

3CA2100XMW0 02 – TOP, LID AND CONTROL BOX

Products

Position	Product
1	SCREW
2	Timer, 60 Hz. (120 V.) (Use W/CA2100XMW0 & GCA2100XMW0)
2	Timer, 50 Hz. (240 V.) (Use W/3CA2100XMW0)
3	Motor, Timer (60 Hz.)
3	Motor, Timer (50 Hz.)
4	Plate, Timer Mounting
5	WP356418 Whirlpool Screw
6	Harness, Timer
7	W10876590 Whirlpool Connector
8	Cap, Terminal
9	Plug, Mult- Terminal (Uses Terminals 94613)
11	Button, Timer Set
12	Cover, Control Box
13	WP965173 Whirlpool Dishwasher Screw
14	Wire, Ground
15	Bushing, Snap
16	Panel, Rear
17	Screw
18	Screw
19	Handle, Lid (White)
20	Lid (White)
21	SCREW
22	BUMPER
23	WP356907 Whirlpool Rivet
24	Bumper, Lid Hinge
25	WP21258 Whirlpool Washer Lid Hinge Bearing
26	WP21097 Whirlpool Pad
27	WP91770 Whirlpool Hinge
28	Hinge, L.H.
29	Nut, Push-In (1)
30	Nut, Push-In (2)
31	Spring, Hinge
32	Top (White)
33	W10820036 Whirlpool Door Switch Kit
34	Switch Actuator Assembly
35	Screw & Washer, Lid Switch (2)
36	WP359231 Whirlpool Shield
37	Strike, Lid Switch
38	Screw & Washer
39	Box, Control (White)
