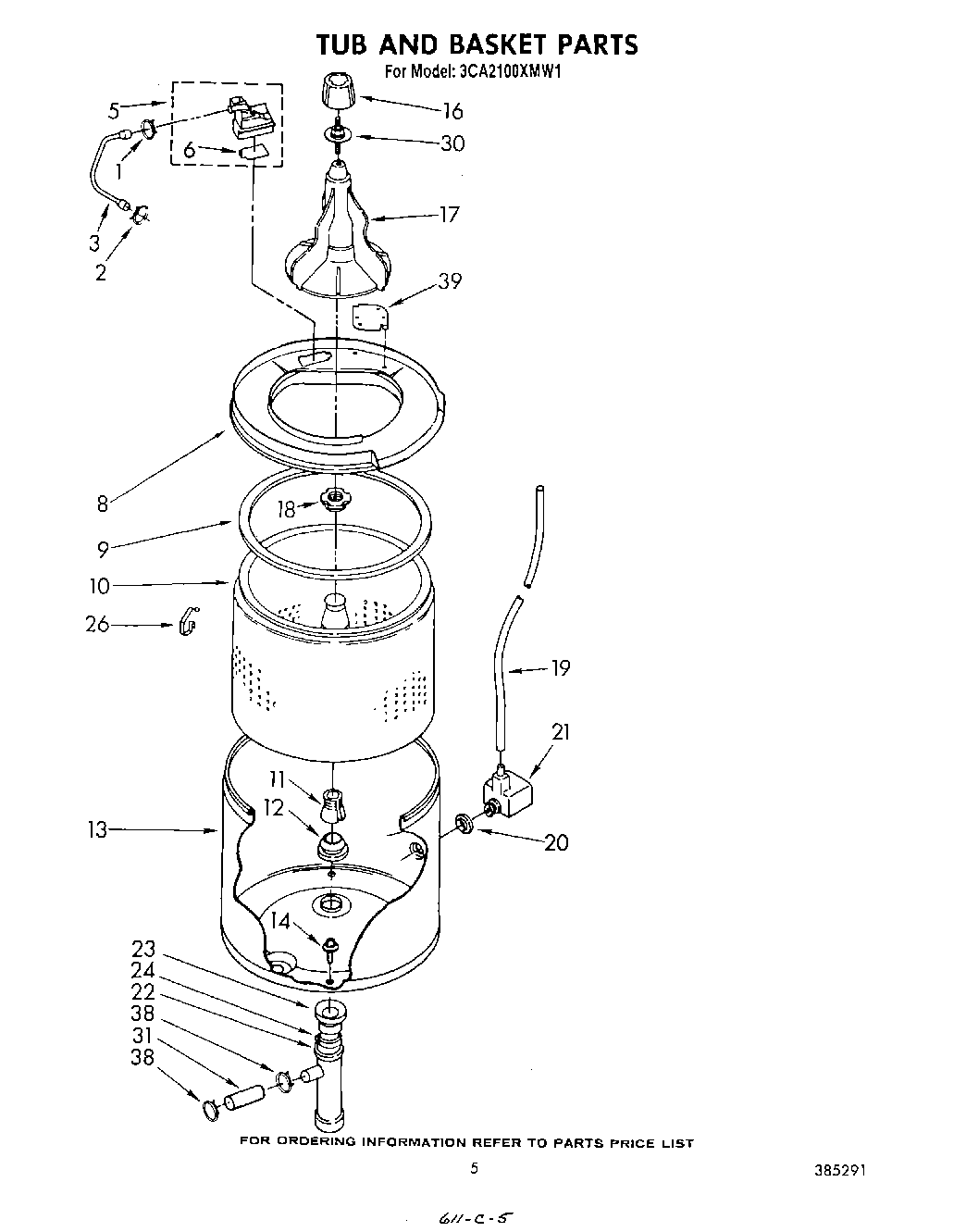

3CA2100XMW1 04 – TUB AND BASKET

Products

PositionProduct
2WP596669 Whirlpool Hose Clamp
3Hose, Water Inlet
5Inlet, Water
6Flapper
8Ring & Filter, Tub (Includes Illus. 22)
9Seal, Tub Ring
10Basket
11WP389140 Whirlpool Drive Block or Bell
12W10814296 Whirlpool Washer Center Post Seal Gasket
13Tub Assembly
14Screw & Washer, Tub (4)
16Agitator Cap
17Agitator
18WP21366 Whirlpool Spanner Nut
19WP353244 Whirlpool Hose
20Seal
21Air Dome Assembly
22Manifold
23Hose, Tub Outlet
24Clip, Hose
26Clip, Tub Ring (4)
30Screw & Seal Assembly
31Hose
38WP285655 Whirlpool Hose Clamp
39Plate, Snubber
