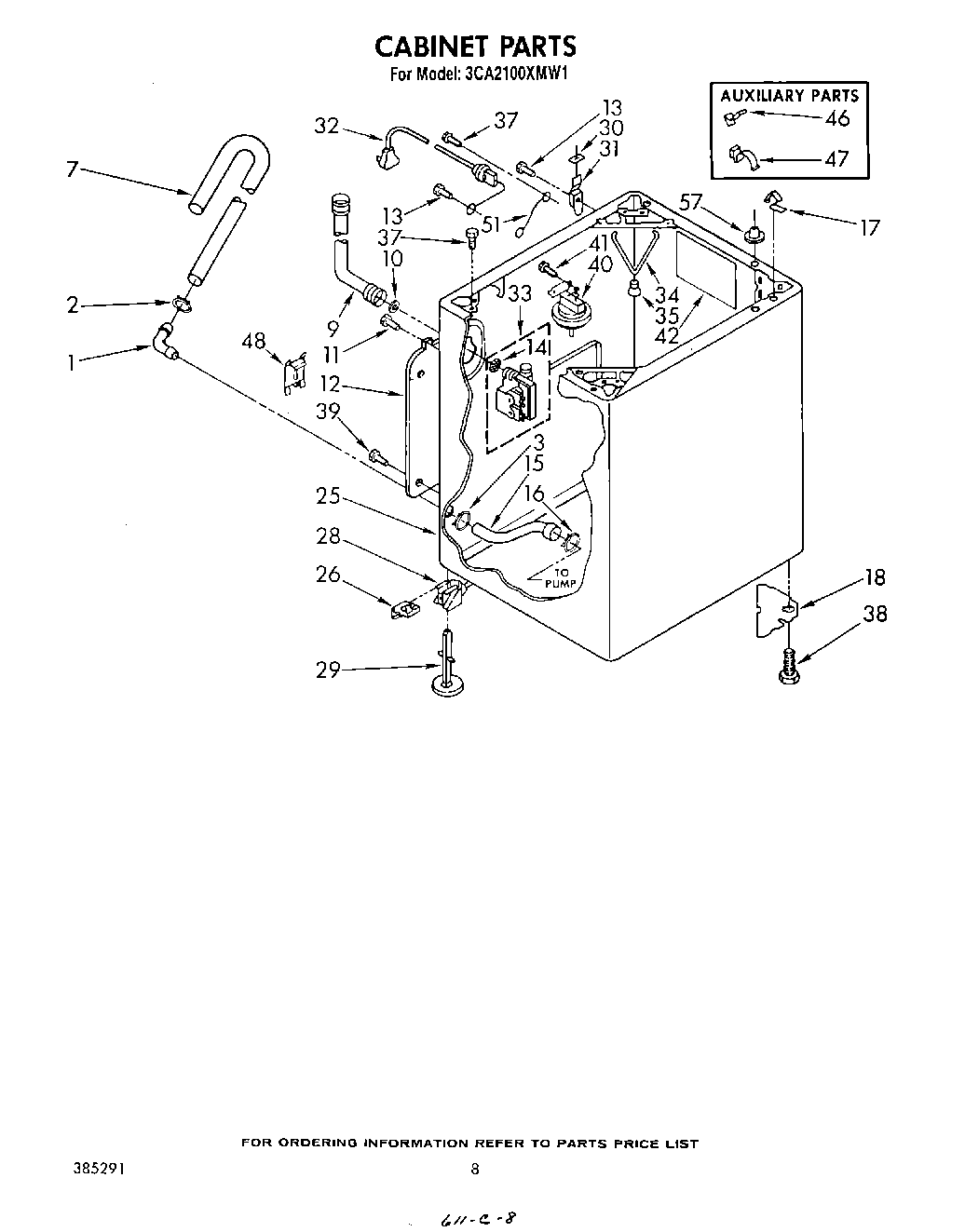

3CA2100XMW1 06 – CABINET

Products

Position	Product
1	Connector, Hose
2	WP356138 Whirlpool Hose Clamp
7	WP96743 Whirlpool Hose
9	WP89503 Whirlpool Washer Fill Hose
10	WP16123 Whirlpool Washer
11	WP3390631 Whirlpool Screw
12	Panel, Rear
13	SCREW
14	WP96160 Whirlpool Washer Inlet Valve Screen
15	Hose, Pump Discharge
16	WP285655 Whirlpool Hose Clamp
17	WP18776 Whirlpool Lock
18	Plate, Gusset
25	Cabinet
26	WP359364 Whirlpool Clip
28	Link, Leveling
29	WP358594 Whirlpool Leveling Feet
30	18849 Whirlpool Pad
31	Hinge, R.H.
31	Hinge, L.H.
32	Cord, Power (240 Volt) (Use W/Model 3LA5700XMW1)
33	285874 Whirlpool Valve Assembly
34	Spring, Snubber
35	Pad, Snubber
38	WP367594 Whirlpool Leveling Feet
40	Switch, Water Level
41	WP90767 Whirlpool Screw
42	Barrier, Splash
46	8528351 Whirlpool Clip
47	WP90016 Whirlpool Clip
48	Plug, Cabinet
51	WPL 364089
57	Locator, Top
