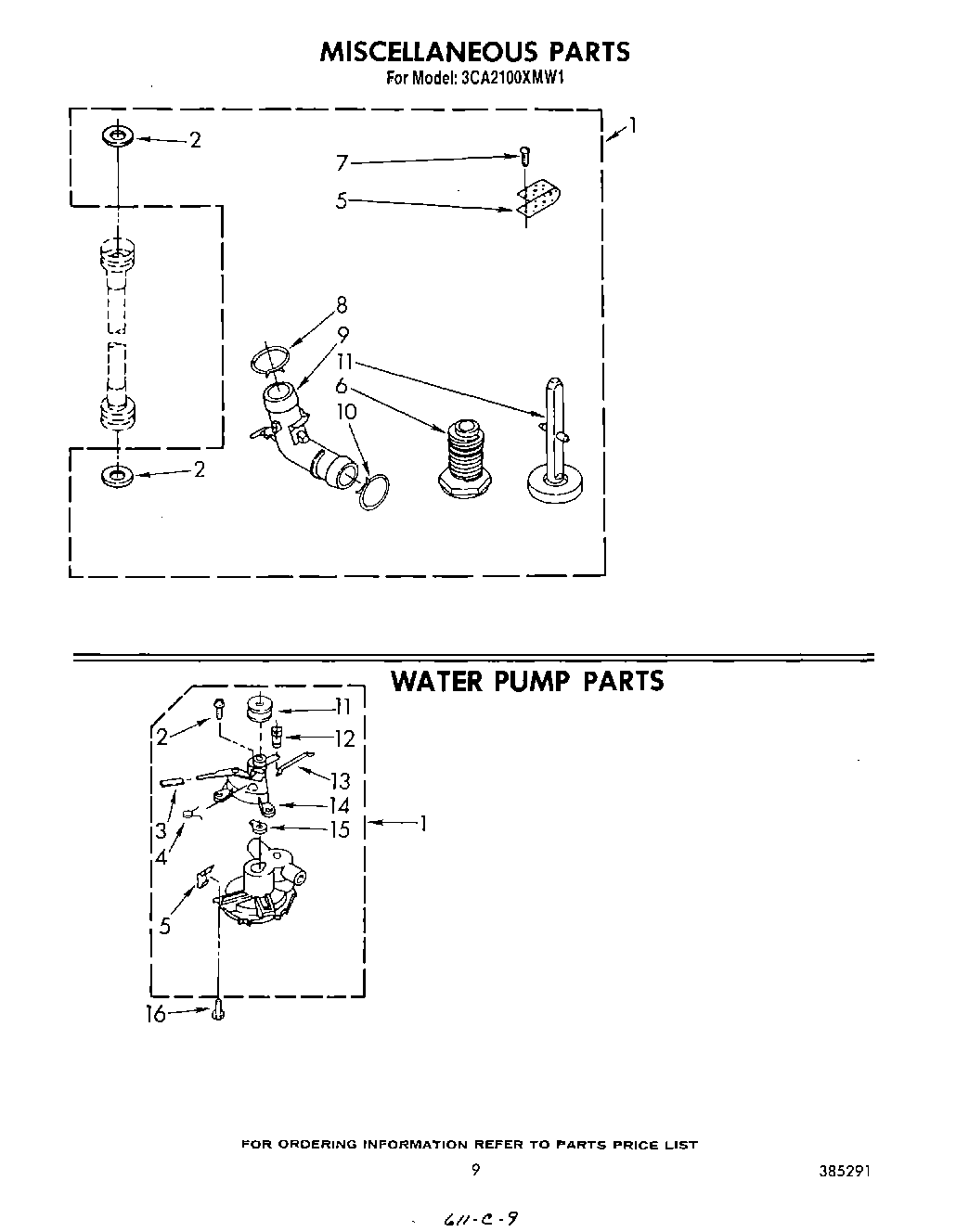

3CA2100XMW1 07 – MISCELLANEOUS , WATER PUMP – Aparts

3CA2100XMW1 07 – MISCELLANEOUS , WATER PUMP

Products

Position	Product
1	Pump Assembly
1	Miscellaneous Parts Bag
2	WP273556 Whirlpool Screw
2	WP16123 Whirlpool Washer
3	Sleeve
4	Spring, Toggle
5	Clip, Retainer
5	Strap, Ground
6	WP367594 Whirlpool Leveling Feet
7	Screw, Ground (10-24 x 1)
8	WP356138 Whirlpool Hose Clamp
9	Connector, Hose
10	WP285655 Whirlpool Hose Clamp
11	WP358594 Whirlpool Leveling Feet
11	Pulley
12	Lever, Valve
13	Rod, Connecting
14	Bearing Block Assembly
15	Wick, Oil
16	386011 Whirlpool Screw
