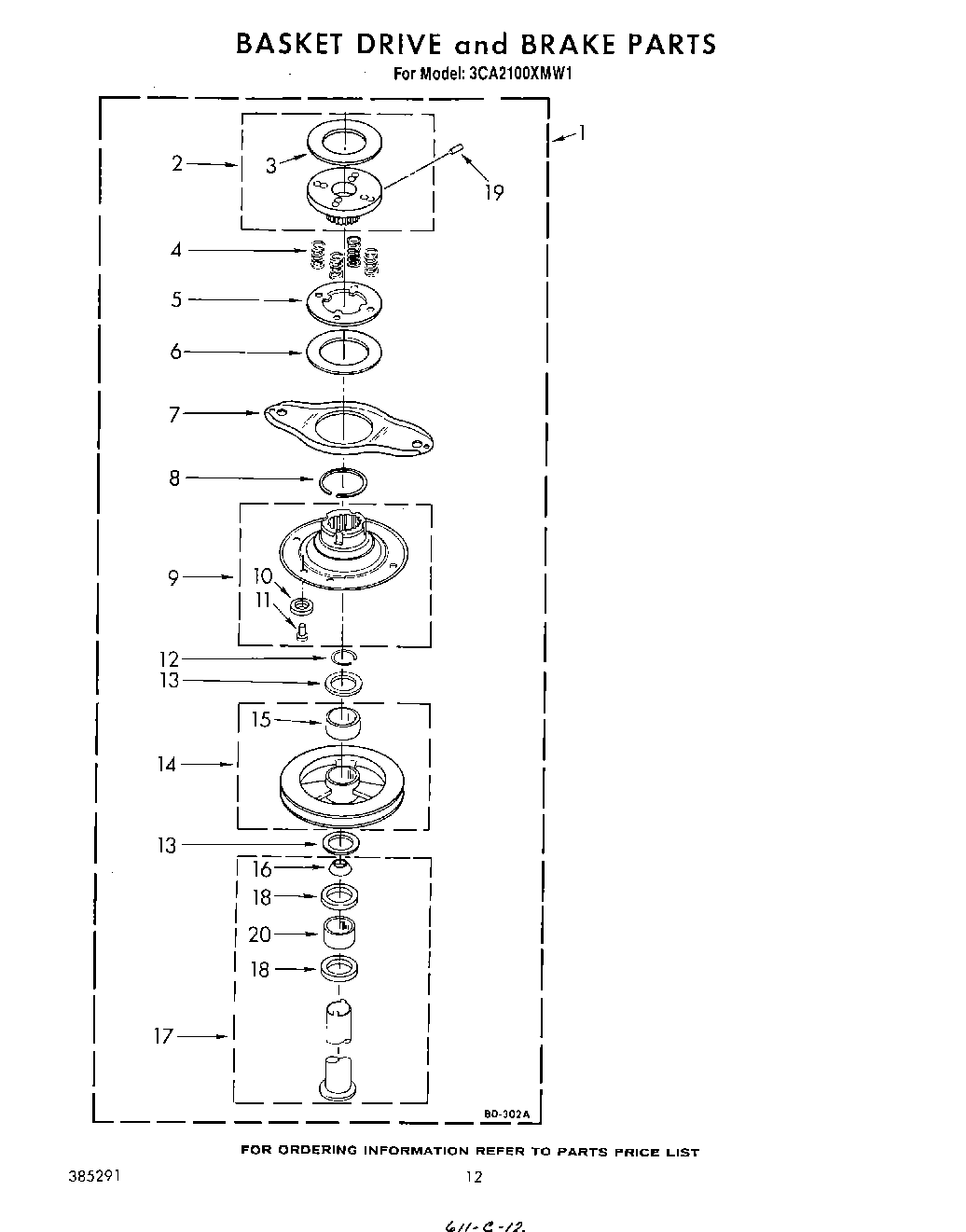

3CA2100XMW1 10 – BASKET DRIVE AND BASKET

Products

PositionProduct
1Basket Drive & Brake (Refer To Page 9 For Further Breakdown)
2Drum, Brake (Upper)
3Lining, Basket Brake (Upper)
4Spring, Basket Drive (Orange) (4)
5Drum, Brake (Lower)
6Lining, Basket Brake (Lower)
7Yoke, Brake
8Ring, Snap
9Plate & Lining, Basket Drive
10Lining, Basket Drive (Set of 3)
11Eyelet (3)
12WPW10083200 Whirlpool Wire Ring
13Washer, Thrust (2)
14Pulley, Basket Drive
15Bearing, Drive Pulley
16WP91939 Whirlpool Shaft Seal
17Drive Tube & Bearing, Basket
18WP356427 Whirlpool Shaft Seal
19Set Screw, 5/16-18X 13/16
20Spacer, Drive Tube
