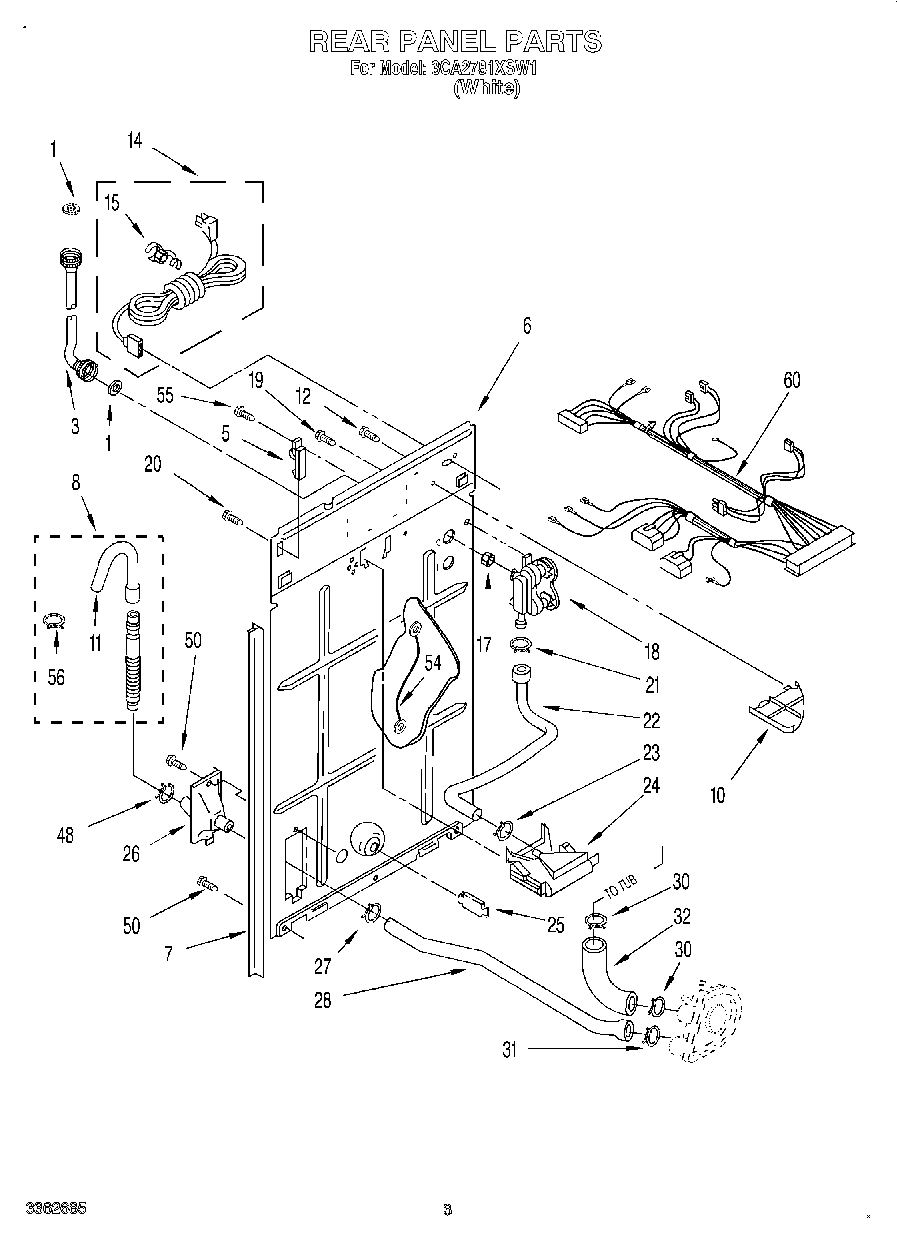

3CA2781XSW1 02 – REAR PANEL

3CA2781XSW1 02 – REAR PANEL

Written by

in

3CA2781XSW1 02 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
10WPL 3348424
11WP3357027 Whirlpool Nozzle Assembly
12SCREW
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285874 Whirlpool Valve Assembly
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
28WP3348552 Whirlpool Hose
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
48WP356138 Whirlpool Hose Clamp
50WP3390631 Whirlpool Screw
54WPL 364089
55WP308685 Whirlpool Microwave Screw
56WP3357331 Whirlpool Clamp
60Harness, Wiring (For Detail See Wiring Harness Parts Page.) Also See Clips.
