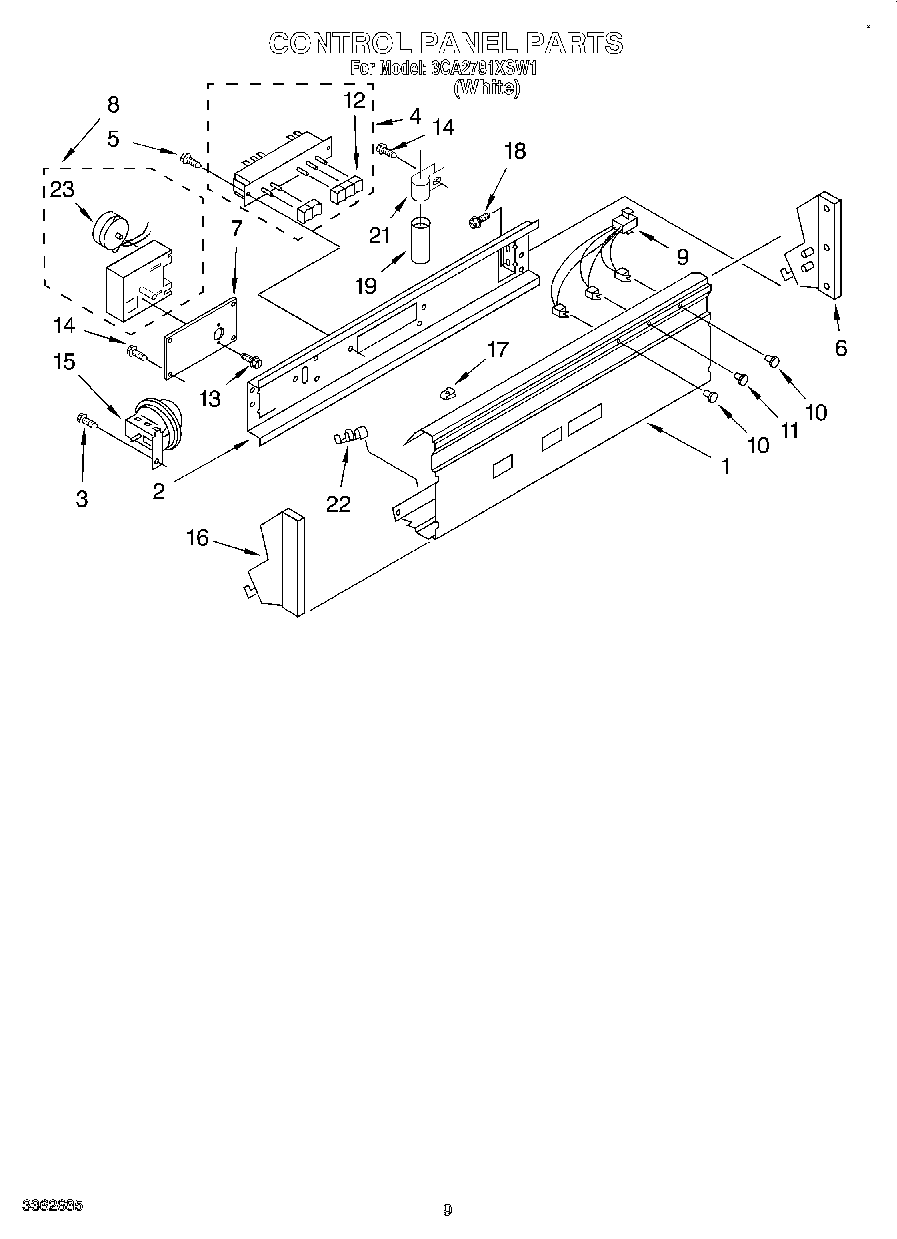

3CA2781XSW1 07 – CONTROL PANEL

Products

Position	Product
1	Panel, Console
2	Bracket, Control
3	WP90767 Whirlpool Screw
4	W10330142 Whirlpool Push Button Switch
5	WP965173 Whirlpool Dishwasher Screw
6	WPL 63795
7	Bracket, Timer
8	Timer
9	Lights, Indicator
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	Pushbutton (5)
13	WP356418 Whirlpool Screw
14	SCREW
15	Switch, Water Level
16	Cap, End (L.H.)
17	WP689559 Whirlpool Nut
18	WPL 355326
19	CAPACITOR
21	357030 Whirlpool Clamp
22	W10113937 Whirlpool Clamp
23	Motor, Timer
