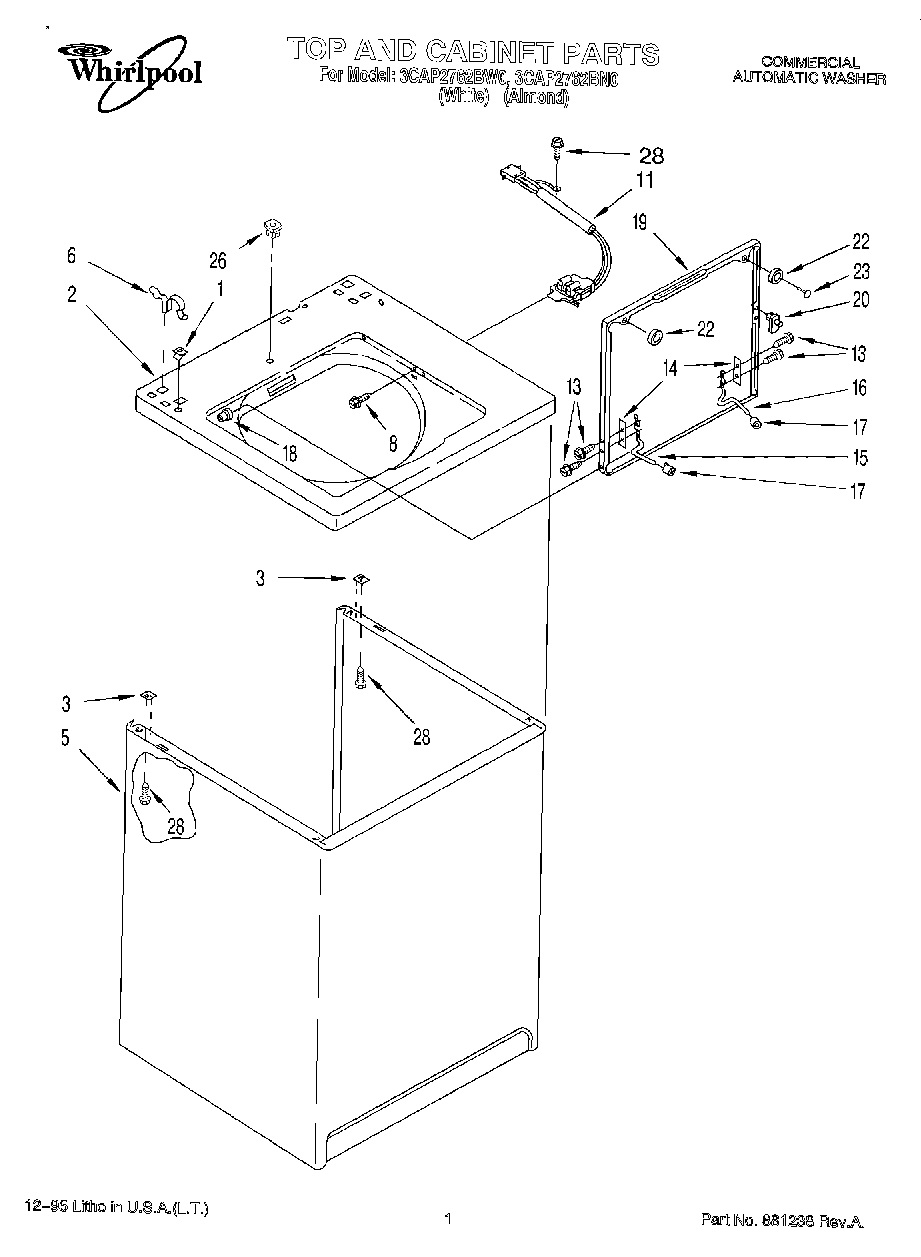

3CAP2762BW0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP285195 Whirlpool Sealer Assembly
	Wiring, Diagram
	Sheet, Installation Instructions
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL 261880
	Golden Harvest (Uncut)
	List, Repair Parts
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
1	Nut, Push-In (2)
2	Top (White)
2	Top (Almond)
3	WP62750 Whirlpool Spacer
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
23	WP356907 Whirlpool Rivet
26	Stop, Push-In Top
28	SCREW
