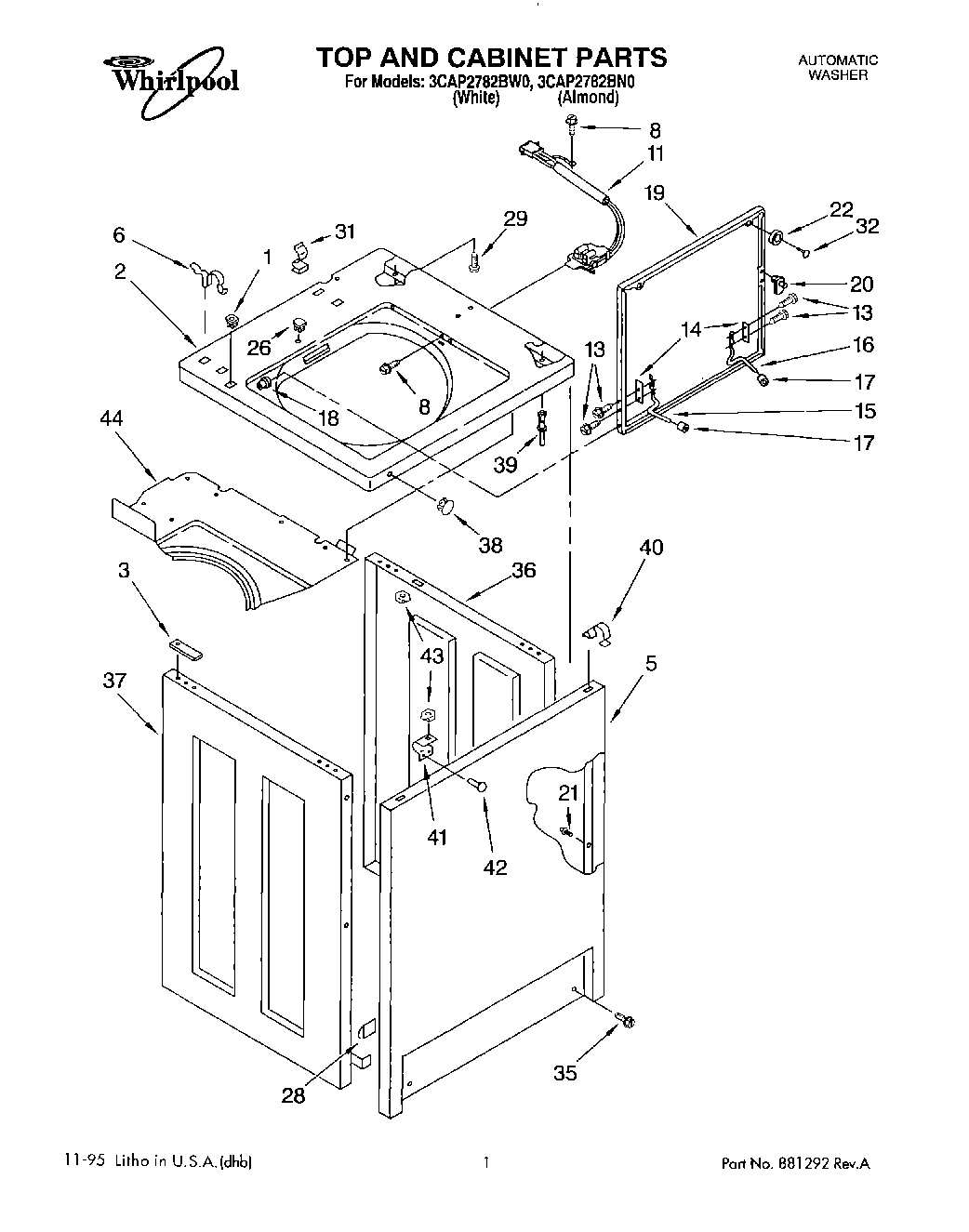

3CAP2782BN0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT881292
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	Sheet, Installation Instructions
	Shipping Kit
	Golden Harvest (Uncut)
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	WPL LIT3947644
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WP285195 Whirlpool Sealer Assembly
1	Nut, Push-In (2)
2	Top (For Almond Model)
2	Top (White)
3	Spacer, Cabinet To Top (4)
5	WP3358500 Whirlpool Panel
5	Panel, Front (For Almond Model)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
19	Lid (For Almond Model)
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
26	Stop, Push-In Top
28	WP98234 Whirlpool Nut
29	Screw (2)
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (White)
36	Panel, R. H. (Almond)
37	Panel, L. H. (White)
37	Panel, L. H. (Almond)
38	WP387371 Whirlpool Plug
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
41	Bracket, Lock
42	Rivet (2)
43	WP90406 Whirlpool Nut
44	Shield, Lid
