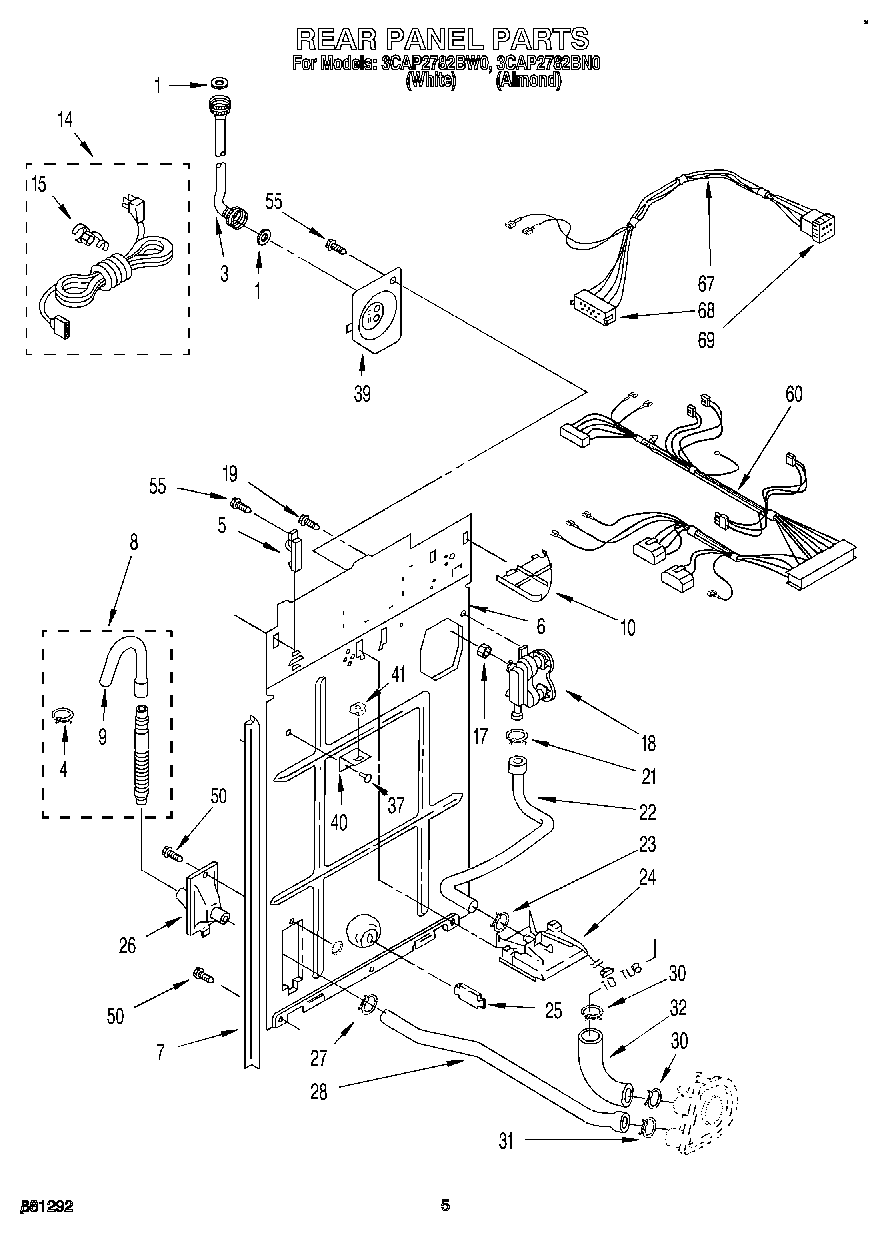

3CAP2782BN0 04 – REAR PANEL

3CAP2782BN0 04 – REAR PANEL

Written by

in

3CAP2782BN0 04 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WPW10489643 Whirlpool Fill Hose
4WP3357331 Whirlpool Clamp
5Hinge, Console (2)
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9WP3357027 Whirlpool Nozzle Assembly
10WPL 3348424
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285874 Whirlpool Valve Assembly
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WP3348552 Whirlpool Hose
30WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
37Rivet (2)
39285930 Whirlpool Plate
40Bracket, Top Lock
41WP90406 Whirlpool Nut
50WP3390631 Whirlpool Screw
55WP308685 Whirlpool Microwave Screw
60WP3359812 Whirlpool Wire Harness
67Harness, Timer (Includes Illus. 68 & 69)
68W10876590 Whirlpool Connector
69Cap, Terminal (15 Way)
