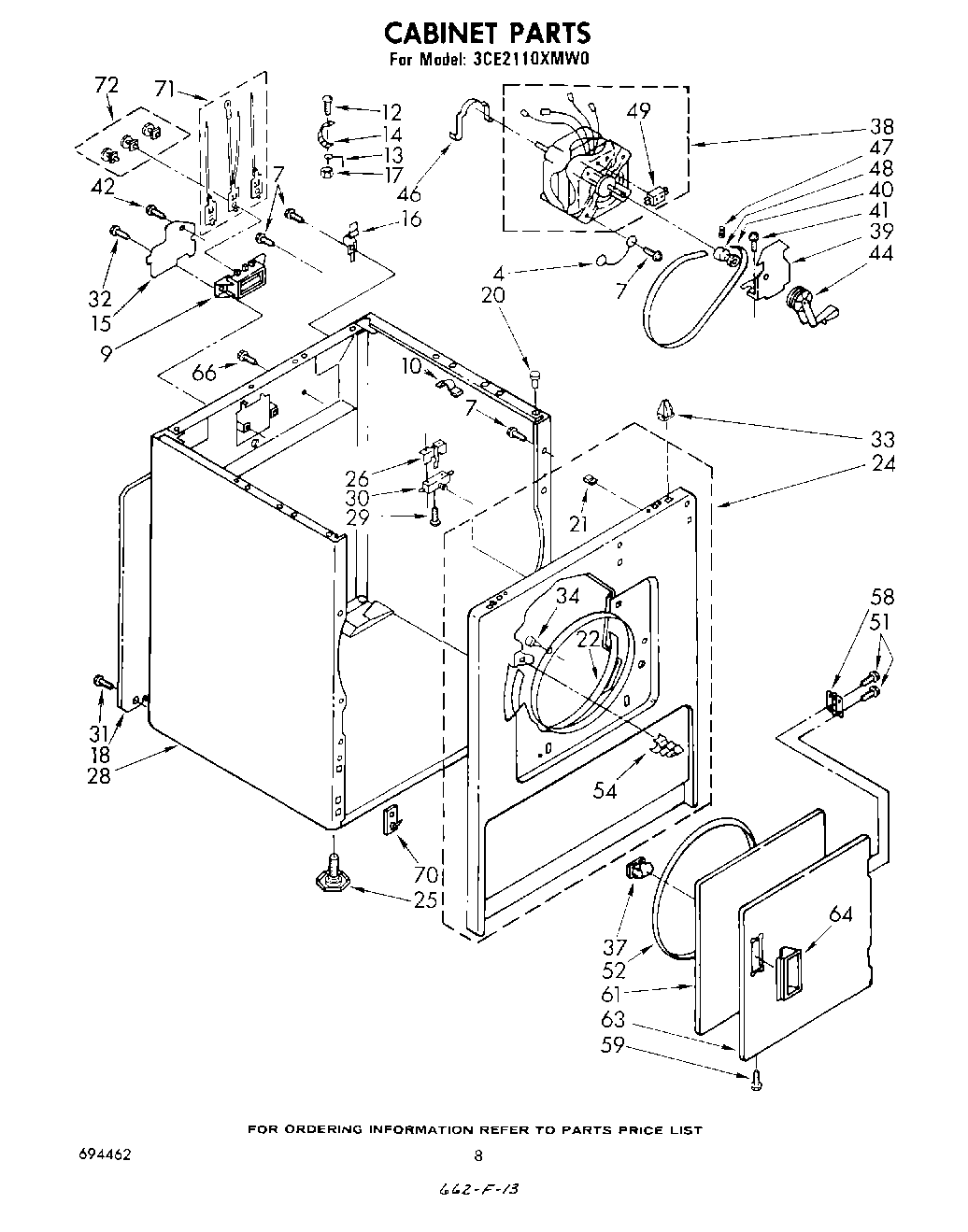

3CE2110XMW0 06 – CABINET

Products

Position	Product
4	Wire, Ground (Motor)
7	SCREW
9	279320 Whirlpool Dryer Rear Terminal Block Kit
10	8528351 Whirlpool Clip
12	Screw, Ground (10-24 x 1)
13	WPL 685449
14	Strap, Ground
15	W11736322 Whirlpool Cover Assembly
16	WP8066217 Whirlpool Hinge
17	W10080180 Whirlpool Nut
18	Panel, Rear
20	Locator, Top
21	WP98234 Whirlpool Nut
22	279264 Whirlpool Bearing and Seal Kit
24	Front Panel (White)
25	49621 Whirlpool Leveling Feet
26	WP691581 Whirlpool Actuator
28	Cabinet (White)
29	WP98129 Whirlpool Screw
30	W10820036 Whirlpool Door Switch Kit
31	WP489069 Whirlpool Compactor Screw
32	WP308685 Whirlpool Microwave Screw
33	WP18776 Whirlpool Lock
34	279220 Whirlpool Clip
37	279570 Whirlpool Dryer Door Latch Kit
39	WP348780 Whirlpool Base
40	341241 Whirlpool Dryer Drum Belt
41	3400500 Whirlpool Screw
44	WP691366 Whirlpool Dryer Idler Pulley Assembly
46	WP660658 Whirlpool Clamp
47	SCREW, SET
48	W11618508 Whirlpool Drive Motor
49	279827 Whirlpool Dryer Drive Motor
52	W11613302 Whirlpool Door Seal
58	WP348023 Whirlpool Hinge
59	WP694091 Whirlpool Screw
61	280077 Whirlpool Door
63	WP348205 Whirlpool Door
64	WP686711 Whirlpool Door Handle
70	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
71	279318 Whirlpool Terminal
72	279393 Whirlpool Terminal Block Screw and Nut Kit
