3CE2910XSN0 03 – SECTION

3CE2910XSN0 03 – SECTION

Written by

in

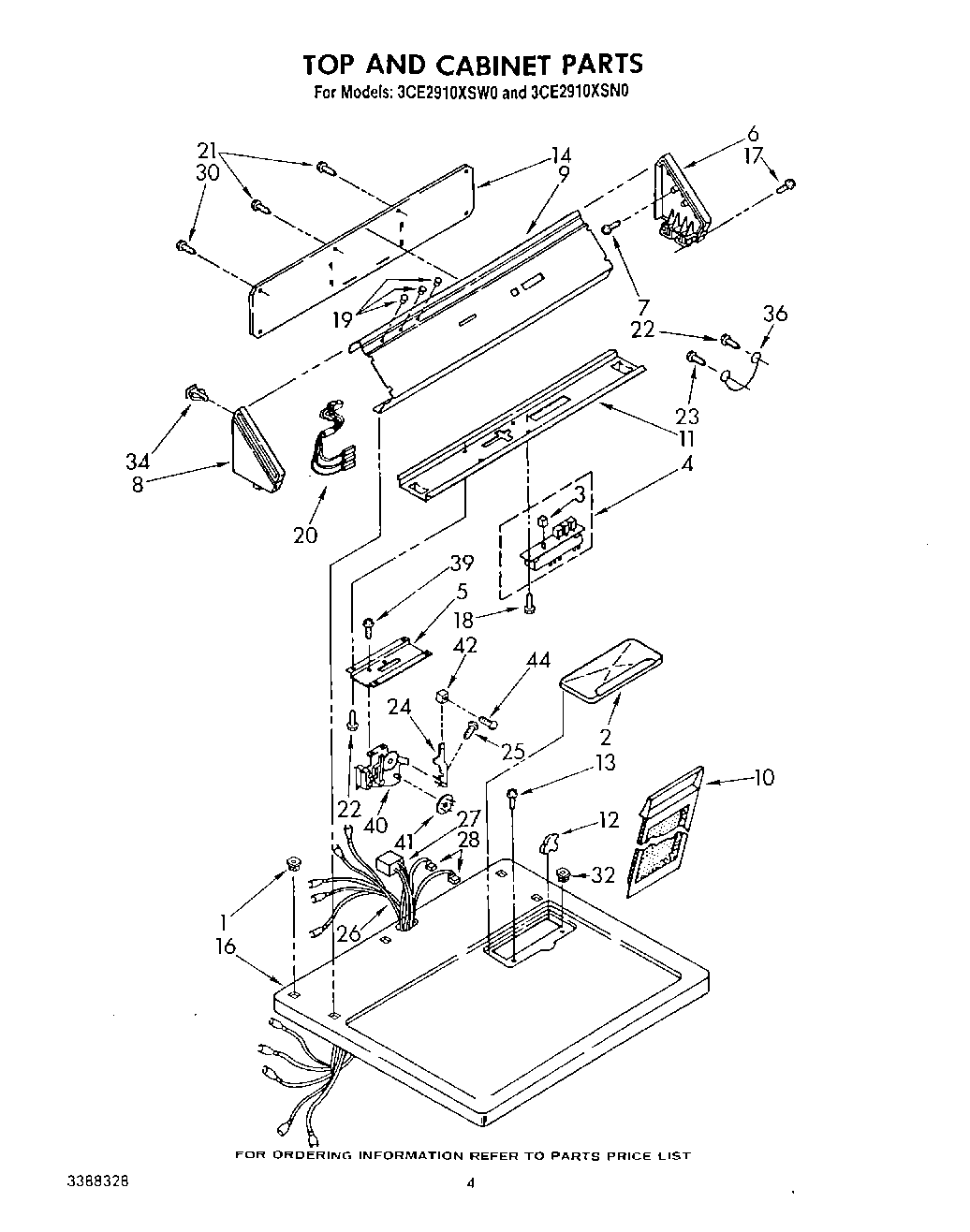

3CE2910XSN0 03 – SECTION

Products

PositionProduct
1Stop, Push-In Top
2Cover, Lint Screen (White)
2Cover, Lint Screen (Almond)
3Button (4)
4Switch, Pushbutton
5Control, Bracket
6WPL 63795
7WPL 355326
8Cap, End (L.H.)
9Panel, Control
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Panel, Rear
16Top (Almond)
16Top (White)
17WPL 64211
18WP965173 Whirlpool Dishwasher Screw
19WP3348109 Whirlpool Light Lens
20Lights, Indicator (240 Volts)
21WP693995 Whirlpool Screw
22SCREW
24Lever, Timer
25Screw Mou
26Harness, Wiring
27Plug, Terminal (6 Way)
28Connector, Receptacle
30WP489069 Whirlpool Compactor Screw
3298460 Whirlpool Nut
34WP689559 Whirlpool Nut
36Wire, Ground
39303776 Whirlpool Dishwasher Screw
40Timer, 50 Hz. (Incl. 4 Pin Cam)
41WP343777 Whirlpool Cam
41WP339855 Whirlpool Cam
41WP3387974 Whirlpool Cam
42Pushbutton (5)
44Screw
44Wire, 25` Roll (Blue 16 Ga.)
