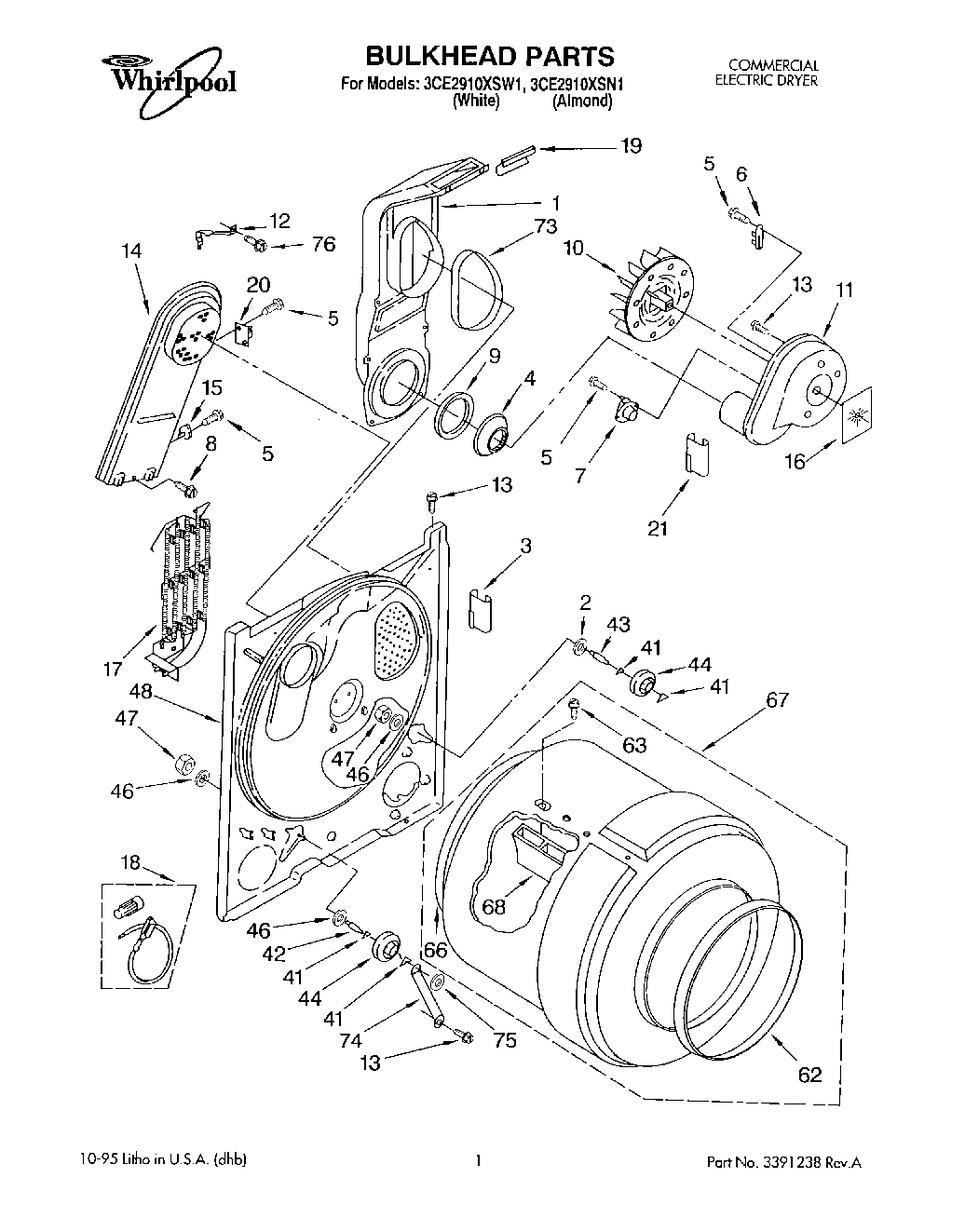

3CE2910XSN1 01 – SECTION

3CE2910XSN1 01 – SECTION

3CE2910XSN1 01 – SECTION

Products

PositionProduct
List, Ser
Golden Harvest
Golden Harvest (Uncut)
WPL LIT348772
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Spray 13 Oz. (Avocado)
Label, Wiring Diagram
Enamel, New Avocado (1 Qt. Uncut)
WPL LIT687458
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
1279505 Whirlpool Chute
2WP3388703 Whirlpool Washer
4W11233063 Whirlpool Shield Assembly
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387137 Whirlpool Thermostat
8SCREW
9W11415783 Whirlpool Seal
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
14Box, Heater
15279054 Whirlpool Dryer High Limit Thermostat L290 3W
16Seal, Blower
17Element, Heater
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
20279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
21686889 Whirlpool Pad
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
76WP489463 Whirlpool Refrigerator Screw
