3CE2910XSN1 03 – SECTION

3CE2910XSN1 03 – SECTION

Written by

in

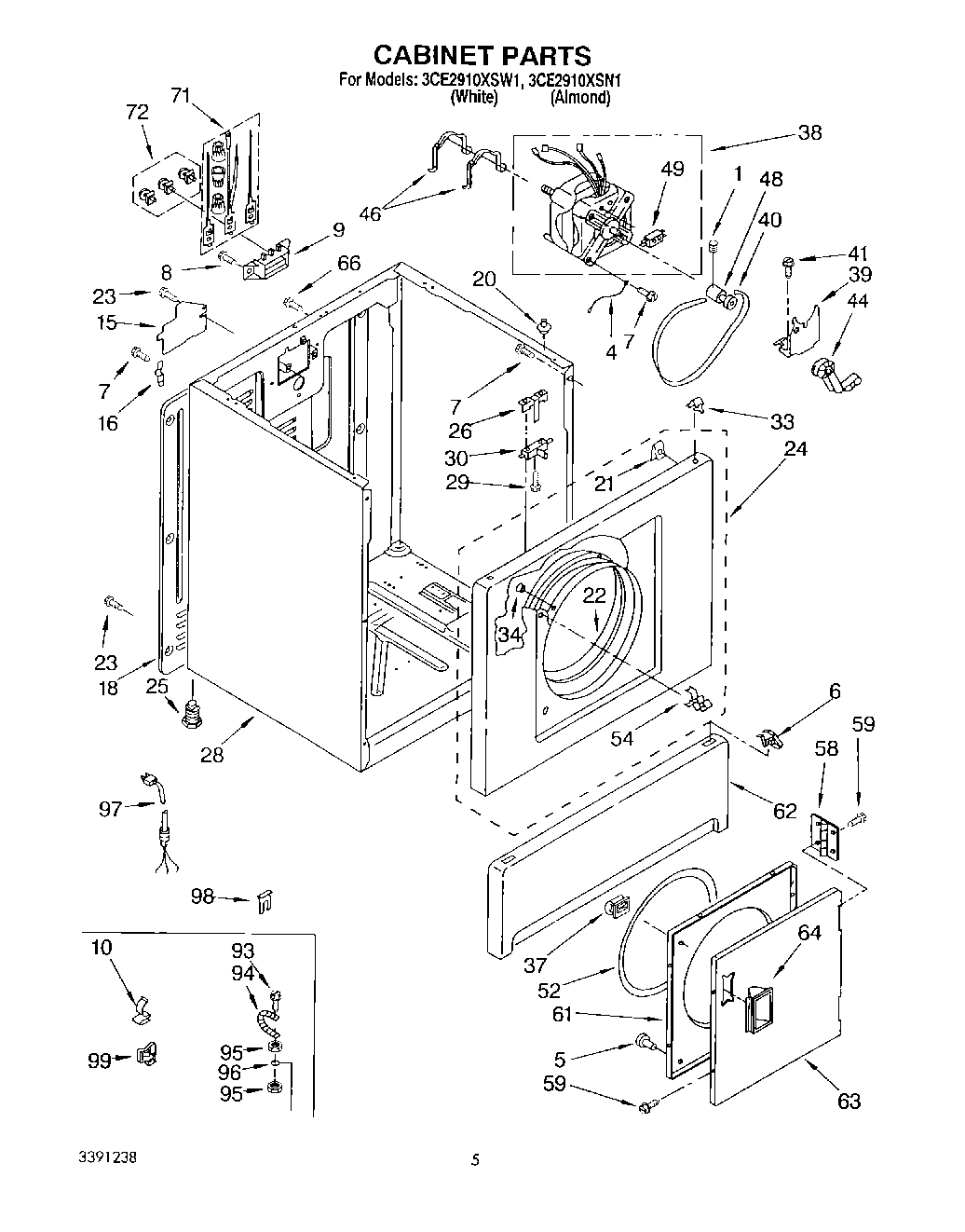

3CE2910XSN1 03 – SECTION

Products

PositionProduct
1SCREW, SET
4Wire, Ground (Motor)
5238614 Whirlpool Bumper Hinge
6WP3388229 Whirlpool Dryer Spring Clip
7SCREW
8WP308685 Whirlpool Microwave Screw
9279320 Whirlpool Dryer Rear Terminal Block Kit
108528351 Whirlpool Clip
15W11539855 Whirlpool Refrigerator Pump
16WP8066217 Whirlpool Hinge
18280040 Whirlpool Rear Panel
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
23WP489069 Whirlpool Compactor Screw
24Upper Front Panel Assembly (Almond)
24Front Panel Assembly (White)
2549621 Whirlpool Leveling Feet
26WP691581 Whirlpool Actuator
28Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
28Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
37WP3389441 Whirlpool Door Catch
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48W11618508 Whirlpool Drive Motor
49279827 Whirlpool Dryer Drive Motor
52W11613302 Whirlpool Door Seal
54279570 Whirlpool Dryer Door Latch Kit
58WP348023 Whirlpool Hinge
59WP694091 Whirlpool Screw
61280077 Whirlpool Door
62Panel, Toe (Almond)
62Panel, Toe (White)
63WP348205 Whirlpool Door
63Door, Front (Almond)
64WP686711 Whirlpool Door Handle
64Handle, Door (Almond)
71279318 Whirlpool Terminal
72279393 Whirlpool Terminal Block Screw and Nut Kit
93Screw, Ground (10-24 x 1)
94Strap, Ground
95W10080180 Whirlpool Nut
96WPL 685449
97Cord, Power
98W11712577 Whirlpool Clip
99Clip, Harness (Rear Bulkhead Area)
