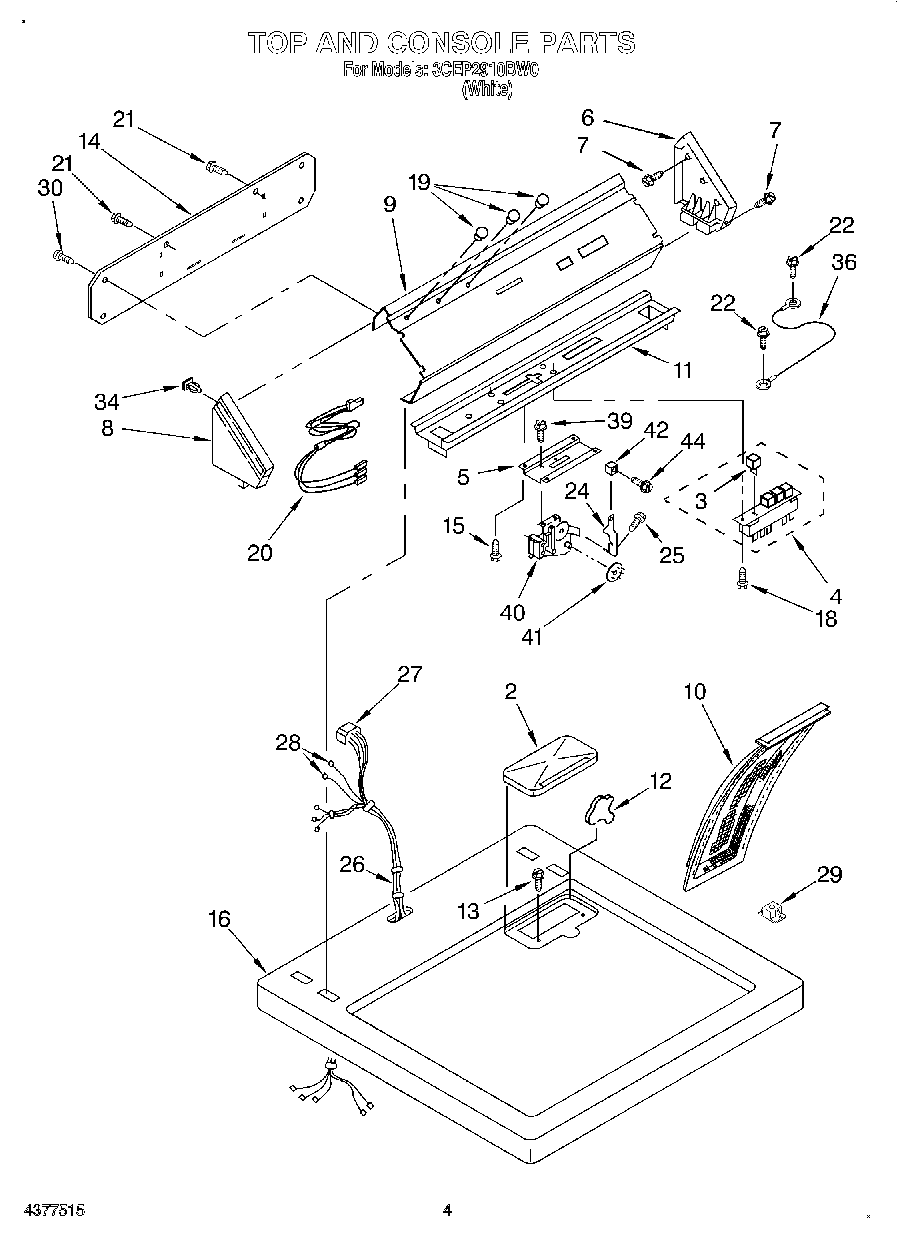

3CEP2910BW0 03 – TOP AND CONSOLE

Products

Position	Product
2	Cover, Lint Screen (White)
3	Button (4)
4	Switch, Pushbutton
5	Control, Bracket
6	WPL 63795
7	WPW10109200 Whirlpool Screw
8	Cap, End (L.H.)
9	Panel, Control
10	339392V Whirlpool Dryer Lint Filter Screen
11	Bracket, Control
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WP90767 Whirlpool Screw
16	Top (White)
18	WP965173 Whirlpool Dishwasher Screw
19	WP3348109 Whirlpool Light Lens
20	Lights, Indicator (240 Volts)
22	SCREW
24	Lever, Timer
25	Screw Mou
26	Harness, Wiring
27	353424 Whirlpool Connector
28	Connector, Receptacle
29	Locator, Top
30	WP693995 Whirlpool Screw
34	WP689559 Whirlpool Nut
36	Wire, Ground
39	303776 Whirlpool Dishwasher Screw
40	Timer, 50 Hz. (Incl. 4 Pin Cam)
41	WP343777 Whirlpool Cam
41	WP339855 Whirlpool Cam
41	WP3387974 Whirlpool Cam
42	Pushbutton (5)
44	Wire, 25` Roll (Blue 16 Ga.)
44	Screw
